Prepare Complete Rear Fender For Installation - Ar63.50-P-1401-02LF

Model 222.0

Model 222.1/9

except code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

1. Model 222.0

   Model 222.1

   except code Z07 (B7 armoring on special protection version) Mark separating points on rear fender (1) and cut (areas A and B).

   Take separation points from vehicle.

   Shown on model 222.0

   Courtesy of MERCEDES-BENZ USA

2. Model 222.9

   except code Z07 (B7 armoring on special protection version) Mark separating points on rear fender (1) and cut (areas F, E and G).

   Take separation points from vehicle.

   Courtesy of MERCEDES-BENZ USA

3. Model 222.9

   except code Z07 (B7 armoring on special protection version) Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

4. Model 222.9

   except code Z07 (B7 armoring on special protection version) Remove grinding dust.

5. Model 222.9

   except code Z07 (B7 armoring on special protection version)

   Courtesy of MERCEDES-BENZ USA

   Coat insides of spot weld flanges with zinc dust paint.

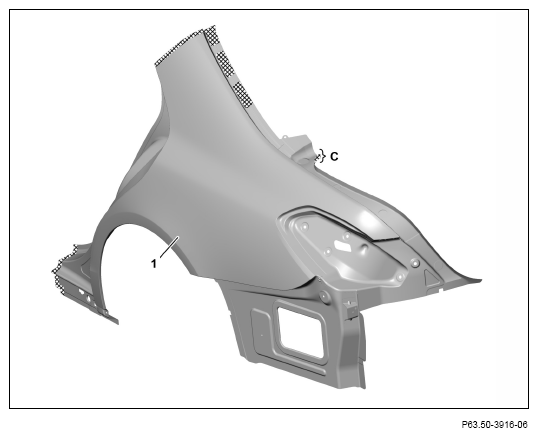

6. Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

7. Remove grinding dust.
8. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (area C).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

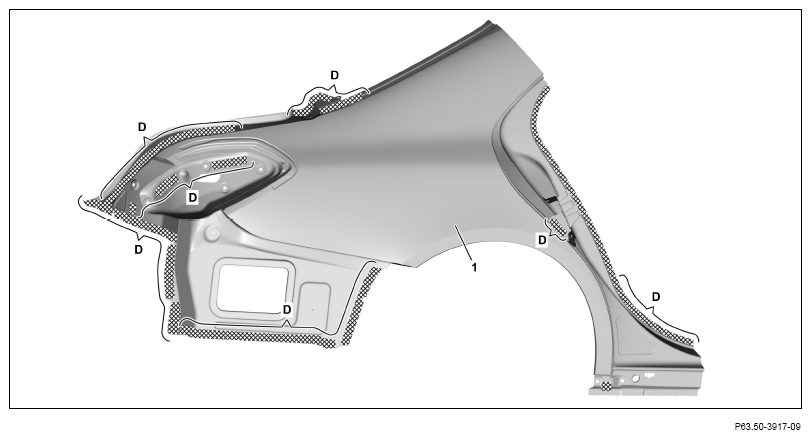

   Rear fender (1), inside, shown on MODEL 222.0

9. Grind mating surfaces on rear fender (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

10. Remove grinding dust.
11. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas D).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
