Install Rear Inner Wheel Well - Ar63.10-P-0670-04LF

Model 222

except code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

1. Install inner rear wheel well (1) with straightening tool, fit and fix in place.

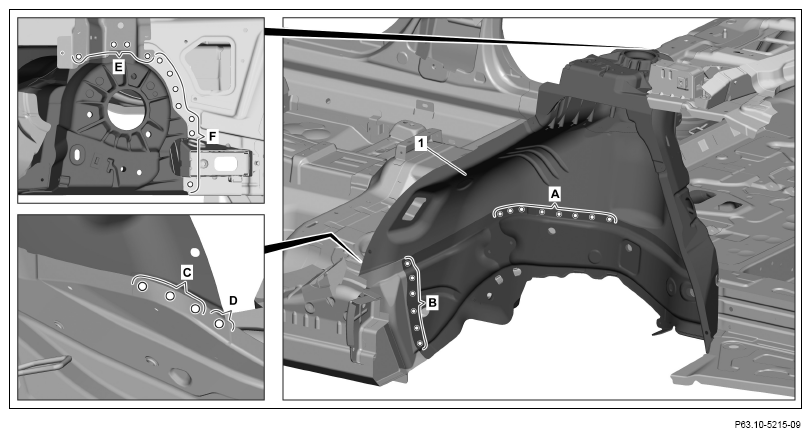

2. Drill dia 6.7 mm rivet holes in inner rear wheel well (1) (areas A, B, C, D and F).

   Drill rivet holes through present holes in body (areas C and D).

   Drill rivet hole (area D) only after installing C-pillar side wall.

3. Drill dia 6.7 mm rivet holes in inner rear wheel well (1) (area E).

   Only if a riveter for punching and flow form rivets is not used for installation.

   Drill rivet holes through present holes in body.

4. Remove inner rear wheel well (1).
5. Deburr rivet holes on inner rear wheel well (1) and body on both sides.
6. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

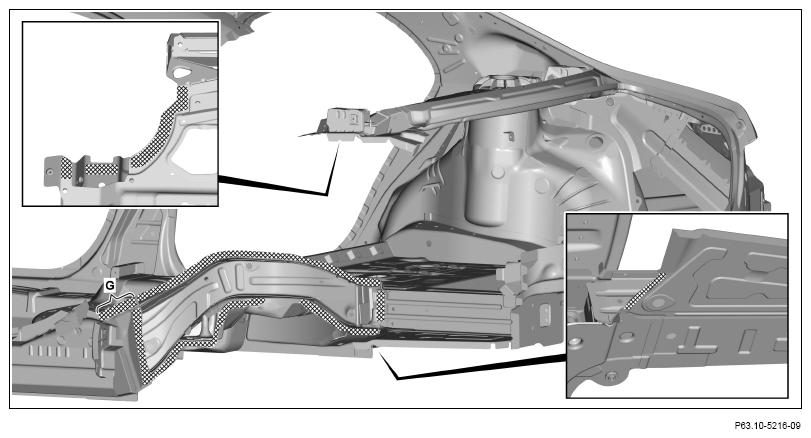

7. Apply 2-component in crosshatched areas to inner rear wheel well (1).

   Apply 2-component adhesive to inside (area G).

   Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

   Courtesy of MERCEDES-BENZ USA

8. Install inner rear wheel well (1) with straightening tool and fix in place.

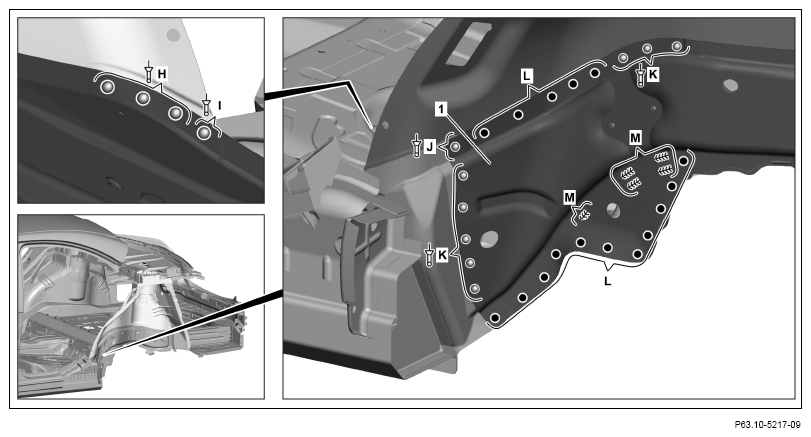

9. Drill inner rear wheel well (1) with Ø 6.5x12.5 rivets (areas H and K).
10. Rivet inner rear wheel well (1) with Ø 6.5x14.5 rivets (areas I and J).

    Rivet only after installing C-pillar side wall (area I).

11. Inner rear wheel well (1) (areas L).
12. Inner rear wheel well (1) (areas M).

    Courtesy of MERCEDES-BENZ USA

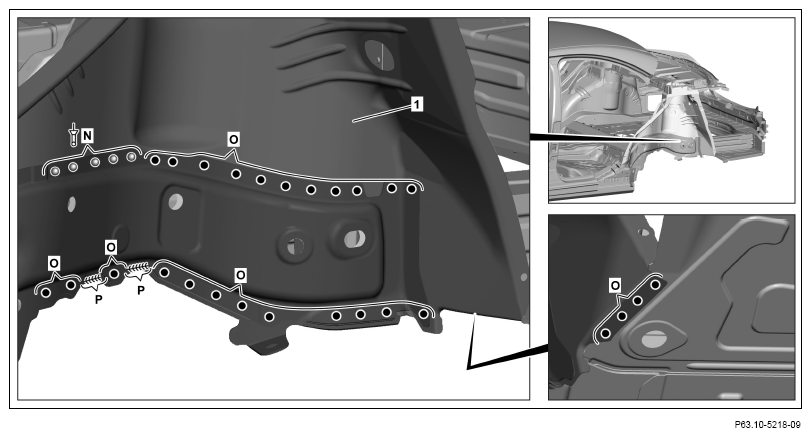

13. Rivet inner rear wheel well (1) with Ø 6.5x12.5 rivets (area N).
14. Inner rear wheel well (1) (areas O).
15. Inner rear wheel well (1) (areas P).

    Courtesy of MERCEDES-BENZ USA

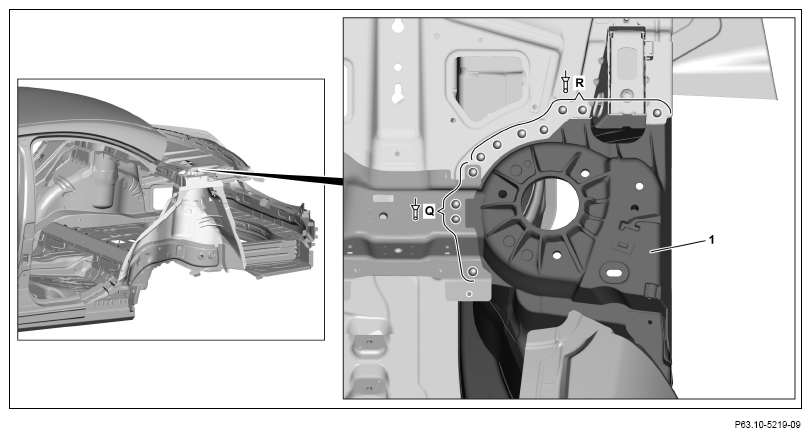

16. Rivet inner rear wheel well (1) with Ø 6.5x12.5 rivets (area Q).

    Flow form rivets with a clamping range of 4 mm to 5.15 "S3" can be used, if a riveter for punching and flow form rivets is used for installation (area Q).

17. Rivet inner rear wheel well (1) with Ø 6.5x14.5 rivets (area R).

    Courtesy of MERCEDES-BENZ USA

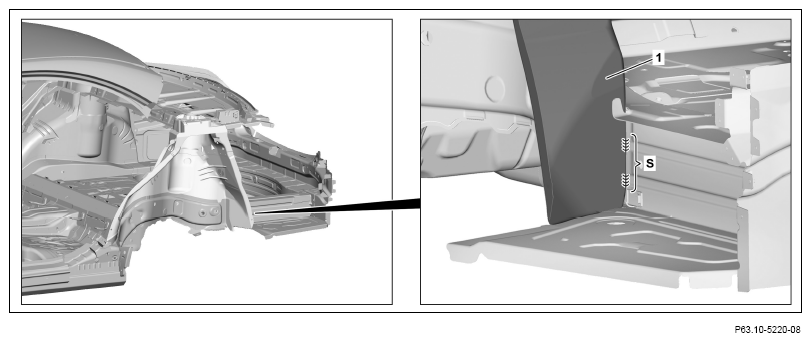

18. Inner rear wheel well (1) (area S).
19. Install backrest support (2), fit and fix in place.

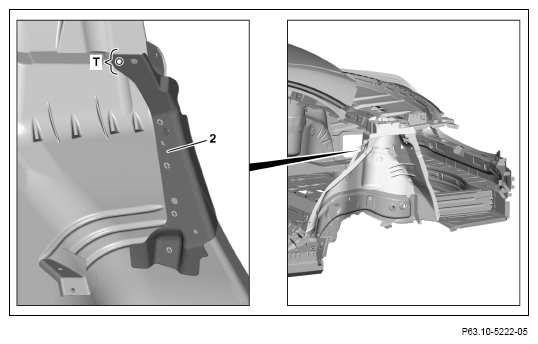

20. Drill Ø 6.7 mm rivet hole in backrest support (2) (area T).
21. Remove backrest support (2).
22. Deburr rivet hole on backrest support (2) and deburr on body on both sides.
23. Remove drilling chips.

    Courtesy of MERCEDES-BENZ USA

24. Install backrest support (2) and fix in place.
25. Rivet backrest support (2) with Ø 6.5x12.5 rivets (area U).
26. Backrest support (2) (area V).

Courtesy of MERCEDES-BENZ USA
