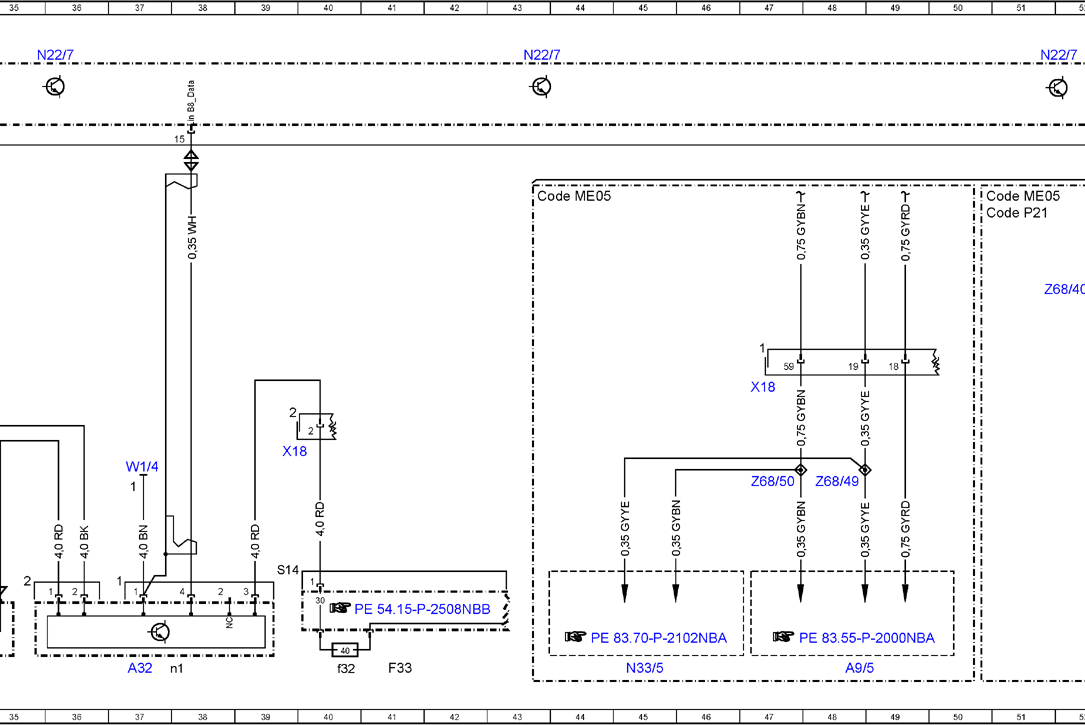

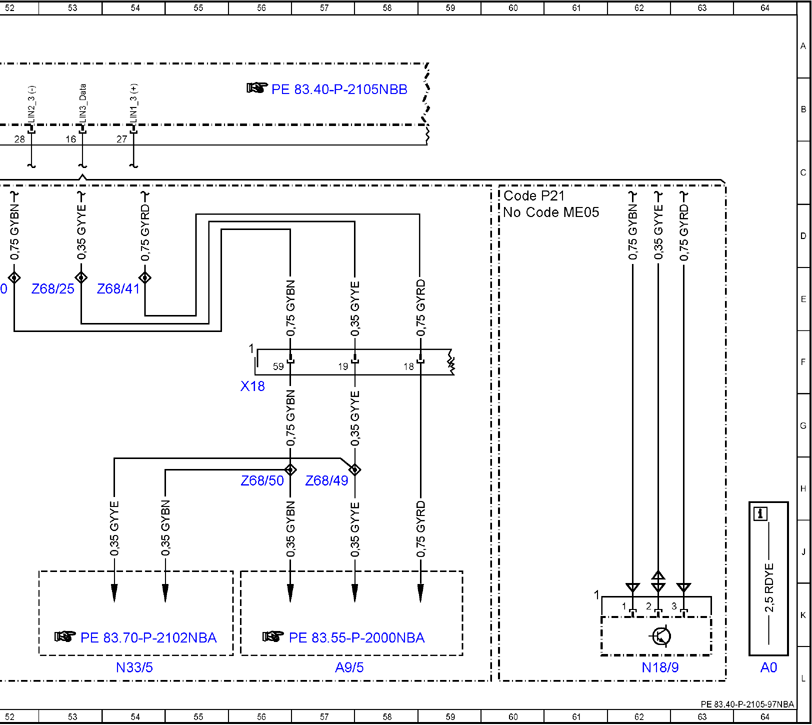

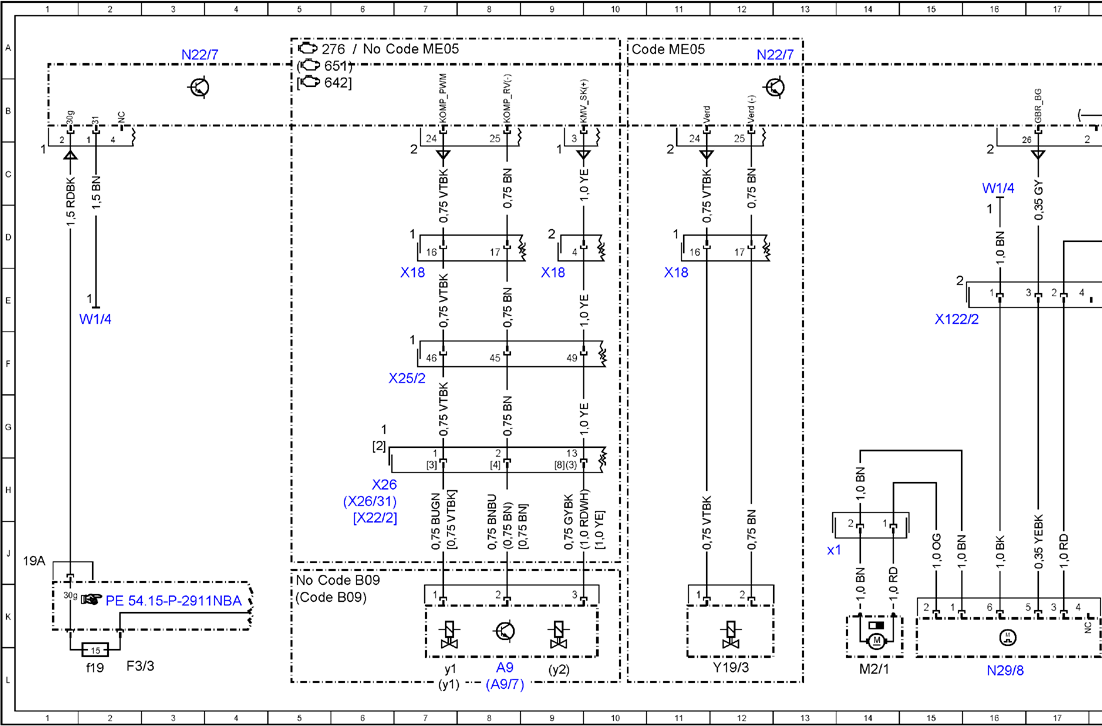

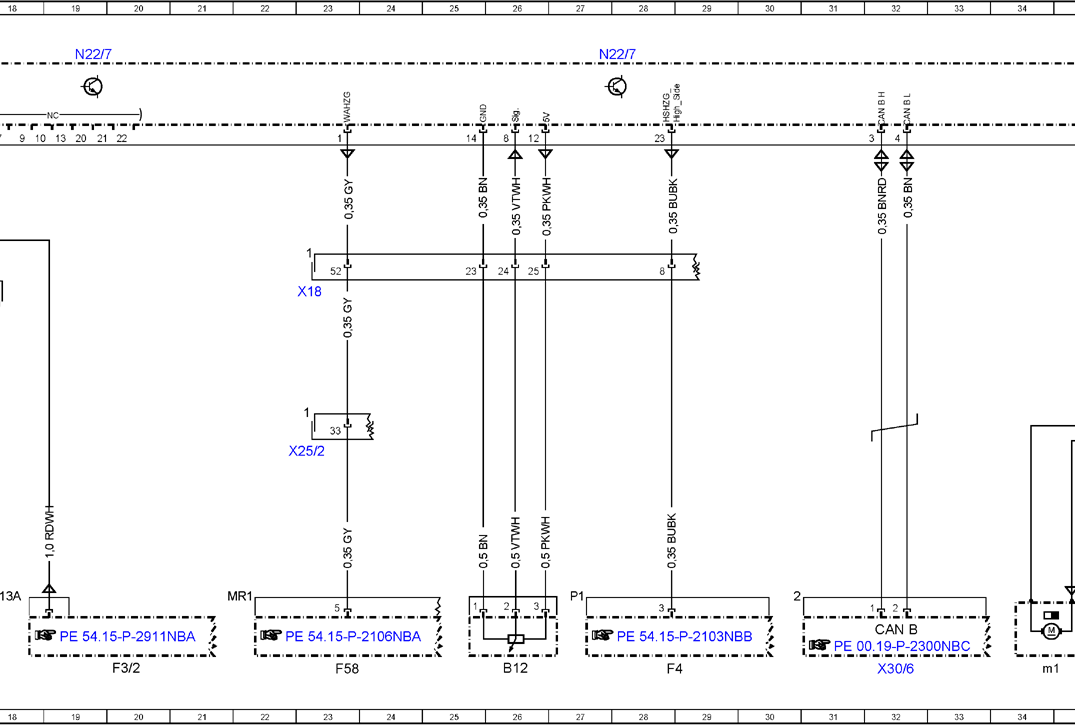

Wiring Diagram For Thermotronic Automatic Air Conditioning (AAC (KLA)) - PE83.40-P-2105-97NBA
Model 166 as of model year 2016 with code 581 (Automatic air conditioning) Control unit N22/7, sheet 1
Model 292 with code 581 (Automatic air conditioning) Control unit N22/7, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 64L |
| A32 | AC housing | 37L |
| A32m1 | Blower motor | 34L |
| A32n1 | Blower regulator | 38L |
| A9 | Refrigerant compressor | 8L |
| A9/5 | Electric refrigerant compressor | 48L |
| A9/5 | Electric refrigerant compressor | 57L |
| A9/7 | Refrigerant compressor with magnetic clutch | 8L |
| A9/7y1 | Refrigerant compressor regulation valve | 7L |
| A9/7y2 | Refrigerant compressor magnetic clutch | 9L |
| A9y1 | Refrigerant compressor regulation valve | 7L |
| B12 | Refrigerant pressure sensor | 26L |
| CAN B | Interior CAN | 32K |
| Code B09 | Refrigerant compressor with magnetic clutch | 5K |
| Code B09 | Refrigerant compressor with magnetic clutch | 5K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 10A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 43C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 50C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 6A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 60D |
| Code P21 | AIR-BALANCE package | 50D |
| Code P21 | AIR-BALANCE package | 60C |
| F3/2 | Cockpit circuit 30 fuse box | 20L |
| F3/3 | Cockpit circuit 30g fuse box | 2L |
| F3/3f19 | Fuse 19 | 2L |
| F33 | Battery compartment prefuse box | 41L |
| F33f32 | Fuse 32 | 40L |
| F4 | Rear fuse box | 28L |
| F58 | Engine compartment fuse and relay module | 23L |
| M2/1 | Rear blower motor | 14L |
| M2/1x1 | Rear blower motor electrical connector | 13J |
| N18/9 | Driver side air vent ionizer | 62L |
| N22/7 | Automatic air conditioning control and operating unit | 3A |
| N22/7 | Automatic air conditioning control and operating unit | 12A |
| N22/7 | Automatic air conditioning control and operating unit | 51A |
| N22/7 | Automatic air conditioning control and operating unit | 19A |
| N22/7 | Automatic air conditioning control and operating unit | 27A |
| N22/7 | Automatic air conditioning control and operating unit | 36A |
| N22/7 | Automatic air conditioning control and operating unit | 43A |
| N29/8 | Booster blower electronic blower controller | 16L |
| N33/5 | High-voltage PTC heater | 45L |
| N33/5 | High-voltage PTC heater | 54L |
| W1/4 | Cockpit ground point | 2E |
| W1/4 | Cockpit ground point | 16C |
| W1/4 | Cockpit ground point | 37H |
| X122/2 | Rear air conditioning electrical connector | 15E |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 7E |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 11E |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 23E |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 39G |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 9E |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 47F |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 56F |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 6J |
| X25/2 | Engine compartment/vehicle interior electrical connector | 7F |
| X25/2 | Engine compartment/vehicle interior electrical connector | 23G |
| X26 | Interior and engine wiring harness electrical connector | 6H |
| X26/31 | Engine/engine compartment electrical connector | 6H |
| X30/6 | Cockpit potential distributor electrical connector (CAN) | 32L |
| Y19/3 | Front evaporator shutoff valve | 12L |
| Z68/25 | Local Interconnect Network 3 (A/C) data connector sleeve | 53E |
| Z68/40 | LIN2 and LIN3 connector sleeve (ground connection) | 52E |
| Z68/41 | LIN2 and LIN3 connector sleeve (terminal 30) | 54E |
| Z68/49 | Vehicle interior A/C LIN 3 data line connector sleeve | 48H |
| Z68/49 | Vehicle interior A/C LIN 3 data line connector sleeve | 57H |
| Z68/50 | Vehicle interior LIN 2 and LIN 3 ground line connector sleeve | 47H |
| Z68/50 | Vehicle interior LIN 2 and LIN 3 ground line connector sleeve | 56H |
