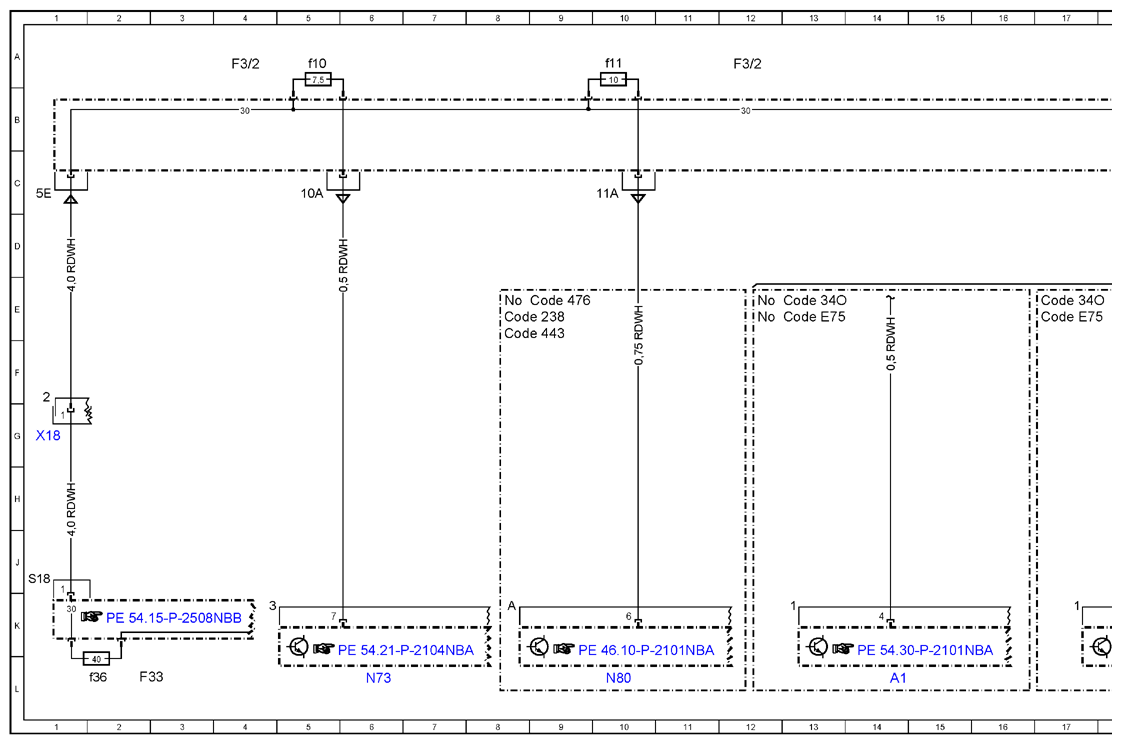

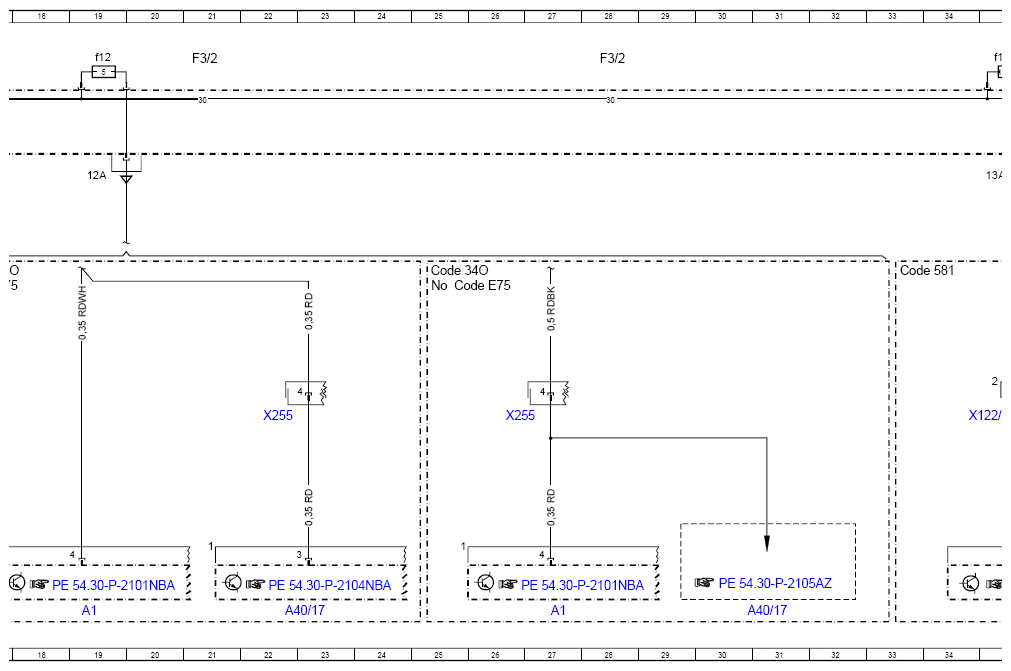

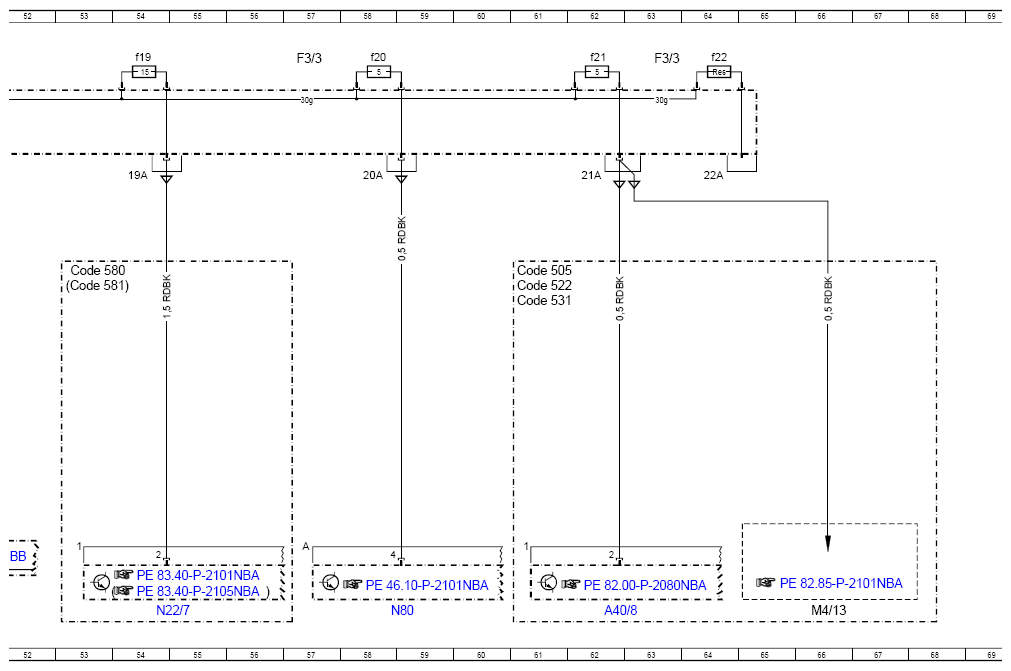

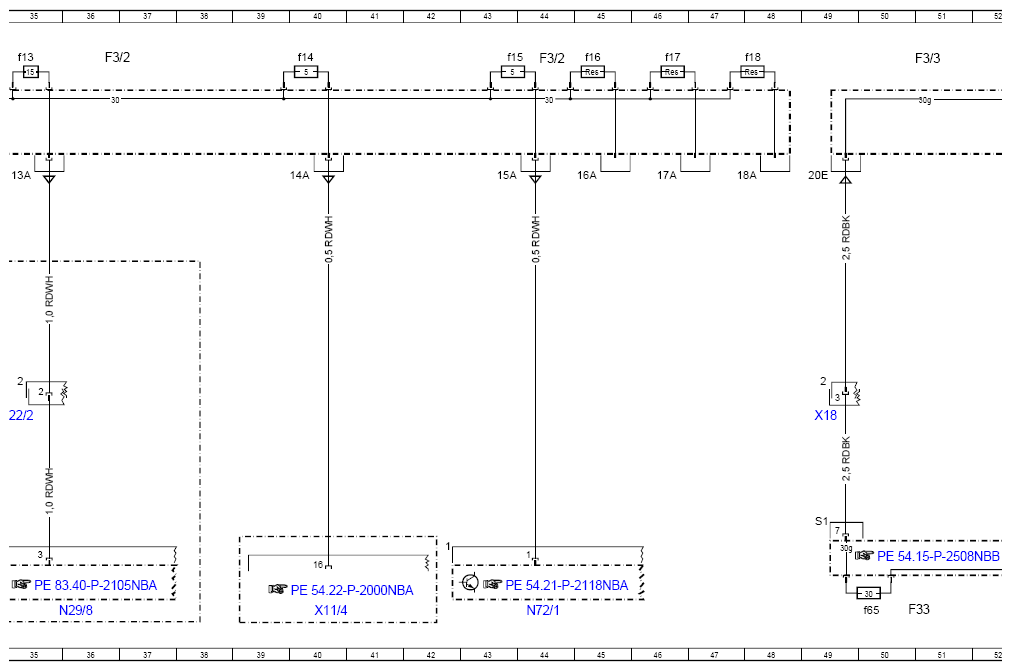

Wiring Diagram For Cockpit Fuse Box - PE54.15-P-2911-97NBA
Model 166 as of model year 2016 Fuse box F3/2, F3/3
Model 292 Fuse box F3/2, F3/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A1 | Instrument cluster | 19L |
| A1 | Instrument cluster | 14L |
| A1 | Instrument cluster | 27L |
| A40/17 | Head-up display, retrofit | 22L |
| A40/17 | Head-up display, retrofit | 31L |
| A40/8 | Audio/COMAND display | 62L |
| Code 238 | Active Lane Keeping Assist | 8E |
| Code 34O | Frontal display accessory (head-up display) | 17E |
| Code 34O | Frontal display accessory (head-up display) | 25E |
| Code 34O | Frontal display accessory (head-up display) | 13E |
| Code 443 | Steering wheel heater | 8E |
| Code 476 | Lane Keeping Assist | 9E |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 61E |
| Code 522 | Audio 20 radio | 61E |
| Code 531 | COMAND APS | 61E |
| Code 580 | Air conditioning | 53E |
| Code 581 | Automatic air conditioning | 33E |
| Code 581 | Automatic air conditioning | 53E |
| Code E75 | Head-up display | 17E |
| Code E75 | Head-up display | 13E |
| Code E75 | Head-up display | 25E |
| F3/2 | Cockpit circuit 30 fuse box | 36A |
| F3/2 | Cockpit circuit 30 fuse box | 4A |
| F3/2 | Cockpit circuit 30 fuse box | 12A |
| F3/2 | Cockpit circuit 30 fuse box | 21A |
| F3/2 | Cockpit circuit 30 fuse box | 28A |
| F3/2 | Cockpit circuit 30 fuse box | 44A |
| F3/2f10 | Fuse 10 | 5A |
| F3/2f11 | Fuse 11 | 10A |
| F3/2f12 | Fuse 12 | 19A |
| F3/2f13 | Fuse 13 | 35A |
| F3/2f14 | Fuse 14 | 40A |
| F3/2f15 | Fuse 15 | 43A |
| F3/2f16 | Fuse 16 | 45A |
| F3/2f17 | Fuse 17 | 46A |
| F3/2f18 | Fuse 18 | 48A |
| F3/3 | Cockpit circuit 30g fuse box | 51A |
| F3/3 | Cockpit circuit 30g fuse box | 57A |
| F3/3 | Cockpit circuit 30g fuse box | 63A |
| F3/3f19 | Fuse 19 | 54A |
| F3/3f20 | Fuse 20 | 58A |
| F3/3f21 | Fuse 21 | 62A |
| F3/3f22 | Fuse 22 | 64A |
| F33 | Battery compartment prefuse box | 2L |
| F33 | Battery compartment prefuse box | 50L |
| F33f36 | Fuse 36 | 2L |
| F33f65 | Fuse 65 | 50L |
| M4/13 | COMAND fan motor | 66L |
| N22/7 | Automatic air conditioning control and operating unit | 54L |
| N29/8 | Booster blower electronic blower controller | 36L |
| N72/1 | Upper control panel control unit | 44L |
| N73 | Electronic ignition switch control unit | 6L |
| N80 | Steering column module control unit | 10L |
| N80 | Steering column module control unit | 58L |
| X11/4 | Diagnostic connector | 40L |
| X122/2 | Rear air conditioning electrical connector | 35G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 1G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 49G |
| X255 | Instrument cluster and head-up display electrical connector | 22G |
| X255 | Instrument cluster and head-up display electrical connector | 26G |
