Prepare Main Floor, Inner Longitudinal Member And Seat Consoles - Ar63.40-P-1180-21GZ

Model 164, 166, 292

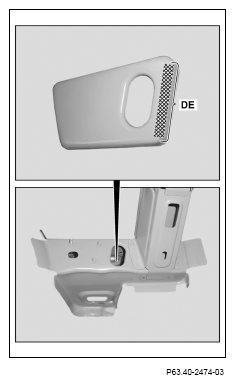

1. Grind connection surfaces down to bare metal in cross-hatched area (area DE).
2. Remove shavings and drill chips.

   Shown on model 164.8

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Shown on model 164.8

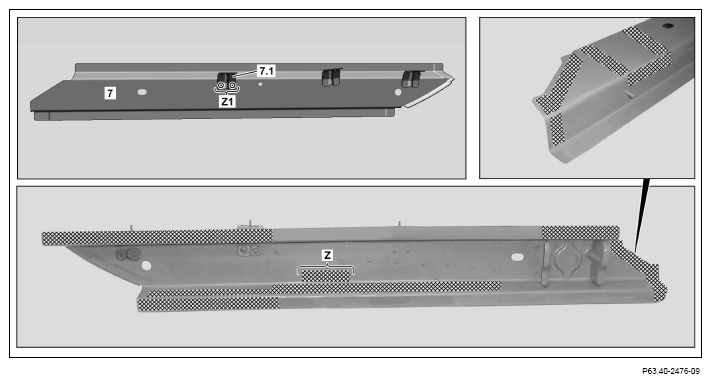

3. Expose spot welds on inner longitudinal member (7) and cut out (area Z1).
4. Remove the bracket (7.1).

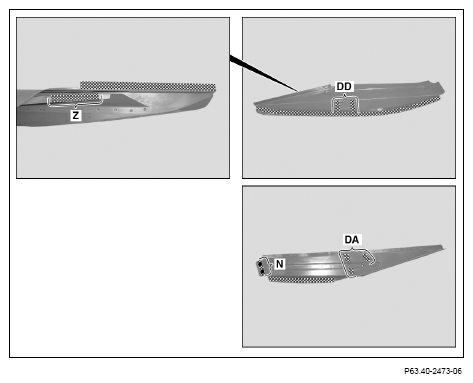

5. Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.

   Sand down spot weld flanges to bare metal on both sides.

6. Remove shavings and drill chips.
7. Coat insides of spot welding flanges with zinc dust paint.
8. Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.

   Sand down spot weld flanges to bare metal on both sides.

9. Remove shavings and drill chips.
10. Coat insides of spot welding flanges with zinc dust paint.

    Shown on model 164.8

    Courtesy of MERCEDES-BENZ USA

11. Grind connection surfaces down to bare metal in cross-hatched area.

    Sand down spot weld flanges to bare metal on both sides.

12. Remove shavings and drill chips.
13. Coat insides of spot welding flanges with zinc dust paint.

    Shown on model 164.8

    Courtesy of MERCEDES-BENZ USA
