Brake System - Inspect Fluid Level - AP42.10-P-4210GZ

Model 164, 166, 292

Courtesy of MERCEDES-BENZ USA

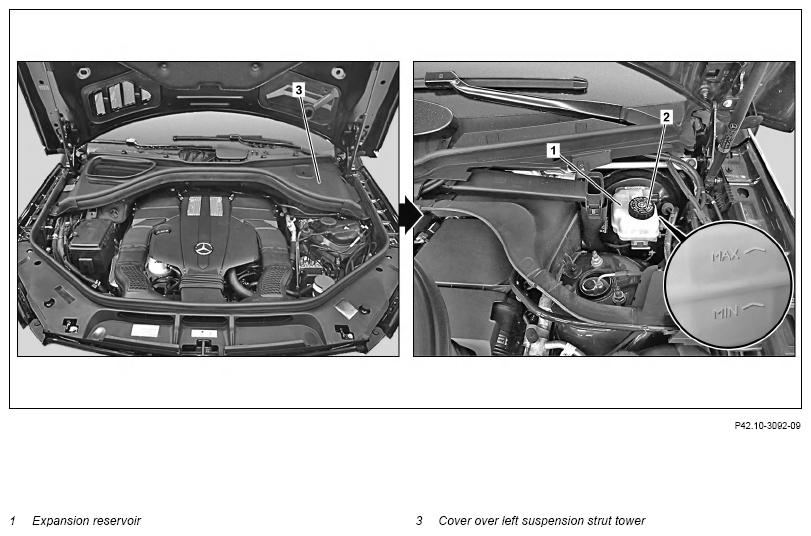

Shown in model 292

Courtesy of MERCEDES-BENZ USA

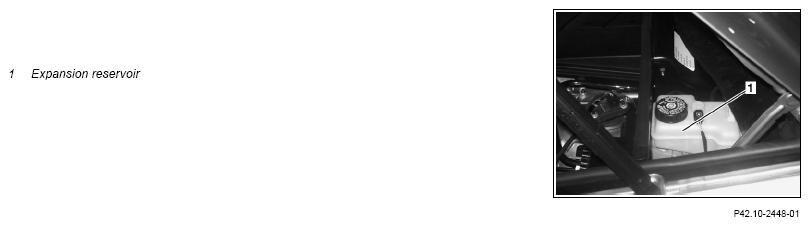

Shown in model 164

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Check
1	Remove cover over left suspension strut tower (3)	Model 166, 292
2	Check fluid level in expansion reservoir (1)
	General brake fluid		BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)	The fluid level must be between the "Min." and "Max." markings on the expansion reservoir (1). If the fluid level is too low: ↓ Rectify problem subject to separate repair order. If the fluid level is too high: ↓ Extract brake fluid until the fluid level is at the "Max." mark.	BB00.40-P-0331-00A
3	Install cover over left suspension strut tower (3)	Model 166, 292
