Install And Weld In Outer A-Pillar With Side Longitudinal Member - Ar63.20-P-1150-04GQ

Model 166, 292

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

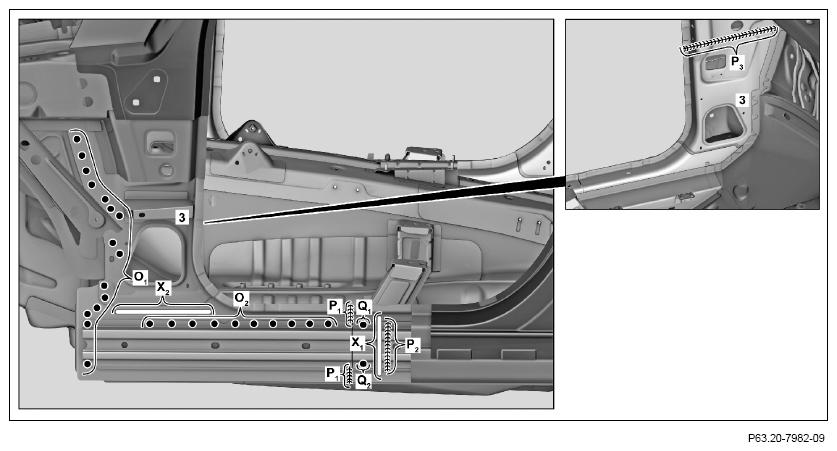

Shown on model 166.0

1. Install A-pillar inner section (3), fit and fix in place.
2. A-pillar inner section (3) (areas P₁ , P₂ and P₃ ).
3. A-pillar inner section (3) (areas O₁ , O₂ , Q₁ and Q₂ ).
4. Fit A-pillar reinforcement and remove A-pillar reinforcement.
5. Apply sealant to foam parts (areas X₁ and X₂ ).

   Apply sealant only after fitting A-pillar reinforcement.

   Courtesy of MERCEDES-BENZ USA

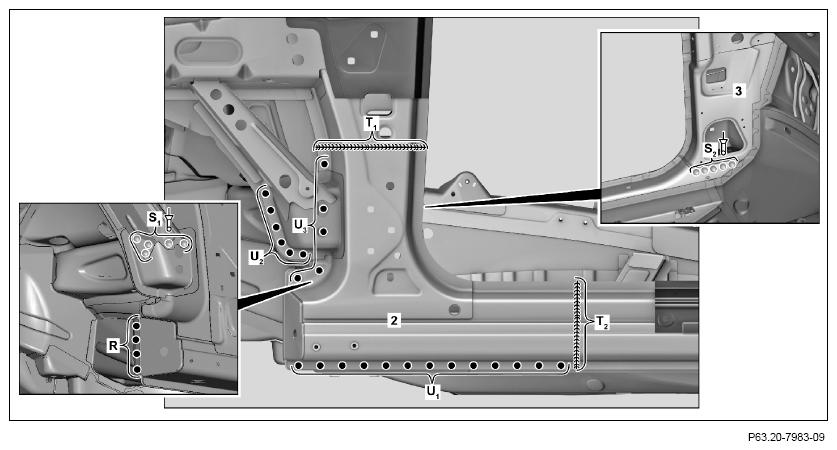

   Shown on model 166.0

6. Install A-pillar reinforcement (2), fit and fix in place.
7. Drill Ø 6.7 mm rivet holes in A-pillar reinforcement (2) and A-pillar inner section (3) (areas S₁ and S₂ ).
8. Remove A-pillar reinforcement (2).
9. Deburr rivet holes on A-pillar reinforcement (2) on both sides.
10. Coat insides of riveted joints with zinc dust paint.
11. Install A-pillar reinforcement (2), fit and fix in place.
12. Rivet A-pillar reinforcement (2) and A-pillar inner section (3) with Ø 6.5X12.5 blind rivet (areas S₁ and S₂ ).
13. A-pillar reinforcement (2) (areas R and U₁ , U₂ , U₃ ).
14. A-pillar reinforcement (2) (areas T₁ and T₂ ).
15. Grind weld seams on A-pillar reinforcement (2) down flat on mating surfaces (areas T₁ and T₂ ).
16. Install A-pillar outer paneling (1), fit and fix in place.
17. Drill Ø 6.7 mm rivet holes in A-pillar outer paneling (1) (area V).
18. Remove A-pillar outer paneling (1).
19. Deburr rivet holes on A-pillar outer paneling (1) on both sides.
20. Coat insides of riveted joints with zinc dust paint.

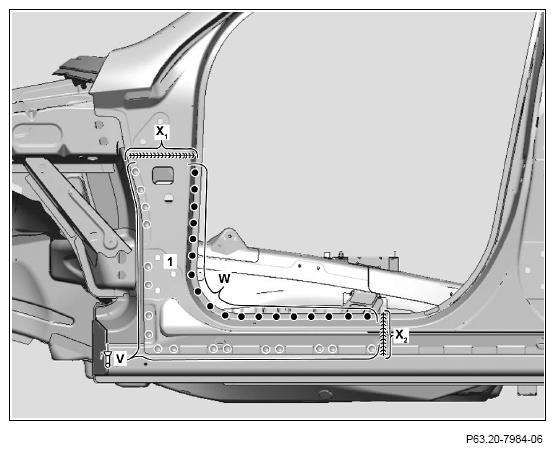

    Shown on model 166.0

    Courtesy of MERCEDES-BENZ USA

21. Install A-pillar outer paneling (1), fit and fix in place.
22. Rivet A-pillar outer paneling (1) with Ø 6.4X14 countersunk head rivet (area V).
23. A-pillar outer paneling (1) (area W).
24. A-pillar outer paneling (1) (areas X₁ and X₂ ).
25. Grind inert gas welds down flat.
26. Clean weld joints.
27. Solder surfaces on A-pillar outer paneling (1) in areas X₁ and X₂ with body solder.
28. Remove shavings and drill chips.
