Remove And Install Underbody Protection - Ar61.40-P-1000GQS
Model 166
With Code Z04 (Light Armoring)
| Risk Of Accident caused by vehicle starting off on its own when jacked up. Risk Of Injury caused by rotating parts when working on running engine or drive train. | Ensure that jack stands are in a safe condition An authorized person must occupy the driver's seat. Wear closed and close-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0008-01A . | |
| Risk Of Death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A . | |
| Remove/install | |||
| 1 | Jack up vehicle | AR00.60-P-1000GZ . | |

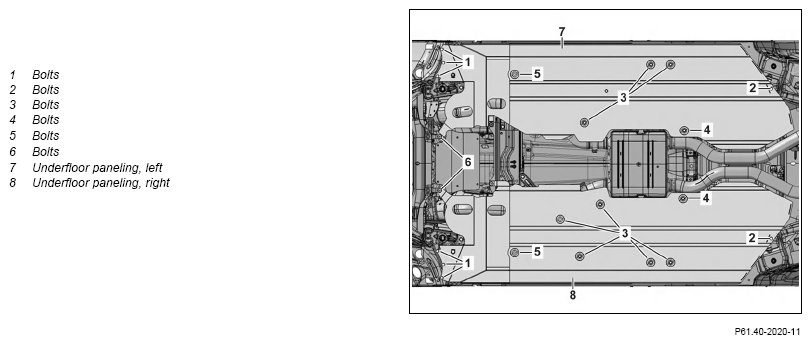

| 2 | Unscrew bolts (1 to 6) from left underfloor paneling and remove left underfloor paneling (7) | When removing left underfloor paneling. | |
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B . | ||
| Thread locking agent, Loctite 243 (10 ml) | *BR00.45-Z-1133-02A . | ||
| 3 | Unscrew bolts (1 to 6) from left underfloor paneling and remove left underfloor paneling (8) | When removing right underfloor paneling. | |
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B . | ||
| Thread locking agent, Loctite 243 (10 ml) | *BR00.45-Z-1133-02A . | ||
| 4 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1133-02A | Thread locking agent, Loctite 243 (10 ml) | A 613 989 09 71 09 |
