Remove/Install Front Seat Cushion Cover - AR91.18-P-1800GQ

Model 166

with code 401 (Climatised front seats)

Model 292

with code 401 (Climatised front seats)

Shown on MODEL 166 with CODE 873 (Seat heater for driver and front passenger)

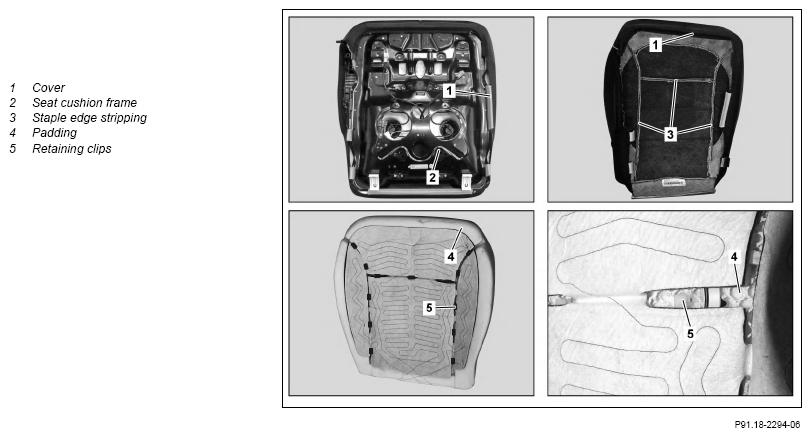

Fig 1: Front Seat Cushion Cover Components Location - Model 166 With Code 401 (Shown With Code 873)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Remove seat cushion	Model 166 with code 401 (Climatised front seats) with code U10 (Front passenger seat with weight sensor) Model 292 with code 401 (Climatised front seats) with code U10 (Front passenger seat with weight sensor) The seat cushion cover for the front passenger seat cushion may not be removed.	AR91.10-P-3310GQ
2	Remove tray for fire extinguisher	Model 166 with code 401 (Climatised front seats) with code 682 (Fire extinguisher) Model 292 with code 401 (Climatised front seats) with code 682 (Fire extinguisher)
3	Unhook cover (1) from seat cushion frame (2)	Extraction hook	Fig 2
4	Slip cover (1) over padding (4)
5	Lift cover (1) until all retaining clips (5) are accessible	The number of retaining clips (5) varies depending on the vehicle equipment.
6	Unclip staple edge stripping (3) from all retaining clips (5)	The number of retaining clips (5) varies depending on the vehicle equipment.
7	Remove cover (1) from padding (4)	Ensure correct seating of cover (1).
8	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)
