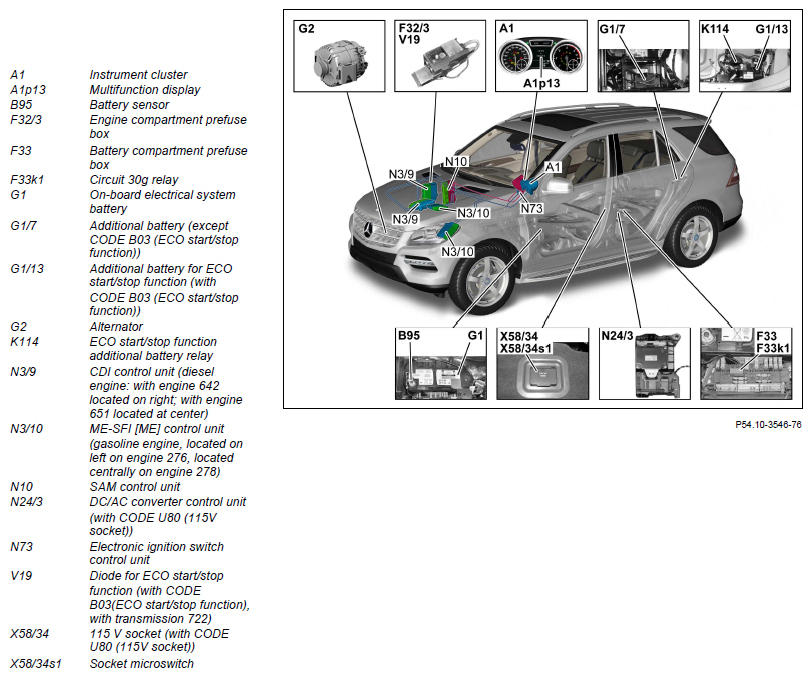

(Overview Of Energy Management System Components - GF54.10-P-9990GR)
MODEL 166
up to model year 2016
Shows model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 N3/9 |
GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 N3/9 |
GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10 |
GF07.61-P-6000MMU | |
| MODEL 166 with ENGINE 276.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMG | ||
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Table of contents for function description of energy management | GF54.10-P-0990GR |
