Separate Longitudinal Member Front Section - Ar62.20-P-1260-01GQ

Model 166, 292

Courtesy of MERCEDES-BENZ USA

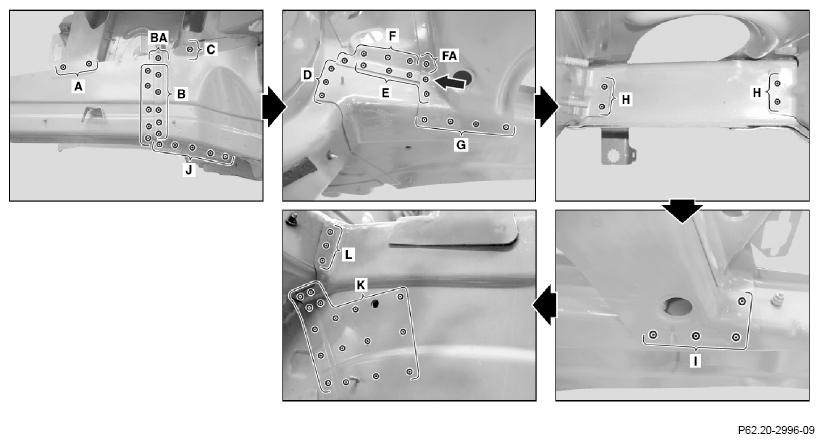

Shown on model 166

1. Expose spot welds in areas (A, B, C, D, E, F, G, H, I, J, K, L, BA and FA) and cut out.

   Cut out spot welds in areas (C and F) and marked spot weld (arrow) through two sheet metal thicknesses.

   Cut out spot weld in area (FA) through two sheet metal thicknesses.

2. Remove damaged wheel well front section.
