Replace Radiator Support (Without Straightening Bench) - Ar62.30-P-1510GQ
Model 166, 292
MODIFICATION NOTES
| 21.9.15 | Special tool inserted | Operation step 2 |

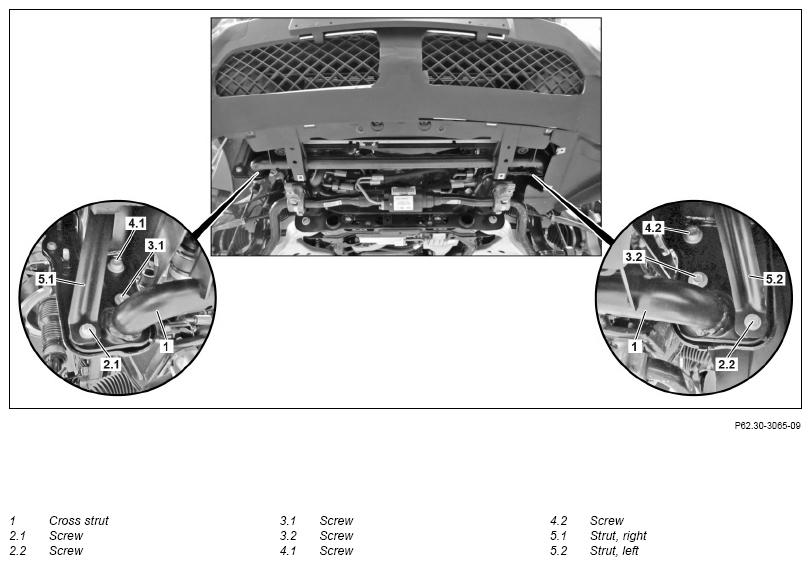

Shown on model 166
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A . | |
| General information on body repair | AH60.00-N-0001-01A | ||
| General information on MB materials | AH98.00-P-9409-03A . | ||
| Remove/install | |||
| 1 | Open engine hood | ||
| 2 | Secure cooler with fastening strap against falling down | ||
| 3 | Lift vehicle on vehicle lift | AR00.60-P-1000GZ . | |
| 4 | Remove front section of fender liner in right and left front fender | AR88.10-P-1310GQ . | |
| 5 | Remove underfloor paneling | AR61.30-P-1001GQ . | |
| 6 | Unscrew bolts (2.1, 2.2) and remove spacers sleeves behind struts, on left and right (5.1, 5.2) | *BA62.30-P-1002-02I . | |
| 7 | Unscrew bolts (4.1, 4.2) | Model 166 | |
| *BA62.30-P-1002-02I . | |||
| 8 | Unscrew bolts (3.1, 3.2) and remove cross strut (1) | *BA62.30-P-1002-02I . | |
| 9 | Install in the reverse order | ||
| 10 | Apply additional cavity preservation | AR97.20-P-1500GQ . |
FROND END WITH REINFORCEMENT
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA62.30-P-1002-02I | Screw/bolt, cross strut to impact absorber | Nm | 25 | 25 |
