Remove/Install Gas-Operated Strut On Engine Hood - AR88.40-P-3010GQ
Model 166
Model 292
Shown on model 166
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from fingers being pinched or jammed when working on gas struts under pressure | Only remove and install pneumatic springs when they are not under tension and when the components are properly secured. | AS00.00-Z-0012-01A | |
| Remove/install | |||
| 1 | Open engine hood and move to vertical position | Model 166 | AR88.40-P-1000GQ |

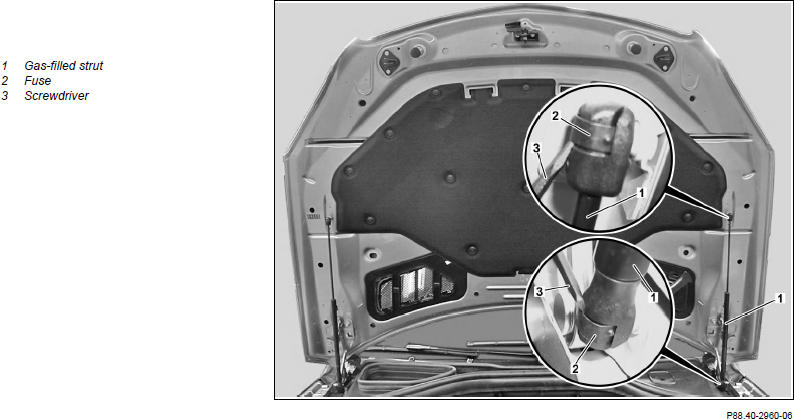

| 2 | Lift upper retainer (2) and lower retainer (2) with suitable screwdriver (3) and unclip gas pressure strut (i) from mounts | Do not remove retainers (2). Otherwise tension is lost. Do not remove both gas pressure struts (1) simultaneously ↓ If, however, both gas pressure struts (1) are removed simultaneously, secure engine hood against falling down |
|
| 3 | Install in the reverse order |
