Disassemble/Assemble Suspension Strut - AR32.25-P-1018GZ

Model 164, 166, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)

Courtesy of MERCEDES-BENZ USA

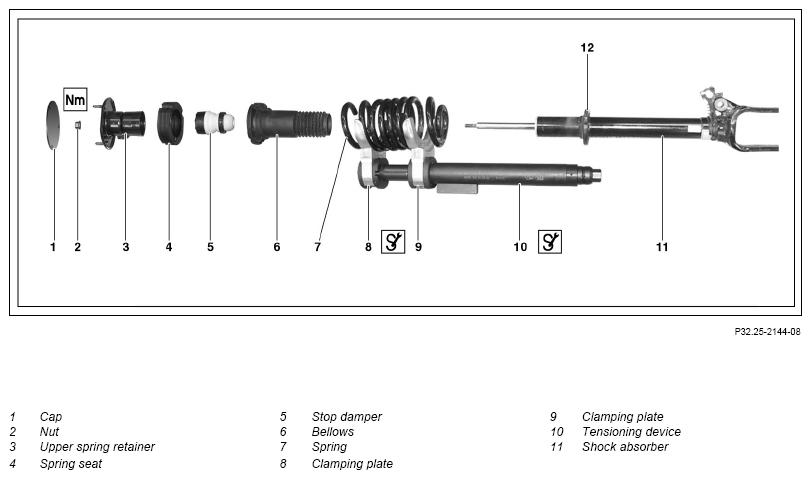

Shown on model 164

	Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension	Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove
1	Remove suspension strut	Model 164 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.25-P-1017GZ
		Model 166, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.25-P-1017GQ
	Disassemble
2	Clamp tensioning device (10) in vise and insert clamping plates (8, 9)	Tensioning device	Fig 3
		Clamping plates	Fig 1
3	Insert suspension strut into tensioning device (10)	When positioning the suspension strut, attempt to get the maximum possible number of spring coils (7) in the spring clamp.
4	Clamp spring (7) until the upper spring retainer (3) is relieved of load
5	Remove cap (1)
6	Unscrew nut (2); while doing this, counterhold piston rod	Socket wrench	Fig 2
7	Remove shock absorber (11)
8	Remove bellows (6) and stop damper (5)
9	Release tensioning device (10) and remove spring (7) with upper spring cup (3) and spring seat (4)
	Check
10	Check shock absorber (11)	Model 166, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.25-P-0121CW
		Model 164 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.25-P-0121A
11	Check boot (6), stop damper (5) and spring seat (4) for wear, damage and oil fouling, replace if necessary
	Assemble
12	Clamp spring (7) with tensioning device (10)
13	Position spring (7) on shock absorber (11)
14	Position boot (6), stop damper (5), spring seat (4) and upper spring cup (3) at shock absorber (11) and spring (7)
15	Adjust total thickness of shims	When replacing spring (7). Model 164.1 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.20-P-0200GZ
		Model 166, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.20-P-0200GQ
		Shims are located between the upper spring cup (3) and the spring seat (4).
16	Fit nut (2) in place
17	Align upper spring cup (3) before tightening the nut (2)	Observe the uneven gap between threaded pins. The two threaded pins closest to each other must point in the direction of travel
18	Tighten nut (2); while doing this, counterhold piston rod	Model 166, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Nut to piston rod	*BA32.25-P-1003-01O
		Model 164.1/8 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Nut to piston rod	*BA32.25-P-1003-01G
		Socket wrench	Fig 2
19	Mount cap (1)
20	Loosen spring (7) until tensioning device (10) is relieved of load
21	Remove suspension strut from tensioning device (10)
22	Remove clamping plates (8, 9) from tensioning device (10)
23	Loosen vise and remove tensioning device (10)
	Install
24	Install suspension strut	Model 164 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.25-P-1017GZ
		Model 166, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.25-P-1017GQ
25	Inspect headlamp adjustment, correct if necessary
		Model 166 up to model year 2016 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP82.10-P-8260GZA
		Model 166 as of model year 2016 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP82.10-P-8260I
		Model 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)
		Model 164 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP82.10-P-8260GZ
