Overview Of System Components Of Active Roll Stabilization - GF32.34-P-9998GN
MODEL 166
as of model year 2016
with CODE 468 (ACTIVE CURVE SYSTEM)
MODEL 292
with CODE 468 (ACTIVE CURVE SYSTEM)

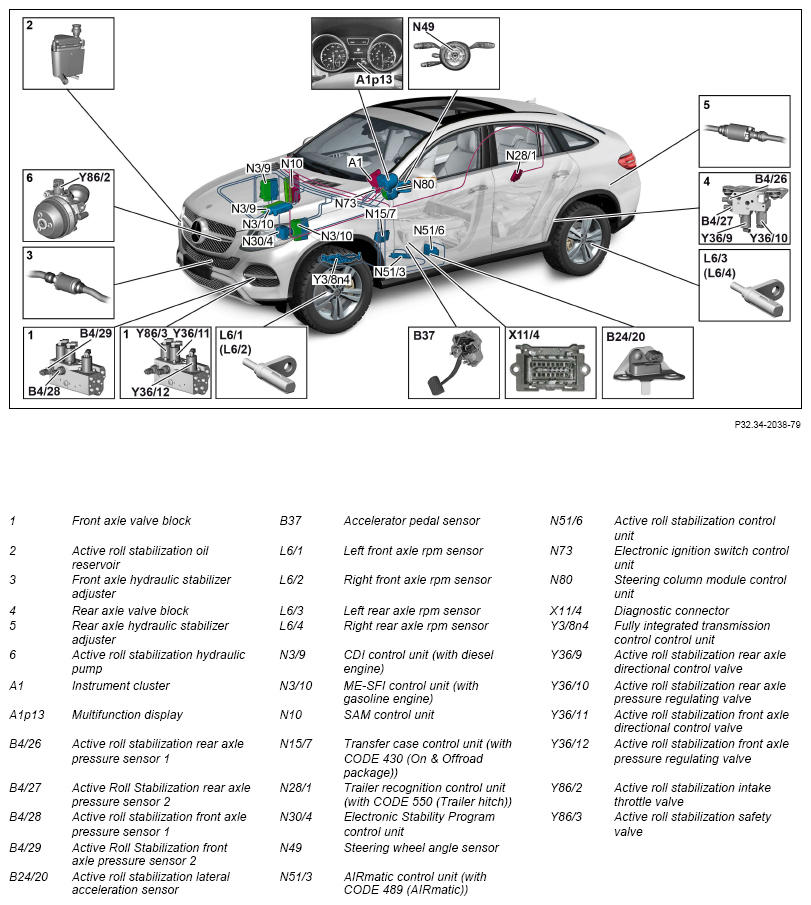

Shown on model 292
Shown on model 166.0 (except CODE 430 (On & Off-road package))
| Component description for instrument cluster | A1, A1p13 | GF54.30-P-6000GN | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) Model 292 with ENGINE 642 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF07.16-P-6000OGF | |
| MODEL 166 with ENGINE 651.9 as of 6/1/15 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) N3/9 |
GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | MODEL 166.063 with ENGINE 276.8 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF07.61-P-6000MMM | |
| MODEL 166 (except 166.063) with ENGINE 276.8 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) Model 292 with ENGINE 276.8 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF07.61-P-6000MMX | ||
| MODEL 166 with ENGINE 157.9, 278.9 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) Model 292 with ENGINE 157.9, 278.9 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF07.61-P-6000MMY | ||
| MODEL 166 with ENGINE 276.9 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) N3/10 |
GF07.61-P-6000MNG | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description of transfer case control unit | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 with CODE 430 (On & off-road package) with CODE 468 (ACTIVE CURVE SYSTEM) N15/7 |
GF28.19-P-3200VGF | |
| Component description for trailer recognition control unit | MODEL 166 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) with CODE 550 (Trailer coupling) Model 292 with CODE 468 (ACTIVE CURVE SYSTEM) with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GN | |
| Component description for Electronic Stability Program control unit | MODEL 166 (except 166.063) as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) Model 292 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF42.45-P-5119GN | |
| MODEL 166.063 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) N30/4 |
GF42.45-P-5119GRH | ||
| AIRMATIC control unit, component description | MODEL 166 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) with CODE 489 (AIRMATIC) Model 292 with CODE 468 (ACTIVE CURVE SYSTEM) with CODE 489 (AIRMATIC) N51/3 |
GF32.22-P-5110GN | |
| Active roll stabilization control unit component description | N51/6 | GF32.34-P-5000GN | |

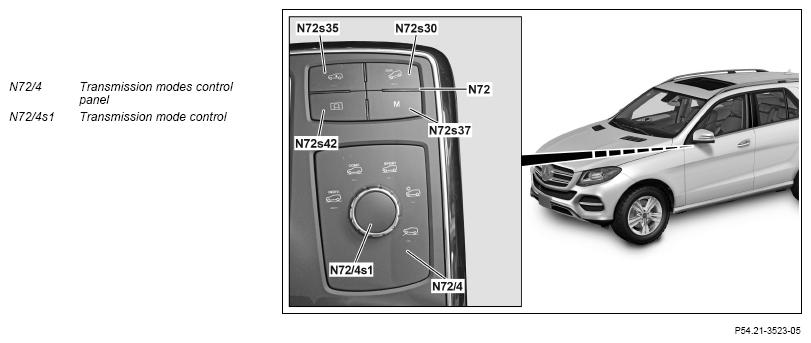

| Offroad operating panel, component description | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 with CODE 430 (On & off-road package) with CODE 468 (ACTIVE CURVE SYSTEM) N723, N72/3s1 |
GF54.21-P-3520VGF | |
| Lower control panel control unit, component description | N724, N724s1 | GF54.21-P-6060GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for fully integrated transmission control unit | MODEL 292 with TRANSMISSION 725.0 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF27.60-P-5165ANJ | |
| MODEL 166 with TRANSMISSION 725.0 as of model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) Y38n4 |
GF27.60-P-5165ANF | ||
| Table of contents for function description of active roll stabilization | GF32.34-P-0998GN |
