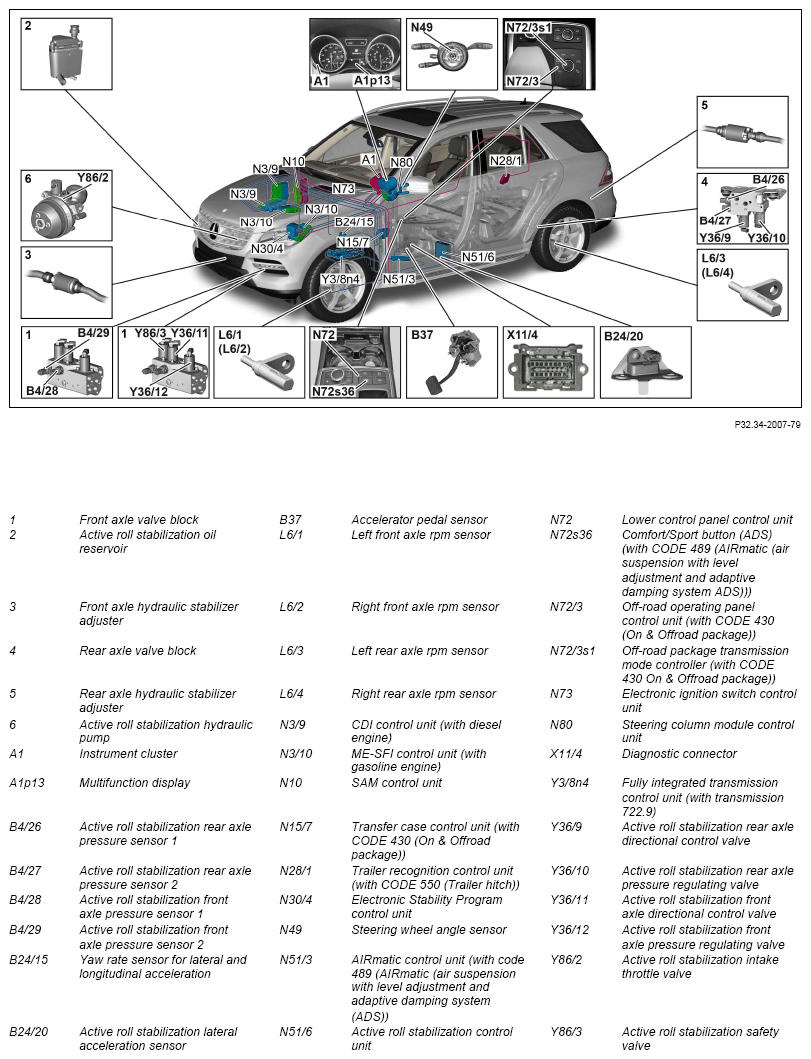

(Overview Of System Components Of Active Roll Stabilization - GF32.34-P-9998GR)
MODEL 166
up to model year 2016
with CODE 468 (ACTIVE CURVE SYSTEM)
Shown on model 166.0
Depending on the engine involved, the ME-SFI [ME] control unit has the following installation location:
- Engine 276, on left of engine
- Engine 278 and 157, on center of engine
Depending on the engine involved, the CDI control unit has the following installation location:
- Engine 642, in the right front wheel arch behind the wheel
- Engine 651, on the air filter housing
| Component description for instrument cluster | A1, A1p13 | GF54.30-P-6000GR | |
| Turn rate, lateral and longitudinal acceleration sensor, component description | B24/15 | GF42.45-P-4082GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) N3/10 |
GF07.61-P-6000MMU | |
| MODEL 166 with ENGINE 276.9 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF07.61-P-6000MMG | ||
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) |
GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description of transfer case control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 430 (On & off-road package) with CODE 468 (ACTIVE CURVE SYSTEM) N15/7 |
GF28.19-P-3200VGC | |
| Component description for trailer recognition control unit | MODEL 166 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| AIRmatic control unit, component description | MODEL 166 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3 |
GF32.22-P-5109GR | |
| Active roll stabilization control unit component description | N51/6 | GF32.34-P-5000GR | |
| Lower control panel control unit, component description | N72, N72s36 | GF54.21-P-6060GR | |
| Offroad operating panel, component description | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 430 (On & off-road package) with CODE 468 (ACTIVE CURVE SYSTEM) N723, N72/3s1 |
GF54.21-P-3520VGC | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 468 (ACTIVE CURVE SYSTEM) Y3/8n4 |
GF27.60-P-5165AHA | |
| Table of contents for function description of active roll stabilization | GF32.34-P-0998GR |
