Remove/Install Rear Spring - AR32.20-P-0230GZ

Model 164, 166, 251, 292

except code 489 (AIRMATIC Dual Control/semi-active air suspension)

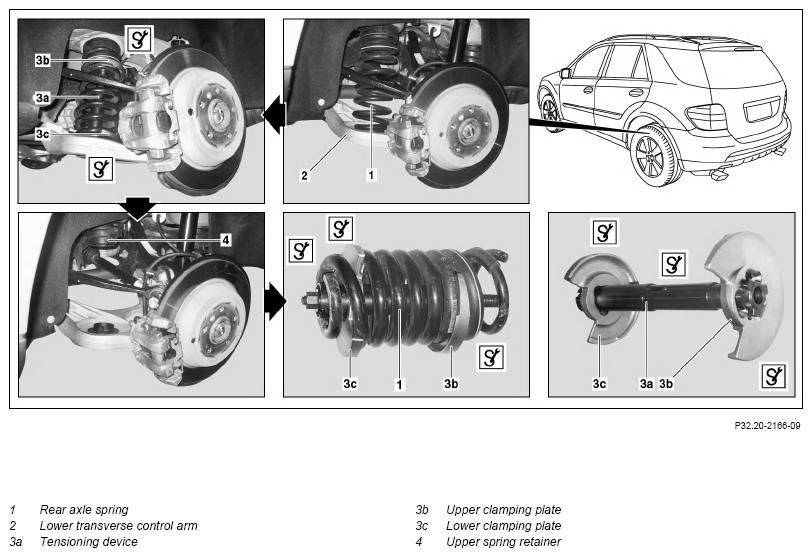

Fig 1: Rear Spring Components Location - Model 166 Except Code 489 (Shown On Model 164)

Courtesy of MERCEDES-BENZ USA

Shown on model 164

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 164

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury caused by pinching or crushing when working on springs or spring bodies that are under tension	Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Detach complete wheel	Model 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR40.10-P-1100GQC
		Model 251 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP40.10-P-4050RT
		Model 164 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP40.10-P-4050Z
		Model 166 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP40.10-P-4050EW
2	Color mark installation position for all detachable parts on rear axle spring (1) relative to each other, the body and to the lower control arm (2)

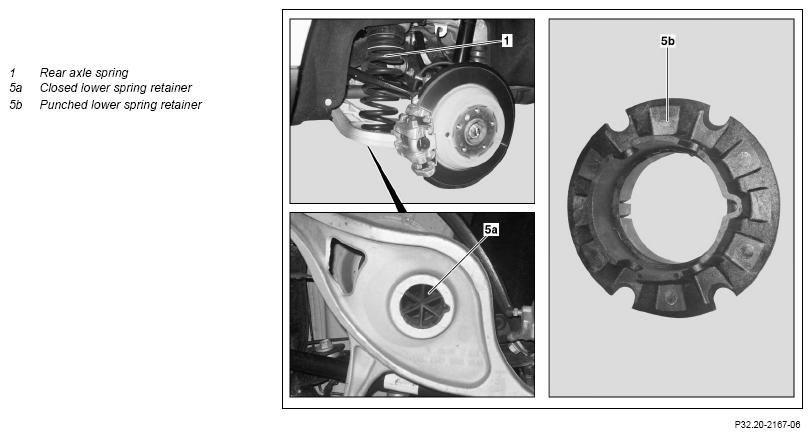

3	Break out bars on closed lower spring cup (5a) and smooth down broken edges to enable the tensioning device (3a) to be inserted	Vehicles with closed lower spring cup (5a).
		Tensioning device	Fig 5
4	Insert tensioning device (3a) with upper clamping plate (3b) and the lower clamping plate (3c)	Here, as many windings as possible on the rear axle spring (1) must be tensioned.
		Model 251.### ## as of 101426 as of model year 2010 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Tensioning plates	Fig 3
		Model 166 with code 845 (Electrically folding 3rd seat row) except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Clamping plates	Fig 2
		Model 164, 166 except code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 845 (Electrically folding 3rd seat row) Model 251 up to model year 2009 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Clamping plates	Fig 4
		Tensioning device	Fig 5
5	Tension rear axle spring (1)	The tensioning device (3a) must not be tensioned or released using a pneumatically or electrically powered tool. Otherwise damage will occur. The tab on the punched lower spring cup (5b) must latch into the groove in the lower control arm (2).
6	Remove rear axle spring (1) together with the tensioning device (3a)
7	Relieve rear axle spring (1)
8	Replace expansion clip (6)
	Check

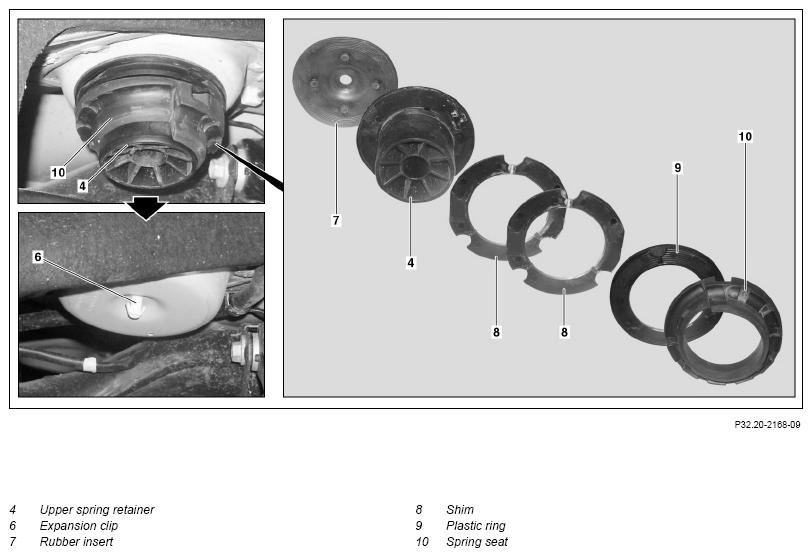

9	Remove punched lower spring retainer (5b), upper spring retainer (4), rubber insert (7) and the spring seat (10), then check for wear and damage, replace, if necessary	The closed lower spring cup (5a) must be replaced by the punched lower spring cup (5b).
10.1	Adjust vehicle level by detaching spring seat (10) and plastic ring (9) from upper spring cup (4), and - depending on the change request, shims (8) - removing or adding to them	Model 166, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension) When replacing the rear axle springs (1) and if required.	AR40.20-P-0301-02GQ
10.2	Adjust vehicle level by detaching spring seat (10) and plastic ring (9) from upper spring cup (4), and - depending on the change request, shims (8) - removing or adding to them	Model 164, 251 except code 489 (AIRMATIC Dual Control/semi-active air suspension) If required.
	Install
11	Tension rear axle spring (1) using tensioning device (3a) and position between lower control arm (2) and upper spring cup	Rear axle springs (1) may only be replaced in pairs. Here, as many windings as possible on the rear axle spring (1) must be tensioned.
		Model 251.### ## as of 101426 as of model year 2010 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Tensioning plates	Fig 3
		Model 166 with code 845 (Electrically folding 3rd seat row) except code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Clamping plates	Fig 2
		Model 164, 166 except code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 845 (Electrically folding 3rd seat row) Model 251 up to model year 2009 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Clamping plates	Fig 4
		Tensioning device	Fig 5
12	Align all color marked installation position for the detachable parts on rear axle spring (1) relative to each other, the body and to the lower control arm (2)
13	Relieve rear axle spring (1) and remove tensioning device (3a)
14	Mount complete wheel	Model 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR40.10-P-1100GQC
		Model 251 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP40.10-P-4050RT
		Model 164 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP40.10-P-4050Z
		Model 166 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AP40.10-P-4050EW
15	Check vehicle level, adjust if necessary	If the rear axle springs (1) were replaced. Model 164 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR40.20-P-0301GZ
		Model 166, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR40.20-P-0301GQ
		Model 251 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR40.20-P-0301RT
