Remove/Install Air Suspension Control Unit - AR32.22-P-6000GQ
Model 166
as of model year 2016
with code 489 (AIRMATIC Dual Control/semi-active air suspension)
with code P84 (Sports model)

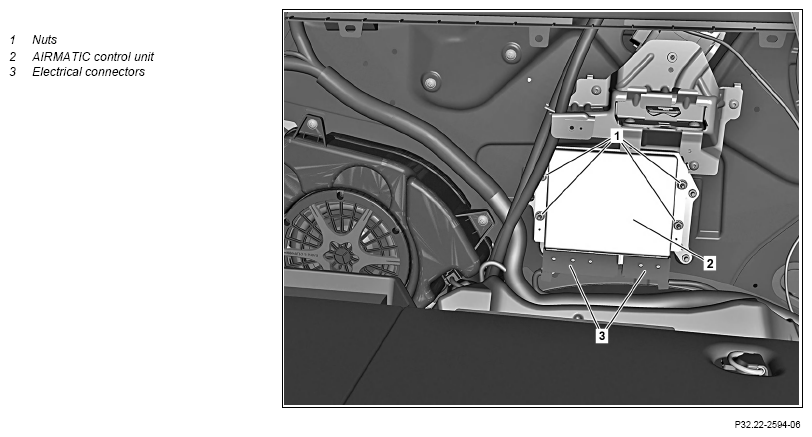

Fig 1: Airmatic/Air Suspension Control Unit Components Location - Model 166 As Of Model Year 2016 With Code 489; P84
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and store basic data from AIRmatic control unit (2) | Only when replacing AIRmatic control unit (2). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 3 | Remove side paneling in left side of trunk | Model 166.0 as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code P84 (Sports model) |
AR68.30-P-4800GQ |
| Model 166.8 as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) with code P84 (Sports model) |
AR68.30-P-4800GQX | ||
| 4 | Remove sound deadening mat | ||
| 5 | Unscrew nuts (1) | ||
| 6 | Release and disconnect electrical connections (3) from AIRmatic control unit (2) | ||
| 7 | Remove AIRmatic control unit (2) | ||
| 8 | Install in the reverse order | ||
| Initial startup | |||
| 9 | Perform SCN coding of AIRmatic control unit (2) | Only when replacing AIRmatic control unit (2). | AR54.21-P-0015X |
| 10 | Transfer previously stored basic data to AIRmatic control unit (2) | Only when replacing AIRmatic control unit (2). | |
| AD00.00-P-2000-04A | |||
| 11 | Perform initial startup of AIRmatic control unit (2) | Only when replacing AIRmatic control unit (2). |
