(Remove/Install Bracket For Compressor - AR32.22-P-2009TX)

MODEL 219.3 with CODE (489) Aromatic (semi-active air suspension)

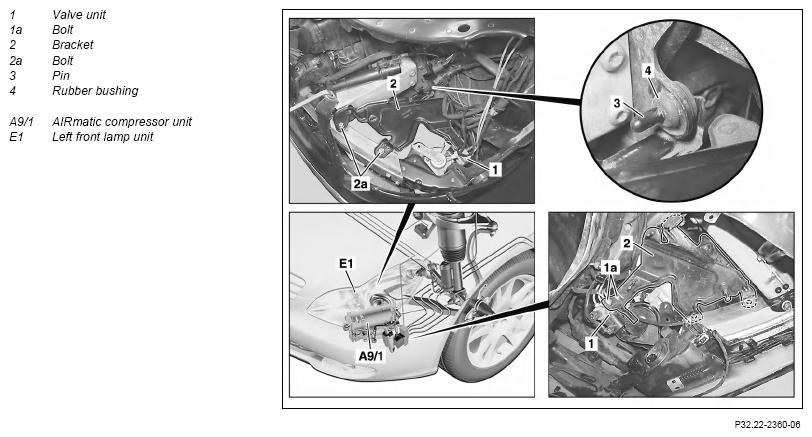

G14135903

Courtesy of MERCEDES-BENZ USA

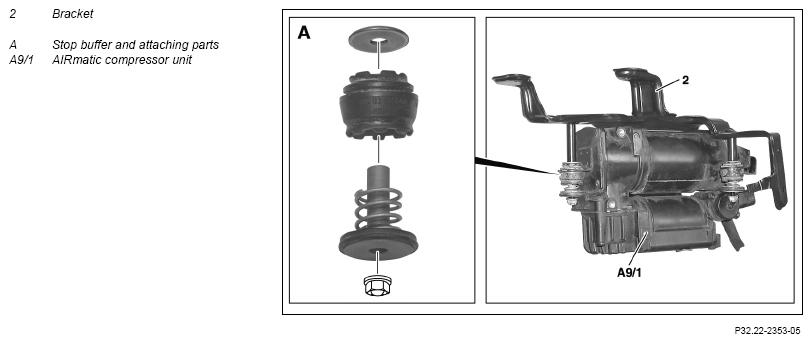

G14135904

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove AIRmatic compressor unit (A9/1)		AR32.22-P-2001TX
2	Undo bolts (1a) and place valve unit (1) to one side.	Do not disconnect pressure lines and electrical connectors.	*BA32.22-P-1011-03A
3	Remove left front lamp unit (E1)		AR82.10-P-4730TX
4	Remove bolts (2a)		*BA32.22-P-1012-03A
5	Apply liquid lubricant to bolts (3).	Lubricant	*BR00.45-Z-1002-06A
6	Slide bracket (2) of AIRmatic compressor unit (A9/1) backwards out of rubber mount (4) and remove
	Checking
7	Check rubber mount (4) of bracket (2)	Check rubber mount (4) for hardness and damage; replace if necessary.
8	Replace stop buffer and attaching parts (A) of the AIRmatic compressor unit (A9/1)	If reusing the stop buffer and attaching parts (A) knocking and thumping noise may occur.	AR32.22-P-2011TX
9	Install in the reverse order

AIR SUSPENSION

Number	Designation		Model 219 with AIRmatic code 489
BA32.22-P-1011-03A	Bolt for valve unit to compressor bracket	Nm	5
BA32.22-P-1012-03A	Bolt for compressor bracket to front crossmember	Nm	8

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
