Overview Of System Components For Airmatic - GF32.22-P-9994GN
Model 166
as of model year 2016
with code 489 (AIRMATIC Dual Control/semi-active air suspension)
Model 292
with code 489 (AIRMATIC Dual Control/semi-active air suspension)

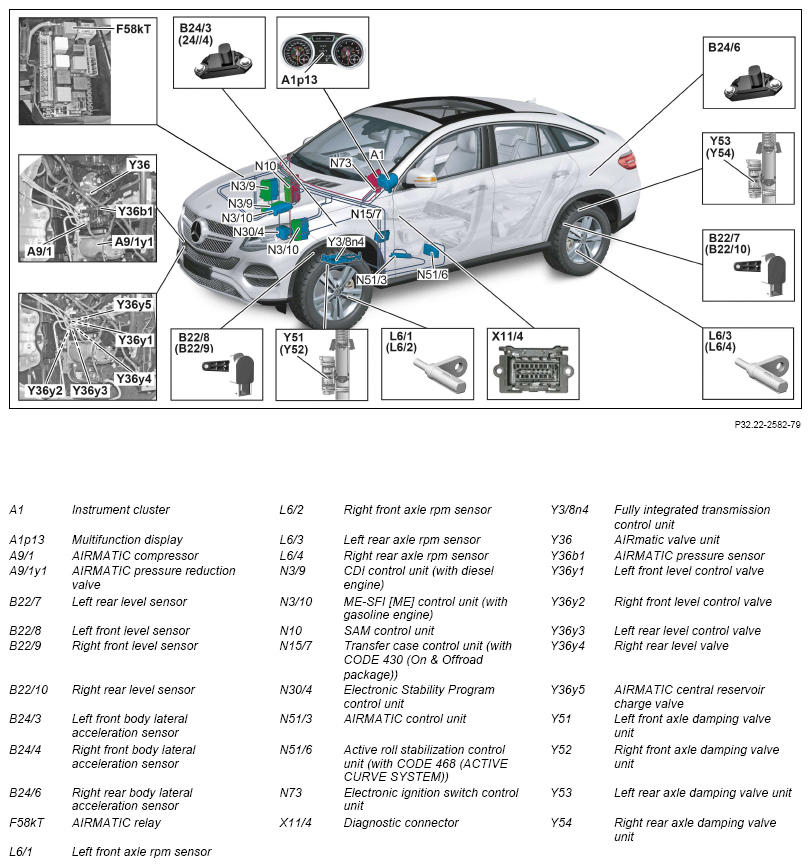

Overview of system components

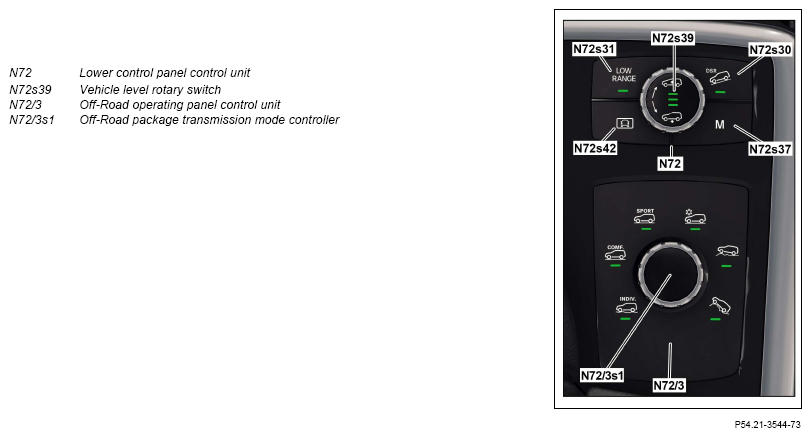

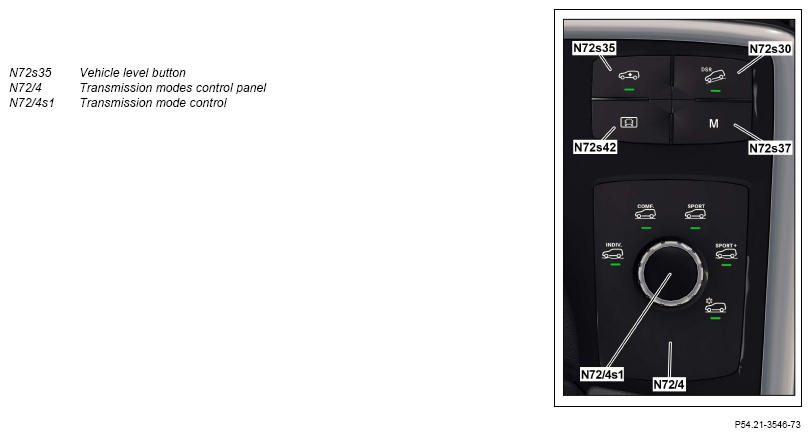

View of center console, vehicles with CODE 430 (On & Off-road package)
Shown on model 292 with CODE P84 (Sport model)

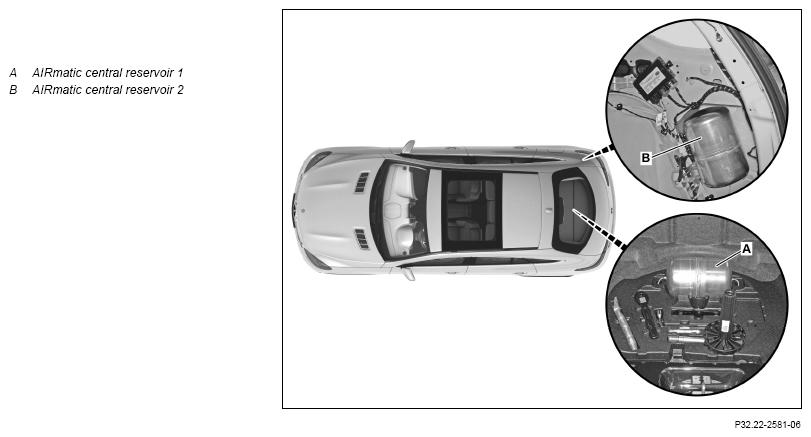

Shown on model 292

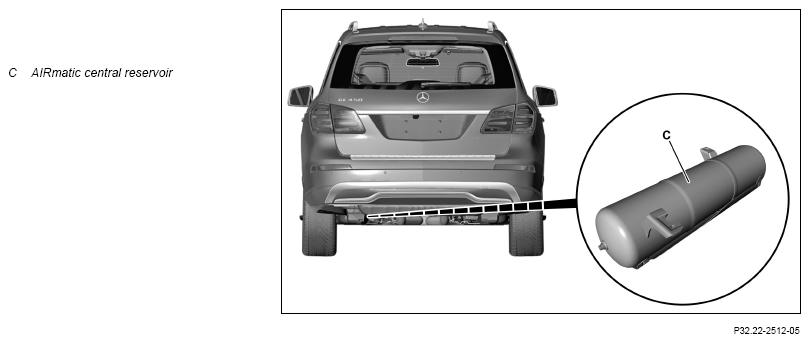

Shown on model 166.8

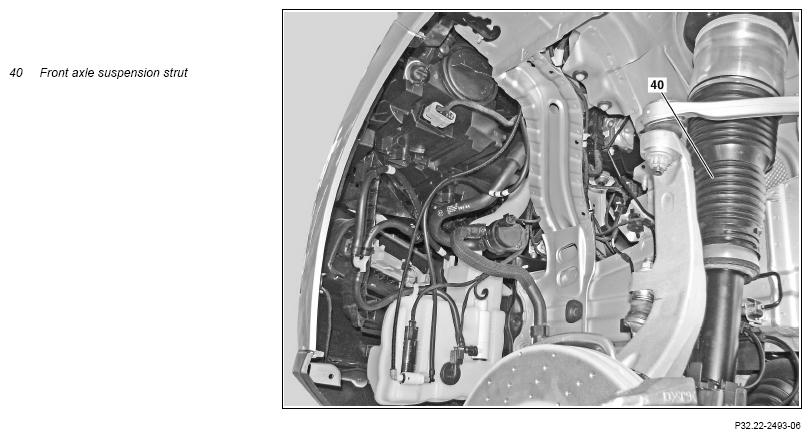

Shown on left front axle on model 166.0

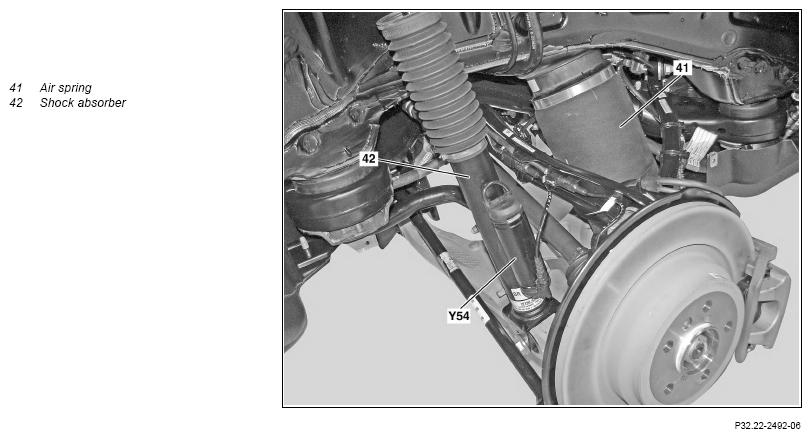

Shown on right side of rear axle on model 166.0
| Component description for instrument cluster | A1, A1p13 | GF54.30-P-6000GN | |
| Component description for CDI control unit | Model 166 with engine 642.8 as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 292 with engine 642.8 with code 489 (AIRMATIC Dual Control/semi-active air suspension) |
GF07.16-P-6000OGF | |
| Model 166 with engine 651.9 as of 6/1/15 as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) N3/9 |
GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | Model 166.063 with engine 276.8 as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) |
GF07.61-P-6000MMM | |
| Model 166 (except 166.063) with engine 276.8 as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 292 with engine 276.8 with code 489 (AIRMATIC Dual Control/semi-active air suspension) N3/10 |
GF07.61-P-6000MMX | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description of transfer case control unit | Model 166 with transmission 725.0 as of model year 2016 with code 430 (On & off-road package) with code 489 (AIRMATIC Dual Control/semi-active air suspension) N15/7 |
GF28.19-P-3200VGF | |
| Component description for Electronic Stability Program control unit | Model 166 (except 166.063) as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 292 with code 489 (AIRMATIC Dual Control/semi-active air suspension) |
GF42.45-P-5119GN | |
| Model 166.063 as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) N30/4 |
GF42.45-P-5119GRH | ||
| AIRMATIC control unit, component description | N51/3 | GF32.22-P-5110GN | |
| Active roll stabilization control unit component description | Model 166 as of model year 2016 with code 468 (ACTIVE CURVE SYSTEM) with code 489 (AIRMATIC Dual Control/semi-active air suspension) Model 292 with code 468 (ACTIVE CURVE SYSTEM) with code 489 (AIRMATIC Dual Control/semi-active air suspension) N51/6 |
GF32.34-P-5000GN | |
| Lower control panel control unit, component description | N72, N72s35, N72s39, N72/4, N72/4s1 | GF54.21-P-6060GN | |
| Offroad operating panel, component description | Model 166 with transmission 725.0 as of model year 2016 with code 430 (On & off-road package) with code 489 (AIRMATIC Dual Control/semi-active air suspension) N723, N72/3s1 |
GF54.21-P-3520VGF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for fully integrated transmission control unit | Model 292 with transmission 725.0 with code 489 (AIRMATIC Dual Control/semi-active air suspension) |
GF27.60-P-5165ANJ | |
| Model 166 with transmission 725.0 as of model year 2016 with code 489 (AIRMATIC Dual Control/semi-active air suspension) Y38n4 |
GF27.60-P-5165ANF | ||
| Table of contents for function description of AIRMATIC | GF32.22-P-0997GN |
