Remove/Install Steering Wheel - AR46.10-P-0100EW

Model 166, 172, 212, 218, 231, 292

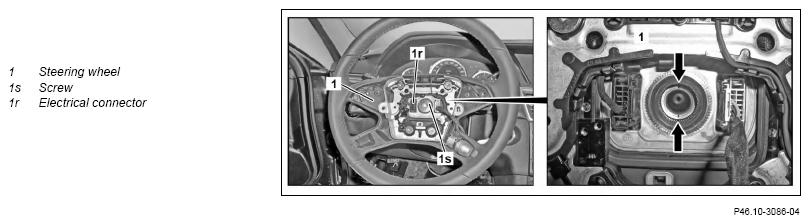

Shown on model 212

Courtesy of MERCEDES-BENZ USA

	Notes on Self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Turn steering wheel (1) to center position.	The front wheels must be in the straight-ahead position.
2	Remove airbag unit from steering wheel (1).	Model 166, 292	AR91.60-P-0660GQ
		Model 172, 218, 231 Model 212 as of model year 2012	AR91.60-P-0660EL
		Model 212 up to model year 2012	AR91.60-P-0660EW
3	Counterhold steering wheel (1) and remove bolt (1s).	Use the bolt (1s) again and mark with a water-soluble pen (color dot).
		Model 166, 292Screw/bolt, steering wheel to steering shaft	*BA46.10-P-1001-02G
		Model 172, 231 Bolt, steering wheel to steering shaft	*BA46.10-P-1001-02A
		Model 212, 218Screw/bolt, steering wheel to steering shaft If the bolt (1s) already bears a marking (color dot) ↓ replace bolt (1s).	*BA46.10-P-1001-02J
4	Release and disconnect electrical connector (1r).
5	Remove steering wheel (1).	Align recesses of the splines (arrow) in the steering wheel (1) with the markings on the steering shaft.
6	Install in the reverse order.
