Remove/Install Lower Control Panel Control Unit - AR54.21-P-1263GQ
Model 166, 292

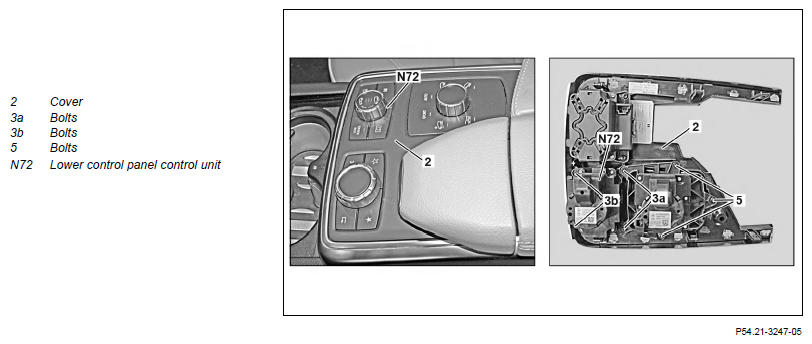

Shown on model 166 with code 430 (On-road & off-road package) and code 489 (AIRMATIC)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 2 | Remove cover (2) from center console | Model 166 up to model year 2016 | AR68.20-P-2350GQ |
| Model 166 as of model year 2016 Model 292 | AR68.20-P-2350GQA | ||
| 3 | Disconnect electrical connections | ||
| 4 | Remove screws/bolts (3a) | ||
| 5 | Unscrew screws/bolts (5) and remove offroad control panel control unit | Model 166, 292 with code 430 (On & off-road package) | |
| 6 | Remove screws/bolts (3b) | ||
| 7 | Remove lower control panel control unit (N72) from cover (2) | ||
| 8 | Install in the reverse order |
