Remove/Install Drive Program Switch Panel - AR54.21-P-0008GQA
Model 166 as of model year 2016
Model 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||

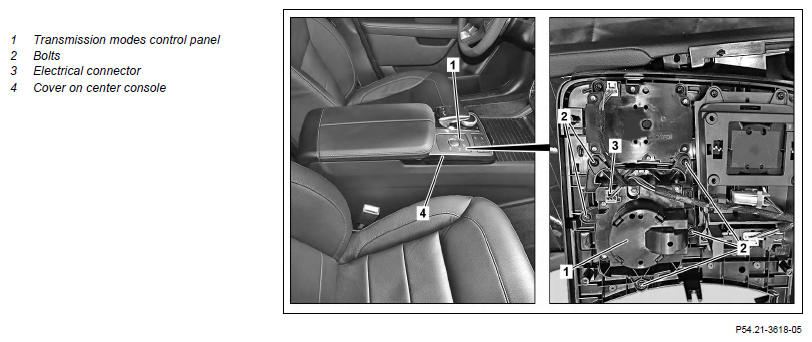

| 2 | Remove cover from center console (4) far enough until electrical connection (3) is accessible | AR68.20-P-2350GQA | |
| 3 | Disconnect electrical connector (3) | ||
| 4 | Unscrew screws/bolts (2) | ||
| 5 | Remove transmission mode control panel (1) | ||
| 6 | Install in the reverse order |
