Remove/Install Additional Battery Relay - AR54.15-P-2000GQ
Model 166 as of model year 2016 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 166 up to model year 2016 with code B03 (ECO start/stop function)
MODIFICATION NOTES
| 29.10.2015 | Document reference validity adapted | In operation step 3 |

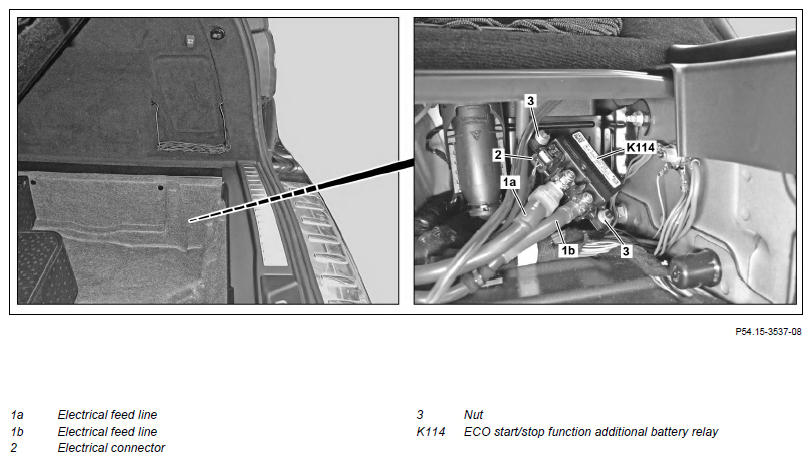

Shown on model 166.024
Fig 1: Additional Battery Relay Components Location - Model 166 As Of Model Year 2016 With Code ME05, B03

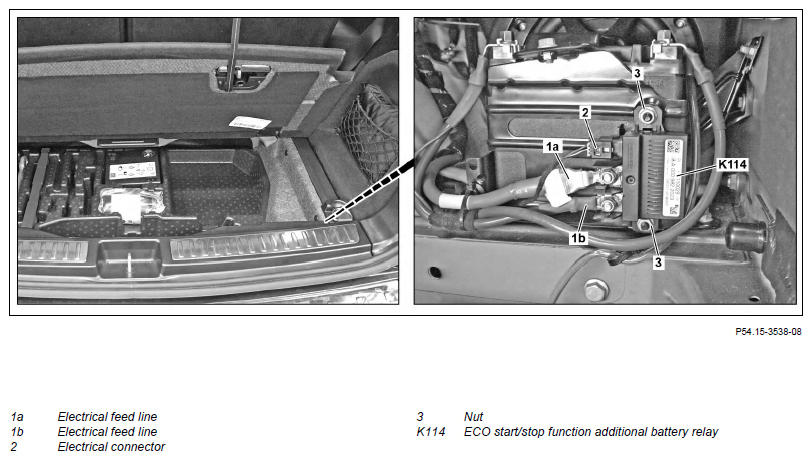

Shown on model 166.873
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 2.1 | Remove right side of panel in trunk | Model 166.0 as of model year 2016 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Model 166.0 up to model year 2016 with code B03 (ECO start/stop function) |
AR68.30-P-4800GQ |
| 2.2 | Remove trim from spare tire well | Model 166.8 up to model year 2016 with code B03 (ECO start/stop function) | AR68.30-P-4620GQ |
| 3 | Detach ground line from additional battery for ECO start/stop function (K114) | Model 166.0 as of model year 2016 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Model 166.0 up to model year 2016 with code B03 (ECO start/stop function) | AR54.10-P-0007GQA |
| Model 166.8 up to model year 2016 with code B03 (ECO start/stop function) | AR54.10-P-0007GQX | ||
| 4 | Detach electrical feed lines (1a, 1b) from relay for additional battery of ECO start/stop function (K114) | ||
| 5 | Release and disconnect electrical connector (2) | ||
| 6 | Unscrew nuts (3) | ||
| 7 | Remove ECO start/stop function additional battery relay (K114) | ||
| 8 | Install in the reverse order |
