Remove/Install 360° Camera Control Unit - AR54.30-P-3004GQ
Model 166, 292 with code 501 (360° camera)
MODIFICATION NOTES
| 26.08.2015 | "Calibrate all cameras of the 360° camera system using the diagnostic system" added. | Operation step 18 |
Shown on MODEL 166 with code 581 (Automatic air conditioning)
Shown on model 166
Shown on model 166
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and store basic data from 360° camera control unit (12) | Model 166 up to 5/31/15 up to model year 2015 with code 501 (360° camera) If the 360° camera control unit (12) was replaced. |
|
| AD00.00-P-2000-04A | |||
| 2 | Remove left front seat | AR91.10-P-1000GQ | |
| 3 | Remove lower molding from left B-pillar | AR68.30-P-4700GQ | |
| 4 | Place rear floor covering to one side | ||
| 5 | Place front floor covering to one side | ||
| 6.1 | Unhook electrical line (4) from shaped part | Model 166, 292 with code 501 (360° camera) except code 581 (Automatic air conditioning) | |
| 6.2 | Unhook electrical line (4) from air duct (6) | Model 166, 292 with code 501 (360° camera) with code 581 (Automatic air conditioning) | |
| 7.1 | Remove shaped part | Model 166, 292 with code 501 (360° camera) except code 581 (Automatic air conditioning) | |
| 7.2 | Remove air duct (6) | Model 166, 292 with code 501 (360° camera) with code 581 (Automatic air conditioning) | |

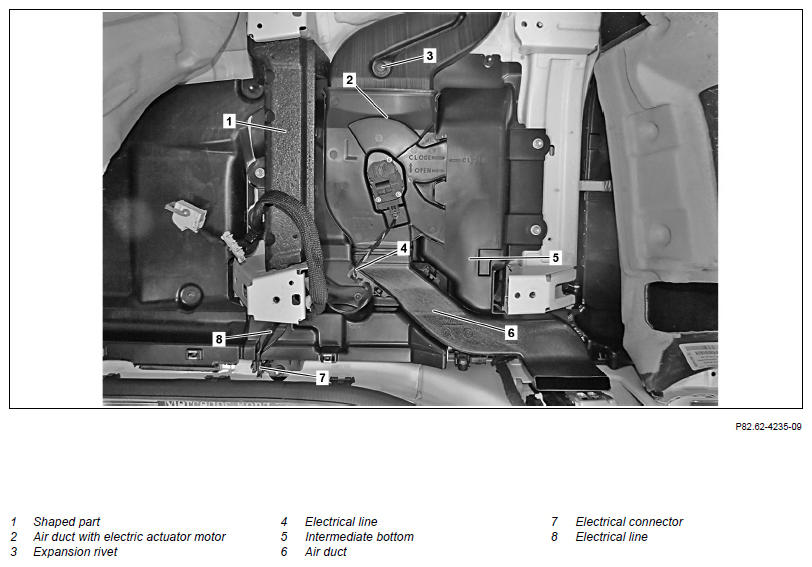

| 8 | Remove expansion rivets (3) | Fig 1 | |
| 9 | Remove air duct with electric actuator motor (2) and place to one side with connected electrical line (4) | ||
| 10 | Remove shaped part (1) | ||
| 11 | Unhook electrical connector (7) and electrical line (8) from intermediate bottom (5) | ||

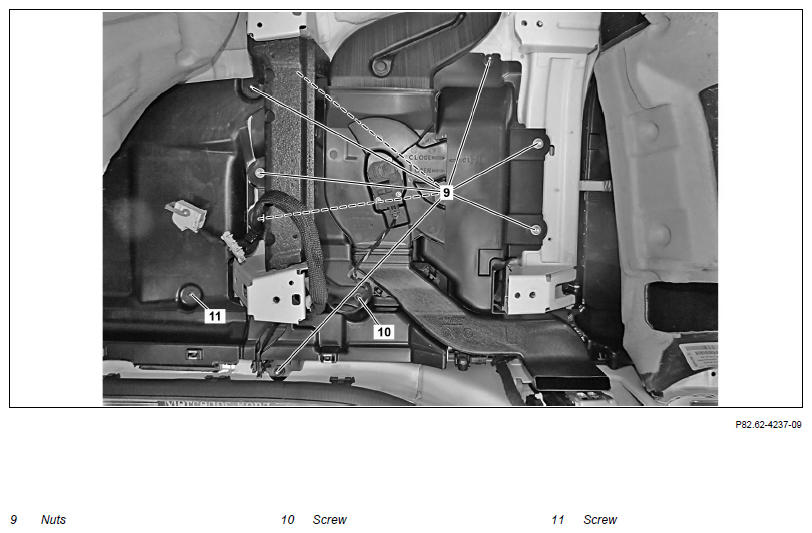

| 12 | Unscrew nuts (9) from intermediate bottom (5) | ||
| 13 | Remove screw/bolts (10, 11) | ||
| 14 | Remove intermediate bottom (5) | ||
| 15 | Unclip 360° camera control unit (12) and take out of holder | ||

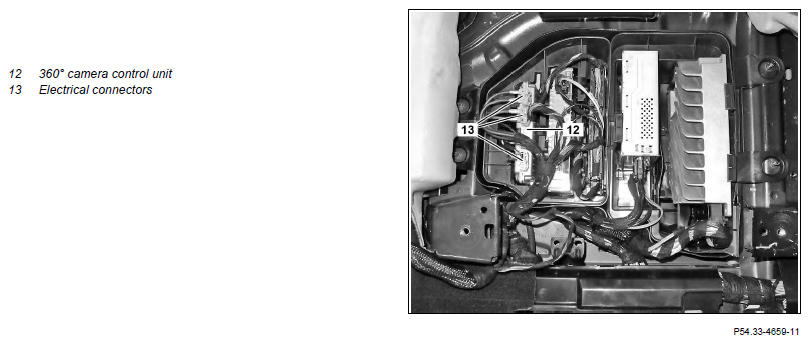

| 16 | Disconnect electrical connections (13) | ||
| 17 | Install in the reverse order | ||
| 18 | Perform initial startup of 360° camera control unit (12) | Model 166 as of 6/1/15 as of model year 2015 with code 501 (360° camera) Model 292 with code 501 (360° camera) If the 360° camera control unit (12) was replaced. |
AR54.21-P-0015X |
| 19 | Calibrate all the cameras for the 360° camera system using the diagnostic system | If the 360° camera control unit (12) was replaced. | |
| AD00.00-P-2000-04A |
