Remove And Install DC/AC Converter Control Unit - AR54.21-P-1600GQ
Model 166, 292 with code U80 (115 V socket)

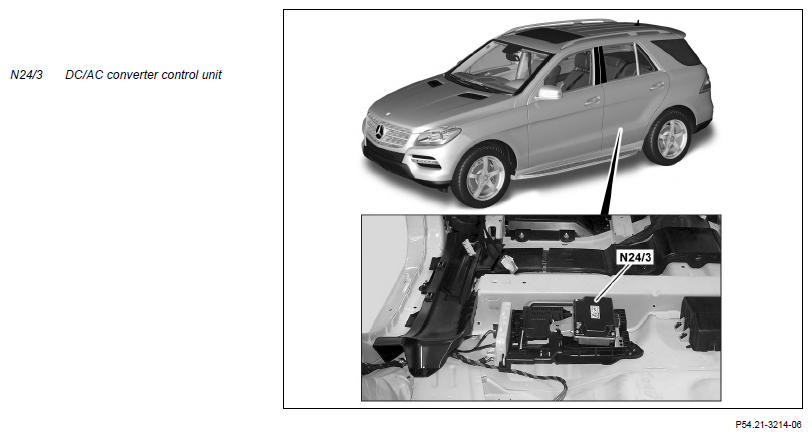

Illustrated on model 166.0

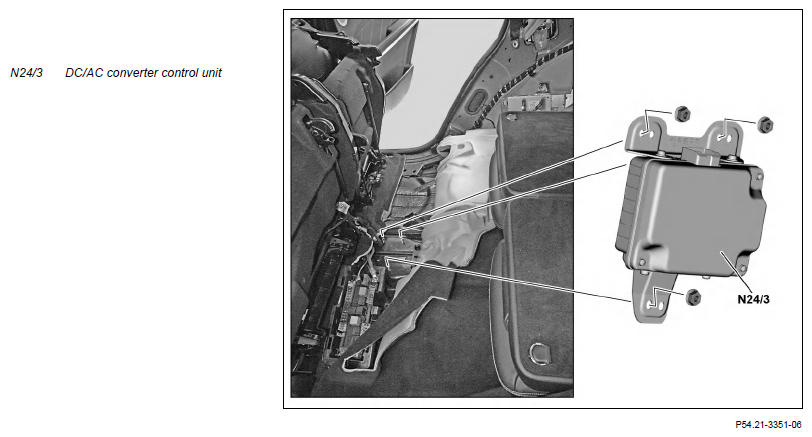

Shown on model 166.8
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove rear seat cushion | Model 292 with code U80 (115 V socket) | AR91.12-P-1021GQC |
| Model 166.0 with code U80 (115 V socket) 60 % rear seat cushion | AR91.12-P-1020GQ | ||
| 3 | Remove rear backrest | Model 292 with code U80 (115 V socket) | AR91.12-P-1721GQC |
| Model 166.0 with code U80 (115 V socket) 60% rear seat | AR91.12-P-1620GQ | ||
| 4 | Remove left rear door sill molding | Model 166.0, 292 with code U80 (115 V socket) | AR68.30-P-4100GQ |
| 5 | Lift floor covering | Model 292 with code U80 (115 V socket) | AR68.20-P-4800GQC |
| Model 166.8 with code U80 (115 V socket) | AR68.20-P-4800GQX | ||
| Model 166.0 with code U80 (115 V socket) | AR68.20-P-4800GQ | ||
| 6 | Detach electrical connection from DC/AC converter control unit (N24/3) | ||
| 7.1 | Unscrew bolts | Model 166.0, 292 with code U80 (115 V socket) | |
| 7.2 | Unscrew the nuts | Model 166.8 with code U80 (115 V socket) | |
| 8 | Remove DC/AC converter control unit (N24/3) | ||
| 9 | Install in the reverse order |
