Remove/Install Accelerator Pedal - AR30.12-P-1321GZ

MODEL 164, 166, 292

Shown on MODEL 164

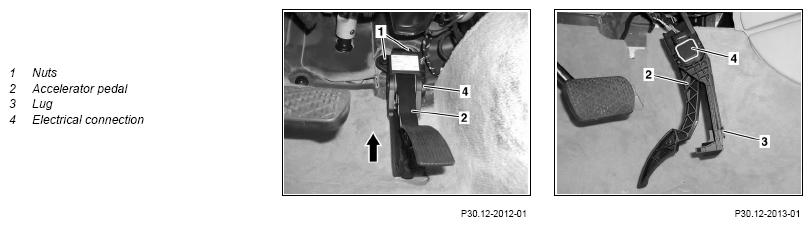

Fig 1: Accelerator Pedal Components Location - Model 166 (Shown On Model 164)

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
2	Remove cover under the instrument panel on the driver-side	Model 166, 292	AR68.10-P-1500GQ
		Model 164	AR68.10-P-1500GZ
3	Unscrew nuts (1)
4	Pull out the accelerator pedal (2) in the upper part slightly and then push upwards in order to loosen the lug (3)
5	Remove accelerator pedal (2)
6	Disconnect electrical connection (4)
7	Install in the reverse order
