Fill Automatic Transmission With Transmission Oil - AR27.00-P-0270EWN
TRANSMISSION 725.0 as of model year 2015

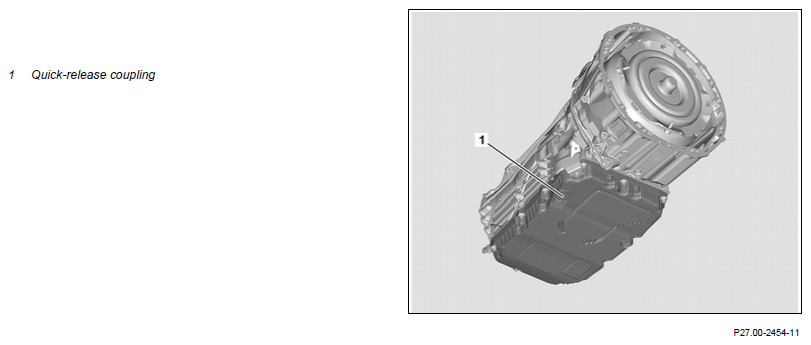

Shown on transmission 725.004

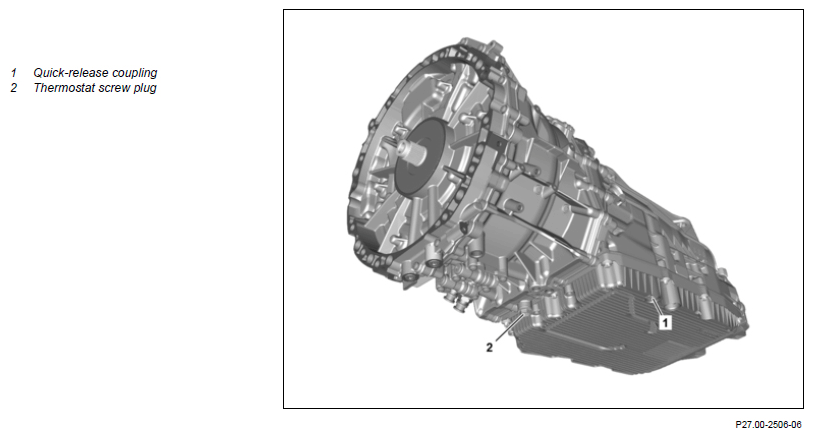

Shown on transmission 725.007
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Fill with transmission oil | |||
| 1 | Shift transmission to neutral position and secure vehicle against rolling away. | ||
| 2 | Lift vehicle with lifting platform. | Transmission 725.0 in model 463 as of model year 2019 |
AR00.60-P-1005-01XG |
| Transmission 725.0 in model 257 as of model year 2015 |
AR00.60-P-1005-02FR | ||
| Transmission 725.0 in model 205, 213, 238, 253 as of model year 2015 |
AR00.60-P-1002LWG | ||
| Transmission 725.0 in model 172 as of model year 2015 |
AR00.60-P-1000V | ||
| Transmission 725.0 in model 166, 292 as of model year 2015 |
AR00.60-P-1000GZ | ||
| Transmission 725.0 in model 231 as of model year 2015 |
AR00.60-P-1000TX | ||
| Transmission 725.0 in model 217, 222 as of model year 2015 |
AR00.60-P-1000LF | ||
| Transmission 725.0 in model 207 as of model year 2015 |
AR00.60-P-0100CW | ||
| Transmission 725.0 in model 212, 218 as of model year 2015 |
AR00.60-P-0100EWS | ||
Adapter |
Fig 3 | ||
| 3 | Remove trim under transmission. | Transmission 725.0 in model 463 as of model year 2019 |
AR61.20-P-1105XG |
| Transmission 725.0 in model 257 as of model year 2015 |
AR61.20-P-1105FR | ||
| Transmission 725.0 in model 172.4 with engine 651 as of model year 2015 |
AR94.30-P-5300W | ||
| Transmission 725.0 in model 207, 212, 218 with engine 642 as of model year 2015 Transmission 725.0 in model 207, 212, 218 with engine 651 as of model year 2015 |
AR94.30-P-5300EW | ||
| Transmission 725.0 in model 172.4 with engine 274 as of model year 2015 Transmission 725.0 in model 172.4 with engine 276 as of model year 2015 |
AR61.20-P-1105W | ||
| Transmission 725.0 in model 205, 253 with engine 177 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 274 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 276 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 651 as of model year 2015 Transmission 725.0 in model 253 with engine 642 as of model year 2015 |
AR61.20-P-1105LW | ||
| Transmission 725.0 in model 231 with engine 276 as of model year 2015 Transmission 725.0 in model 231 with engine 278 as of model year 2015 |
AR61.20-P-1105RK | ||
| Transmission 725.0 in model 213 with engine 177 as of model year 2015 Transmission 725.0 in model 213 with engine 642 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 274 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 276 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 654 as of model year 2015 |
AR61.20-P-1105LWE | ||
| Transmission 725.0 in model 217, 222 with engine 176 as of model year 2015 Transmission 725.0 in model 217, 222 with engine 177 as of model year 2015 Transmission 725.0 in model 217, 222 with engine 278 as of model year 2015 Transmission 725.0 in model 222 with engine 256 as of model year 2015 Transmission 725.0 in model 222 with engine 276 as of model year 2015 Transmission 725.0 in model 222 with engine 642 as of model year 2015 Transmission 725.0 in model 222 with engine 656 as of model year 2015 |
AR61.20-P-1105LF | ||
| Transmission 725.0 in model 218 with engine 276 as of model year 2015 Transmission 725.0 in model 218 with engine 278 as of model year 2015 |
AR61.20-P-1105EW | ||
| Transmission 725.0 in model 166 with engine 651 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 276 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 278 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 642 as of model year 2015 |
AR61.30-P-1001GQ | ||
| 4 | Position suitable oil receptacle under thermostat screw plug (2). | ||
| 5 | Unscrew thermostat screw plug (2) with spring and thermostat element. | Transmission 725.007/017/033/047 as of model year 2015 |
|
| 6 | Screw adapter with sealing ring into opening for thermostat element. | Transmission 725.007/017/033/047 as of model year 2015 |
Figure |
| 7 | Position suitable oil receptacle under quick-release fastener (1) of oil pan. | ||
| 8 | Unscrew quick-release fastener (1). | Figure | |
| 9 |
Attach adapter and connect oil dispenser. 000 588 06 82 00 Oil dispenser |
Adjust air pressure at oil dispenser to 2 bar at the highest before filling transmission. Otherwise the oil pan may be damaged. |
WS18.00-P-0026B |
Adapter |
Fig 5 | ||
as of model year 2015 Adapter |
Figure | ||
| 10 | Pump transmission oil into transmission. | ||
| Automatic transmission fluids (ATF) (specification 236.17) | BB00.40-P-0236-17A | ||
| *BF27.00-P-1001-011 | |||
| 11 |
Disconnect adapter and screw in oil dispenser and quick-release fastener (1). 000 588 06 82 00 Oil dispenser |
WS18.00-P-0026B | |
as of model year 2015 Adapter |
Fig 5 | ||
as of model year 2015 Adapter |
Figure | ||
| 12.1 | Start test routine, check transmission oil level and correct if necessary. | When using an oil level sensor. | AR27.00-P-0270-02EWN |
| Transmission 725.0 in model 257 as of model year 2015 |
AD00.00-P-2000-06FR | ||
| Transmission 725.0 in model 205, 213, 217, 222, 253 as of model year 2015 Transmission 725.0 in model 463 as of model year 2019 |
AD00.00-P-2000-04B | ||
| Transmission 725.0 in model 166, 172, 207, 212, 218, 231, 292 as of model year 2015 |
AD00.00-P-2000-04A | ||
| Transmission 725.0 in model 238 as of model year 2015 |
AD00.00-P-2000-06LWO | ||
| 000 588 09 19 00 Oil level sensor | WS27.00-P-0188B | ||
| 000 588 06 82 00 Oil dispenser | WS18.00-P-0026B | ||
| Automatic transmission fluids (ATF) (specification 236.17) | BB00.40-P-0236-17A | ||
| MB Plastilube brake paste (brownish) | *BR00.45-Z-1084-06A | ||
| Fig 4 | |||
as of model year 2015 Adapter |
Figure | ||
as of model year 2015 Adapter |
Fig 5 | ||
| Figure | |||
| 12.2 | Start test routine, check transmission oil level and correct if necessary. | When not using an oil level sensor. | AR27.00-P-0270-03EWN |
| Transmission 725.0 in model 257 as of model year 2015 |
AD00.00-P-2000-06FR | ||
| Transmission 725.0 in model 238 as of model year 2015 |
AD00.00-P-2000-06LWO | ||
| Transmission 725.0 in model 166, 172, 207, 212, 218, 231, 292 as of model year 2015 |
AD00.00-P-2000-04A | ||
| Transmission 725.0 in model 205, 213, 217, 222, 253 as of model year 2015 Transmission 725.0 in model 463 as of model year 2019 |
AD00.00-P-2000-04B | ||
| Fig 4 | |||
| Figure | |||
| 13 | Remove adapter with sealing ring from opening for thermostat element. | Transmission 725.007/017/033/047 as of model year 2015 |
Figure |
| 14 | Screw in thermostat screw plug (2) with spring and thermostat element. | Transmission 725.007/017/033/047 as of model year 2015 |
|
| 15 | Install trim under transmission. | Transmission 725.0 in model 463 as of model year 2019 |
AR61.20-P-1105XG |
| Transmission 725.0 in model 257 as of model year 2015 |
AR61.20-P-1105FR | ||
| Transmission 725.0 in model 172.4 with engine 651 as of model year 2015 |
AR94.30-P-5300W | ||
| Transmission 725.0 in model 207, 212, 218 with engine 642 as of model year 2015 Transmission 725.0 in model 207, 212, 218 with engine 651 as of model year 2015 |
AR94.30-P-5300EW | ||
| Transmission 725.0 in model 172.4 with engine 274 as of model year 2015 Transmission 725.0 in model 172.4 with engine 276 as of model year 2015 |
AR61.20-P-1105W | ||
| Transmission 725.0 in model 205, 253 with engine 177 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 274 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 276 as of model year 2015 Transmission 725.0 in model 205, 253 with engine 651 as of model year 2015 Transmission 725.0 in model 253 with engine 642 as of model year 2015 |
AR61.20-P-1105LW | ||
| Transmission 725.0 in model 231 with engine 276 as of model year 2015 Transmission 725.0 in model 231 with engine 278 as of model year 2015 |
AR61.20-P-1105RK | ||
| Transmission 725.0 in model 213 with engine 177 as of model year 2015 Transmission 725.0 in model 213 with engine 642 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 274 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 276 as of model year 2015 Transmission 725.0 in model 213, 238 with engine 654 as of model year 2015 |
AR61.20-P-1105LWE | ||
| Transmission 725.0 in model 217, 222 with engine 176 as of model year 2015 Transmission 725.0 in model 217, 222 with engine 177 as of model year 2015 Transmission 725.0 in model 217, 222 with engine 278 as of model year 2015 Transmission 725.0 in model 222 with engine 256 as of model year 2015 Transmission 725.0 in model 222 with engine 276 as of model year 2015 Transmission 725.0 in model 222 with engine 642 as of model year 2015 Transmission 725.0 in model 222 with engine 656 as of model year 2015 |
AR61.20-P-1105LF | ||
| Transmission 725.0 in model 218 with engine 276 as of model year 2015 Transmission 725.0 in model 218 with engine 278 as of model year 2015 |
AR61.20-P-1105EW | ||
| Transmission 725.0 in model 166 with engine 651 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 276 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 278 as of model year 2015 Transmission 725.0 in model 166, 292 with engine 642 as of model year 2015 |
AR61.30-P-1001GQ | ||
| 16 | Lower the vehicle from the vehicle lift. | Transmission 725.0 in model 463 as of model year 2019 |
AR00.60-P-1005-01XG |
| Transmission 725.0 in model 257 as of model year 2015 |
AR00.60-P-1005-02FR | ||
| Transmission 725.0 in model 205, 213, 238, 253 as of model year 2015 |
AR00.60-P-1002LWG | ||
| Transmission 725.0 in model 166, 292 as of model year 2015 |
AR00.60-P-1000GZ | ||
| Transmission 725.0 in model 172 as of model year 2015 |
AR00.60-P-1000V | ||
| Transmission 725.0 in model 231 as of model year 2015 |
AR00.60-P-1000TX | ||
| Transmission 725.0 in model 217, 222 as of model year 2015 |
AR00.60-P-1000LF | ||
| Transmission 725.0 in model 207 as of model year 2015 |
AR00.60-P-0100CW | ||
| Transmission 725.0 in model 212, 218 as of model year 2015 |
AR00.60-P-0100EWS | ||
as of model year 2018 Adapter |
Fig 3 |
AUTOMATIC TRANSMISSION
| Number | Designation | Transmission 725.0 (except 725.007/017/033/047) | Transmission 725.007/017/033/047 | |
|---|---|---|---|---|
| BF27.00-P-1001-011 | Filling capacity | with complete refill Liter | ≈10 | ≈11 |
| Specifications for Operating Fluids, sheet | BB00.40-P-0236-17A | BB00.40-P-0236-17A | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1084-06A | MB Plastilube brake paste (brownish) | A 002 989 37 51 |
