Adjust Front Axle Toe - AR40.20-P-0264CW
MODEL 166, 172, 204, 207, 212, 218, 292
MODIFICATION NOTES
| 20.06.2013 | Total front axle toe at vehicle level | BE40.20-P-1001-07I | |
| 02.11.2015 | Total front axle toe at vehicle level | BE40.20-P-1001-07T | |
| 02.11.2015 | Permissible difference in front axle toe between right and left side of vehicle | BE40.20-P-1002-07T |
Shown with model 204.0
Shown on model 204.0 except code M005 (4MATIC)
Shown on model 166
Shown on model 204.0 except code M005 (4MATIC)
Shown on model 204.0 except code M005 (4MATIC)
| Check | |||
| 1 | Carry out initial measurement | Model 166, 292 | AR40.20-P-0200GQ |
| Model 204 | AR40.20-P-0200CW | ||
| Model 172, 207, 212, 218 | AR40.20-P-0200EW | ||
| Adjust | |||
| 2 | Deactivate easy entry and exit feature for steering wheel | Model 166, 172, 204, 207, 212, 218, 292 with code 275 (Memory package) | |
| Model 172 with code 275 (Memory package) The easy entry and exit feature for the steering wheel must be deactivated so that the steering wheel, e.g. when opening or closing the driver door, it doesn't move to another position. Otherwise, the headliner or the windshield may be damaged if the holding device (055) is installed. |
AR54.30-P-1000-02W | ||
| 3 | Check center position of steering gear (arrow) and center position of steering wheel | If the center position of the steering gear (arrow) and the center position of the steering wheel are not in alignment. ↓ Move steering wheel by one tooth only. |
|
| Model 204, 207 | AR46.10-P-0100CW | ||
| Model 166, 172, 212, 218, 292 | AR46.10-P-0100EW | ||

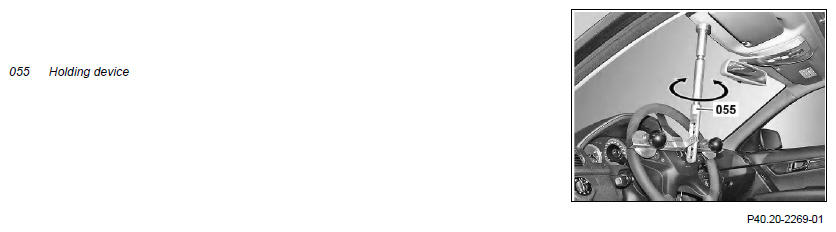

| 4 | Fix steering wheel in center position using holding device (055); to do this, insert the holding device (055) in front of the sun visor | The emblem in the steering wheel must be protected against damage. Otherwise the holding device (055) may make an indent on the emblem. |
Fig 1 |

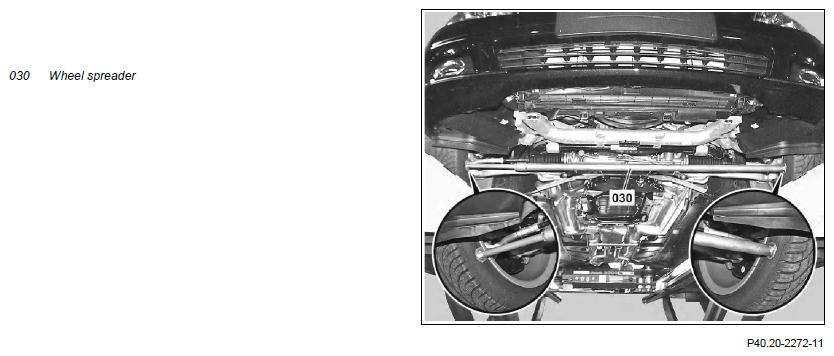

| 5 | Insert wheel spreader (030), as shown, in front direction of travel between the insides of the wheel | ||

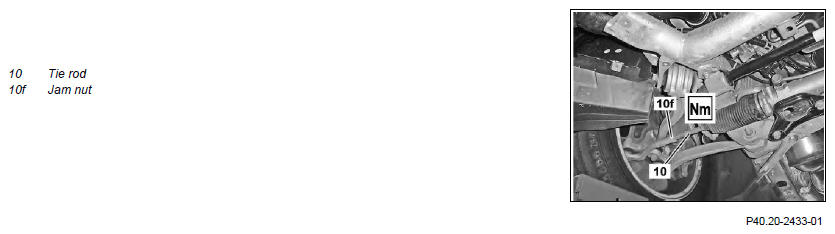

| 6 | Counterhold tie rod (10) at the hexagon and loosen jam nut (10f) | ||
| 7 | Adjust toe by turning tie rod (10) | Model 218 (except 218.367/368/374/375/376/391/392/393/394/967/968/974/975/976/991/992/993/994) with code 489 (AIRMATIC) Model 218.3 (except 218.367/368/374/375/376/391/392/393/394) except code 489 (AIRMATIC) Model 218.367/368/391/393/394/967/968/991/993/994 with code 489 (AIRMATIC) Model 218.367/368/391/393/394 except code 489 (AIRMATIC) Model 218.374 as of 12/1/11 Model 218.374 up to 11/30/11 Model 218.375 Model 218.376/392/976/992 Model 218.9 (except 218.967/968/974/975/976/991/992/993/994) except code 489 (AIRMATIC) Model 218.967/968/991/993/994 except code 489 (AIRMATIC) Model 218.974/975 Total front axle toe at vehicle level |
*BE40.20-P-1002-07R |
| Model 212.0 (except 212.002/025/056/067/072/074/075/076/077/08/090/091/092/093/094/097) with code 485 (DIRECT CONTROL suspension) Model 212.0 (except 212.002/025/056/067/072/074/075/076/077/08/090/091/092/093/094/097) with code 489 (AIRMATIC) Model 212.0 (except 212.002/025/056/067/072/074/075/076/077/08/090/091/092/093/094/097) with code 677 (AGILITY CONTROL suspension) Model 212.0 (except 212.002/025/056/072/074/075/076/077/092) with code 482 (Off-road comfort suspension) Model 212.002 with code 482 (Off-road comfort suspension) except code P25 (BlueEFFICIENCY Edition) Model 212.002 with code 485 (DIRECT CONTROL suspension) except code P25 (BlueEFFICIENCY Edition) Model 212.002 with code 489 (AIRMATIC) except code P25 (BlueEFFICIENCY Edition) Model 212.002 with code 677 (AGILITY CONTROL suspension) except code P25 (BlueEFFICIENCY Edition) Model 212.002 with code P25 (BlueEFFICIENCY Edition) Model 212.025/056/072 with code 482 (Off-road comfort suspension) except code Z04 (Light armoring) Model 212.025/056/072 with code 485 (DIRECT CONTROL suspension) except code Z04 (Light armoring) Model 212.025/056/072 with code 489 (AIRMATIC) except code Z04 (Light armoring) Model 212.025/056/072 with code 677 (AGILITY CONTROL suspension) except code Z04 (Light armoring) Model 212.025/056/072 with code Z04 (Light armoring) Model 212.067/08/090/091/093/094/097/267/28/291/293/294/297 with code 489 (AIRMATIC) Model 212.067/08/090/091/093/094/097 with code 485 (DIRECT CONTROL suspension) Model 212.067/08/090/091/093/094/097 with code 677 (AGILITY CONTROL suspension) Model 212.074/077/274/277 as of 12/1/11, 212.075/275 Model 212.074/077/274/277 up to 11/30/11 Model 212.076/092/276/292 Model 212.1 with code 482 (Off-road comfort suspension) Model 212.1 with code 485 (DIRECT CONTROL suspension) Model 212.2 (except 212.267/274/275/276/277/28/291/292/293/294/297) with code 482 (Off-road comfort suspension) Model 212.2 (except 212.267/274/275/276/277/28/291/292/293/294/297) with code 485 (DIRECT CONTROL suspension) Model 212.2 (except 212.267/274/275/276/277/28/291/292/293/294/297) with code 489 (AIRMATIC) |
*BE40.20-P-1001-07BA | ||
| Model 207 (except 207.367/388) with code 483 (ADVANCED AGILITY package) Model 207 (except 207.367/388) with code 486 (Sports suspension) Model 207.367/388 Total front axle toe at vehicle level |
*BE40.20-P-1001-07I | ||
| Model 204.9 with code 460 (Canada version) Model 204.9 with code 482 (Off-road comfort suspension) Model 204.9 with code 485 (Comfort suspension) except code 460 (Canada version) except code 494 (US version) except code 830 (Vehicles for China, additional parts) as of model refinement Model 204.9 with code 485 (Comfort suspension) except code 460 (Canada version) except code 494 (US version) except code 830 (Vehicles for China, additional parts) up to model refinement Model 204.9 with code 486 (Sports suspension) Model 204.9 with code 494 (US version) Model 204.9 with code 830 (Vehicles for China, additional parts) Total front axle toe at vehicle level |
*BE40.20-P-1001-07ZA | ||
| Model 172 Permissible difference in front axle toe between right and left sides of vehicle | *BE40.20-P-1002-07T | ||
| Model 172 Total front axle toe at vehicle level | *BE40.20-P-1001-07T | ||
| Model 204.0 (except 204.077), 204.2 (except 204.277) with code 482 (Off-road comfort suspension) as of model refinement Model 204.0 (except 204.077), 204.2 (except 204.277) with code 482 (Off-road comfort suspension) up to model refinement, with cross strut old version Model 204.0 (except 204.077), 204.2 (except 204.277) with code 482 (Off-road comfort suspension) up to model refinement, with cross strut new version Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 483 (ADVANCED AGILITY package) as of model refinement Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 483 (ADVANCED AGILITY package) up to model refinement, with cross strut old version Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 483 (ADVANCED AGILITY package) up to model refinement, with cross strut new version Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 485 (Comfort suspension) as of model refinement Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 485 (Comfort suspension) up to model refinement, with cross strut old version Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 485 (Comfort suspension) up to model refinement, with cross strut new version Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 486 (Sports suspension) as of model refinement Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 486 (Sports suspension) up to model refinement, with cross strut old version Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 486 (Sports suspension) up to model refinement, with cross strut new version Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 677 (AGILITY CONTROL suspension) as of model refinement Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 677 (AGILITY CONTROL suspension) up to model refinement, with cross strut old version Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 677 (AGILITY CONTROL suspension) up to model refinement, with cross strut new version Model 204.077/277 as of model refinement Model 204.077/277 up to model refinement Model 204.08/09/28/29/38 with code 486 (Sports suspension) Model 204.08/09/28/29/38 with code 677 (AGILITY CONTROL |
*BE40.20-P-1001-07Y | ||
| Model 166.0 (except 166.074) except code 489 (AIRMATIC) except code 491 (US version) except code Z04 (Light armoring) except code Z05 (B5 armoring on special protection version) Model 166.0 (except 166.074) with code 489 (AIRMATIC) Model 166.003/004 with code 491 (US version) Model 166.023/024/073 with code Z04 (Light armoring) Model 166.023/024/073 with code Z05 (B5 armoring on special protection version) Model 166.074/874 Model 166.8 (except 166.874) Model 292 except code 489 (AIRMATIC) Model 292 with code 489 (AIRMATIC) Total front axle toe at vehicle level |
*BE40.20-P-1001-07M | ||
| 8 | Tighten jam nut (10f) | *BA46.40-P-1002-01E | |
Model 207 Model 212 Model 218 Jam nut, tie rod to inner tie rod |
*BA46.40-P-1002-01N | ||
Model 292 Self-locking nut, tie rod to inner tie rod |
*BA46.40-P-1001-01K | ||
| 9 | Remove holding device (055) | Fig 1 | |
| 10 | Remove wheel spreader (030) | ||
| 11 | Check boot for twisting | If the boot is twisted ↓ Straighten out boot |
|
| 12 | Activate easy entry/exit feature for steering wheel | Model 166, 172, 204, 207, 212, 218, 292 with code 275 (Memory package) Model 172 with code 275 (Memory package) |
AR54.30-P-1000-02W |
| Check | |||
| 13 | Carry out final measurement | Model 166, 292 | AR40.20-P-0200GQ |
| Model 204 | AR40.20-P-0200CW | ||
| Model 172, 207, 212, 218 | AR40.20-P-0200EW |
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 212.0 with code 485, except 4MATIC | Model 212.0 with code 485, with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | - |
| +4.85° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +4.16° | ∠° | - | - | ||
| +4.08° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +2.66° | ∠° | - | 0° 9' (± 10') | ||
| +2.60° | ∠° | - | - | ||
| +2.56° | ∠° | 0° 9' (± 10') | - | ||
| +1.49° | ∠° | - | - | ||
| +1.18° | ∠° | - | - | ||
| +0.27° | ∠° | - | - | ||
| +0.25° | ∠° | - | - | ||
| +0.12° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 212.0 with code 486/677, except 4MATIC | Model 212.0 with code 486/677, with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | - |
| +4.85° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +4.16° | ∠° | - | - | ||
| +4.08° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +2.66° | ∠° | - | - | ||
| +2.60° | ∠° | - | - | ||
| +2.56° | ∠° | - | - | ||
| +1.49° | ∠° | - | - | ||
| +1.18° | ∠° | - | - | ||
| +0.27° | ∠° | - | - | ||
| +0.25° | ∠° | - | 0° 9' (± 10') | ||
| +0.12° | ∠° | 0° 9' (± 10') | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 212.002 with code P25 | Model 212.0/2 with code 482 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | - |
| +4.85° | ∠° | - | 0° 9' (± 10') | ||
| +4.20° | ∠° | - | - | ||
| +4.16° | ∠° | - | - | ||
| +4.08° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +2.66° | ∠° | - | - | ||
| +2.60° | ∠° | - | - | ||
| +2.56° | ∠° | - | - | ||
| +1.49° | ∠° | 0° 10' (± 10') | - | ||
| +1.18° | ∠° | - | - | ||
| +0.27° | ∠° | - | - | ||
| +0.25° | ∠° | - | - | ||
| +0.12° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 212.0/2 with code 489, except 4MATIC | Model 212.0/2 with code 489, with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | - |
| +4.85° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +4.16° | ∠° | - | - | ||
| +4.08° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +2.66° | ∠° | - | - | ||
| +2.60° | ∠° | - | - | ||
| +2.56° | ∠° | - | - | ||
| +1.49° | ∠° | - | - | ||
| +1.18° | ∠° | - | - | ||
| +0.27° | ∠° | 0° 9' (± 10') | - | ||
| +0.25° | ∠° | - | 0° 9' (± 10') | ||
| +0.12° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 212.1 with code 482 | Model 212.1 with code 485 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | - |
| +4.85° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +4.16° | ∠° | - | - | ||
| +4.08° | ∠° | 0° 9' (± 10') | - | ||
| +2.67° | ∠° | - | - | ||
| +2.66° | ∠° | - | - | ||
| +2.60° | ∠° | - | - | ||
| +2.56° | ∠° | - | 0° 9' (± 10') | ||
| +1.49° | ∠° | - | - | ||
| +1.18° | ∠° | - | - | ||
| +0.27° | ∠° | - | - | ||
| +0.25° | ∠° | - | - | ||
| +0.12° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 212.2 with code 485, except 4MATIC | Model 212.2 with code 485, with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | - |
| +4.85° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +4.16° | ∠° | - | - | ||
| +4.08° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +2.66° | ∠° | - | 0° 9' (± 10') | ||
| +2.60° | ∠° | - | - | ||
| +2.56° | ∠° | 0° 9' (± 10') | - | ||
| +1.49° | ∠° | - | - | ||
| +1.18° | ∠° | - | - | ||
| +0.27° | ∠° | - | - | ||
| +0.25° | ∠° | - | - | ||
| +0.12° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 212.2 with code 486/677, except 4MATIC | Model 212.2 with code 486/677, with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | - |
| +4.85° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +4.16° | ∠° | - | - | ||
| +4.08° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +2.66° | ∠° | - | - | ||
| +2.60° | ∠° | - | - | ||
| +2.56° | ∠° | - | - | ||
| +1.49° | ∠° | - | - | ||
| +1.18° | ∠° | - | - | ||
| +0.27° | ∠° | - | - | ||
| +0.25° | ∠° | - | 0° 9' (± 10') | ||
| +0.12° | ∠° | 0° 9' (± 10') | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | MODEL 212.025/056/072 with CODE Z04 | Model 212 AMG up to 11.2011, except 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | - |
| +4.85° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +4.16° | ∠° | - | 0° 30' (± 7') | ||
| +4.08° | ∠° | - | - | ||
| +2.67° | ∠° | - | 0° 20' (± 7') | ||
| +2.66° | ∠° | - | - | ||
| +2.60° | ∠° | - | - | ||
| +2.56° | ∠° | - | - | ||
| +1.49° | ∠° | - | - | ||
| +1.18° | ∠° | - | 0° 10' (± 7') | ||
| +0.27° | ∠° | - | - | ||
| +0.25° | ∠° | 0° 9' (± 10') | - | ||
| +0.12° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 212 AMG as of 12.2011, except 4MATIC | Model 212 AMG with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07BA | Total front axle toe at vehicle level | +5.80° | ∠° | - | 0° 30' (± 7') |
| +4.85° | ∠° | - | - | ||
| +4.20° | ∠° | - | 0° 18' (± 7') | ||
| +4.16° | ∠° | 0° 30' (± 7') | - | ||
| +4.08° | ∠° | - | - | ||
| +2.67° | ∠° | 0° 20' (± 7') | - | ||
| +2.66° | ∠° | - | - | ||
| +2.60° | ∠° | - | 0° 7' (± 7') | ||
| +2.56° | ∠° | - | - | ||
| +1.49° | ∠° | - | - | ||
| +1.18° | ∠° | 0° 10' (± 7') | - | ||
| +0.27° | ∠° | - | - | ||
| +0.25° | ∠° | - | - | ||
| +0.12° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 207 with code 483/485/486 except 4Matic | Model 207 with 4Matic | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07I | Total front axle toe at vehicle level | -2.06° | ∠° | - | 0° 10' (± 10') |
| -0.34° | ∠° | - | 0° 10' (± 10') | ||
| +1.38° | ∠° | - | 0° 10' (± 10') | ||
| +4.13° | ∠° | 0° 10' (± 10') | - | ||
| +5.72° | 0° 10' (± 10') | - | |||
| +7.31° | 0° 10' (± 10') | - | |||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 166.0 except code 489/491/Z04/Z05 | Model 166.0 with code 489, model 166.8 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07M | Total front axle toe at vehicle level | 5.26° | ∠° | - | 0° 14' (± 7') |
| 6.49° | ∠° | - | - | ||
| 7.97° | ∠° | - | - | ||
| 9.07° | ∠° | 0° 25' (± 7') | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 166.0 with code 491 | Model 166.0 with code Z04/Z05 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07M | Total front axle toe at vehicle level | 5.26° | ∠° | - | 0° 14' (± 7') |
| 6.49° | ∠° | - | - | ||
| 7.97° | ∠° | 0° 25' (± 7') | - | ||
| 9.07° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 166 AMG | Model 292 except code 489 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07M | Total front axle toe at vehicle level | 5.26° | ∠° | 0° 14' (± 7') | - |
| 6.49° | ∠° | - | 0° 23' (± 7') | ||
| 7.97° | ∠° | - | - | ||
| 9.07° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 292 with code 489 | Model 292 AMG | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07M | Total front axle toe at vehicle level | 5.26° | ∠° | 0° 14' (± 7') | 0° 14' (± 7') |
| 6.49° | ∠° | - | - | ||
| 7.97° | ∠° | - | - | ||
| 9.07° | ∠° | - | - | ||
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 172.403/447/448/457 up to model year 2015 except code 483/486 | Model 172.403/447/448/457 up to model year 2015 with code 483/486 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07T | Total front axle toe at vehicle level | 1.65° | ∠° | - | 0° 10' (± 10') |
| 2.46° | ∠° | - | - | ||
| 3.26° | ∠° | 0° 10' (± 10') | - | ||
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 172.403/447/448/457 as of model year 2016 except code 483/486, model 172.404/431/434/438 except code 483/486 | Model 172.403/447/448/457 as of model year 2016 with code 483/486, model 172.404/431/434/438 with code 483/486 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07T | Total front axle toe at vehicle level | 1.65° | ∠° | - | 0° 9' (± 10') |
| 2.46° | ∠° | - | - | ||
| 3.26° | ∠° | 0° 9' (± 10') | - | ||
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 172.466 AMG | Model 172.475 AMG | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07T | Total front axle toe at vehicle level | 1.65° | ∠° | - | - |
| 2.46° | ∠° | 0° 17' (± 10') | 0° 13' (± 10') | ||
| 3.26° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.0/2 up to model refinement package, with cross strut (old version), with code 482 | Model 204.0/2 up to model refinement package, with cross strut (new version), with code 482 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | - | +0°10' (± 10') |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | +0°10' (± 10') | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | - | - | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | - | - | ||
| +6.68° | ∠° | - | - | ||
| +6.45° | ∠° | - | - | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | - | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | - | - | ||
| +4.30° | ∠° | - | - | ||
| +2.24° | ∠° | - | - | ||
| -0.34° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.0/2 up to model refinement package, with cross strut (old version), with code 483/486, except 4Matic | Model 204.0/2 up to model refinement package, with cross strut (new version), with code 483/486, except 4Matic | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | - | - |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | - | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | - | +0°10' (± 10') | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | - | - | ||
| +6.68° | ∠° | - | - | ||
| +6.45° | ∠° | - | - | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | - | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | - | - | ||
| +4.30° | ∠° | +0°10' (± 10') | - | ||
| +2.24° | ∠° | - | - | ||
| -0.34° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.0/2 up to model refinement package, with cross strut (old version), with code 485/677, except 4Matic | Model 204.0/2 up to model refinement package, with cross strut (new version), with code 485/677, except 4Matic | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | - | - |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | - | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | - | +0°10' (± 10') | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | - | - | ||
| +6.68° | ∠° | +0°10' (± 10') | - | ||
| +6.45° | ∠° | - | - | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | - | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | - | - | ||
| +4.30° | ∠° | - | - | ||
| +2.24° | ∠° | - | - | ||
| -0.34° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.0/2 as of model refinement package, with code 482 | Model 204.0/2 as of model refinement package, with code 483/486, except 4Matic | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | +0°10' (± 10') | - |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | - | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | - | +0°10' (± 10') | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | - | - | ||
| +6.68° | ∠° | - | - | ||
| +6.45° | ∠° | - | - | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | - | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | - | - | ||
| +4.30° | ∠° | - | - | ||
| +2.24° | ∠° | - | - | ||
| -0.34° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.0/2 as of model refinement package, with code 485, except 4Matic | Model 204.0/2 as of model refinement package, with code 677, except 4Matic | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | - | - |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | - | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | +0°10' (± 10') | +0°10' (± 10') | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | - | - | ||
| +6.68° | ∠° | - | - | ||
| +6.45° | ∠° | - | - | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | - | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | - | - | ||
| +4.30° | ° | - | - | ||
| +2.24° | ° | - | - | ||
| -0.34° | ° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.3 with code 483/486, except code P84, except 4Matic | Model 204.3 with code 677, except 4Matic | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | - | - |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | - | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | +0°10' (± 10') | +0°10' (± 10') | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | - | - | ||
| +6.68° | ∠° | - | - | ||
| +6.45° | ∠° | - | - | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | - | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | - | - | ||
| +4.30° | ∠° | - | - | ||
| +2.24° | ∠° | - | - | ||
| -0.34° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.3 with code P84 | Model 204.0/2/3 with 4Matic, with code 486 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | - | - |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | - | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | - | - | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | - | - | ||
| +6.68° | ∠° | - | - | ||
| +6.45° | ∠° | - | - | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | - | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | +0°10' (± 10') | - | ||
| +4.30° | ∠° | - | - | ||
| +2.24° | ∠° | - | - | ||
| -0.34° | ∠° | - | +0°10' (± 10') | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.0/2/3 with 4Matic, with code 677 | Model 204.0/2 AMG, up to model refinement package | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | - | - |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | - | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | - | - | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | - | - | ||
| +6.68° | ∠° | - | - | ||
| +6.45° | ∠° | - | +0°20' (± 10') | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | - | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | - | - | ||
| +4.30° | ∠° | - | - | ||
| +2.24° | ∠° | +0°10' (± 10') | - | ||
| -0.34° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.0/2 AMG, as of model refinement package, model 204.3 AMG, except code P98 | Model 204.3 AMG, with code P98 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07Y | Total front axle toe at vehicle level | +10.64° | ∠° | - | - |
| +10.06° | ∠° | - | - | ||
| +9.06° | ∠° | - | - | ||
| +8.47° | ∠° | - | - | ||
| +8.26° | ∠° | - | - | ||
| +8.16° | ∠° | - | - | ||
| +6.76° | ∠° | +0°21' (± 10') | - | ||
| +6.68° | ∠° | - | - | ||
| +6.45° | ∠° | - | - | ||
| +5.88° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +5.07° | ∠° | - | +0°15' (± 10') | ||
| +4.98° | ∠° | - | - | ||
| +4.92° | ∠° | - | - | ||
| +4.30° | ∠° | - | - | ||
| +2.24° | ∠° | - | - | ||
| -0.34° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.9 with code 485, except code 460/494/830 | Model 204.9 as of model refinement package, with code 491, except code 460/494/830 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07ZA | Total front axle toe at vehicle level | +10.06° | ∠° | - | - |
| +8.47° | ∠° | - | - | ||
| +8.16° | ∠° | +0° 10' (± 10') | - | ||
| +5.29° | ∠° | - | +0° 10' (± 10') | ||
| +4.98° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.9 with code 482 | Model 204.9 with code 486 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07ZA | Total front axle toe at vehicle level | +10.06° | ∠° | +0° 10' (± 10') | - |
| +8.47° | ∠° | - | - | ||
| +8.16° | ∠° | - | - | ||
| +5.29° | ∠° | - | - | ||
| +4.98° | ∠° | - | +0° 10' (± 10') | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 204.9 with code 460/494/830 | ||
|---|---|---|---|---|
| BE40.20-P-1001-07ZA | Total front axle toe at vehicle level | +10.06° | ∠° | - |
| +8.47° | ∠° | +0° 10' (± 10') | ||
| +8.16° | ∠° | - | ||
| +5.29° | ∠° | - | ||
| +4.98° | ∠° | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 218.3 except 4MATIC, except code 489 | Model 218.9 except 4MATIC, except code 489 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-07R | Total front axle toe at vehicle level | -1.16° | ∠° | - | - |
| -0.49° | ∠° | - | - | ||
| +0.18° | ∠° | - | - | ||
| +0, 85 | ∠° | - | - | ||
| +1.08° | ∠° | 0° 10' (± 10') | 0° 10' (± 10') | ||
| +1.18° | ∠° | - | - | ||
| +1.52° | ∠° | - | - | ||
| +2.19° | ∠° | - | - | ||
| +2.59° | ∠° | 0° 10' (± 10') | 0° 10' (± 10') | ||
| +2.60° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +4.09° | ∠° | 0° 10' (± 10') | 0° 10' (± 10') | ||
| +4.16° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +5.80° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | MODEL 218 except 4MATIC, with CODE 489 | Model 218.3 with 4MATIC, except CODE 489 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-07R | Total front axle toe at vehicle level | -1.16° | ∠° | - | 0° 10' (± 10') |
| -0.49° | ∠° | - | - | ||
| +0.18° | ∠° | - | 0° 10' (± 10') | ||
| +0, 85 | ∠° | - | - | ||
| +1.08° | ∠° | 0° 10' (± 10') | - | ||
| +1.18° | ∠° | - | - | ||
| +1.52° | ∠° | - | 0° 10' (± 10') | ||
| +2.19° | ∠° | - | - | ||
| +2.59° | ∠° | 0° 10' (± 10') | - | ||
| +2.60° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +4.09° | ∠° | 0° 10' (± 10') | - | ||
| +4.16° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +5.80° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | MODEL 218.9 with 4MATIC, except code 489 | MODEL 218 with 4MATIC, with code 489 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-07R | Total front axle toe at vehicle level | -1.16° | ∠° | - | - |
| -0.49° | ∠° | 0° 10' (± 10') | 0° 10' (± 10') | ||
| +0.18° | ∠° | - | - | ||
| +0, 85 | ∠° | 0° 10' (± 10') | 0° 10' (± 10') | ||
| +1.08° | ∠° | - | - | ||
| +1.18° | ∠° | - | - | ||
| +1.52° | ∠° | - | - | ||
| +2.19° | ∠° | 0° 10' (± 10') | 0° 10' (± 10') | ||
| +2.59° | ∠° | - | - | ||
| +2.60° | ∠° | - | - | ||
| +2.67° | ∠° | - | - | ||
| +4.09° | ∠° | - | - | ||
| +4.16° | ∠° | - | - | ||
| +4.20° | ∠° | - | - | ||
| +5.80° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 218.3 AMG up to 11.2011 | Model 218.3 AMG as of 12.2011 except 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-07R | Total front axle toe at vehicle level | -1.16° | ∠° | - | - |
| -0.49° | ∠° | - | - | ||
| +0.18° | ∠° | - | - | ||
| +0, 85 | ∠° | - | - | ||
| +1.08° | ∠° | - | - | ||
| +1.18° | ∠° | 0° 10' (± 7') | 0° 10' (± 7') | ||
| +1.52° | ∠° | - | - | ||
| +2.19° | ∠° | - | - | ||
| +2.59° | ∠° | - | - | ||
| +2.60° | ∠° | - | - | ||
| +2.67° | ∠° | 0° 20' (± 7') | 0° 20' (± 7') | ||
| +4.09° | ∠° | - | - | ||
| +4.16° | ∠° | 0° 30' (± 7) | 0° 30' (± 7) | ||
| +4.20° | ∠° | - | - | ||
| +5.80° | ∠° | - | - | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 218.9 AMG except 4MATIC | Model 218.3/9 AMG with 4MATIC | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-07R | Total front axle toe at vehicle level | -1.16° | ∠° | - | - |
| -0.49° | ∠° | - | - | ||
| +0.18° | ∠° | - | - | ||
| +0, 85 | ∠° | - | - | ||
| +1.08° | ∠° | - | - | ||
| +1.18° | ∠° | 0° 10' (± 7') | - | ||
| +1.52° | ∠° | - | - | ||
| +2.19° | ∠° | - | - | ||
| +2.59° | ∠° | - | - | ||
| +2.60° | ∠° | - | 0° 7' (± 7) | ||
| +2.67° | ∠° | 0° 20' (± 7') | - | ||
| +4.09° | ∠° | - | - | ||
| +4.16° | ∠° | 0° 30' (± 7) | - | ||
| +4.20° | ∠° | - | 0° 18' (± 7) | ||
| +5.80° | ∠° | - | 0° 30' (± 7) | ||
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 172.403/447/448/457 up to model year 2015 except code 483/486 | Model 172.403/447/448/457 up to model year 2015 with code 483/486 | |
|---|---|---|---|---|
| BE40.20-P-1002-07T | Permissible difference in front axle toe between right and left sides of vehicle | ∠° | ± 10' | ± 10' |
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 172.403/447/448/457 as of model year 2016 except code 483/486, model 172.404/431/434/438 except code 483/486 | Model 172.403/447/448/457 as of model year 2016 with code 483/486, model 172.404/431/434/438 with code 483/486 | |
|---|---|---|---|---|
| BE40.20-P-1002-07T | Permissible difference in front axle toe between right and left sides of vehicle | ∠° | ± 10' | ± 10' |
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 172.466 AMG | Model 172.475 AMG | |
|---|---|---|---|---|
| BE40.20-P-1002-07T | Permissible difference in front axle toe between right and left sides of vehicle | ∠° | ± 10' | ± 10' |
TIE ROD
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA46.40-P-1001-01K | Self-locking nut, tie rod to inner tie rod | Nm | 77 | 77 |
TIE ROD
| Number | Designation | Model 172 | |
|---|---|---|---|
| BA46.40-P-1002-01E | Lock nut, tie rod to inner tie rod | Nm | 65 |
TIE ROD
| Number | Designation | Model 204 | Model 207 | |
|---|---|---|---|---|
| BA46.40-P-1002-01N | Jam nut, tie rod to inner tie rod | Nm | 65 | 65 |
TIE ROD
| Number | Designation | Model 212 | Model 218 | |
|---|---|---|---|---|
| BA46.40-P-1002-01N | Jam nut, tie rod to inner tie rod | Nm | 65 | 65 |
