Outlet Air Temperature Sensor, Basic Function - GF83.40-P-2019A

MODEL ALL (CAR)

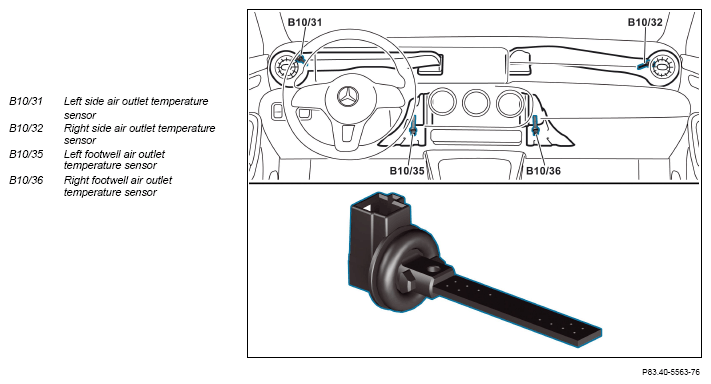

Location

The air outlet temperature sensors are located in the ducts to the side air vents or to the footwell vents.

General

The air outlet temperature sensors record the temperatures in the air ducts to the respective air outlets. The control for the climate control reads in the signals from the air outlet temperature sensors directly.

G12082182

Function requirements
