Air Quality Sensor, Basic Function - GF83.40-P-2022A
MODEL ALL (CAR)
General
The air quality sensor records the concentration of the following pollutants in the outside air:
- Carbon monoxide (CO)

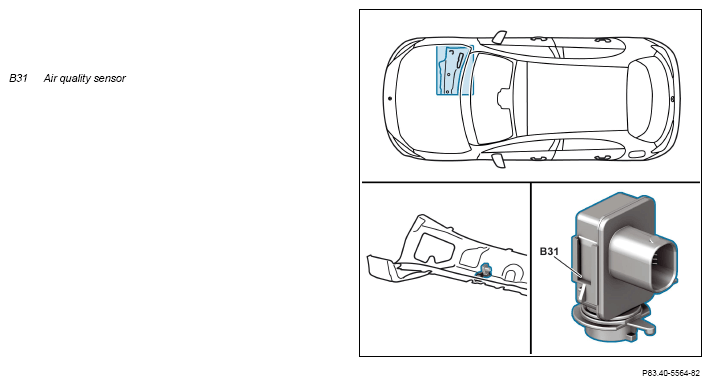

Location
The air quality sensor is fastened to the air/water duct with a holder.
- Nitrogen oxides (NOx )
The climate control unit reads in the values recorded by the air quality sensor directly. It regulates the pollutant-controlled air-recirculation mode depending on this.
Function requirements
- Circuit 15 ON
- Climate control switched on
