Air Conditioner Housing, Basic Function - GF83.40-P-2015A

MODEL ALL (CAR)

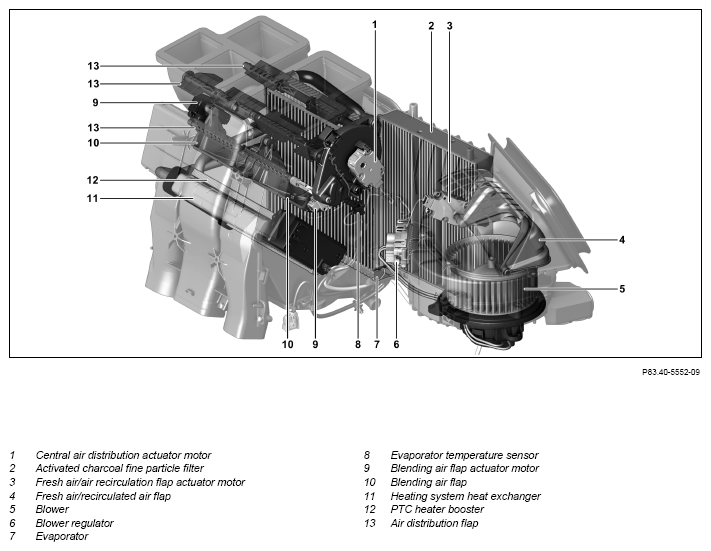

G12082178

Shown on 2-zone automatic climate control

General

The components of the climate control system, which are responsible for air delivery, filtering and temperature control, are located in the air conditioner housing.

Location

The air conditioner housing is located between the instrument panel and the firewall.

Function requirement
