A/C Operating Unit, Basic Function - GF83.40-P-2016A

MODEL ALL (CAR)

General

The basic climate control functions can be selected using the controls on the air conditioning control panel. Further functions can be operated using the multimedia system.

Location

The air conditioning control panel is located in the center of the lower section of the instrument panel.

Function requirement

• Circuit 30t ON

Structure

Depending on the model and equipment involved, the location and number of the controls on the air conditioning control panel differ.

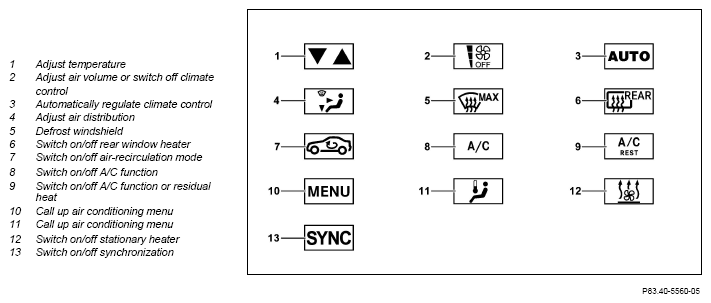

Possible control elements
