Wiring Diagram For Common Rail Diesel Injection (CDI) Control Unit - PE07.16-P-2101-97NAG

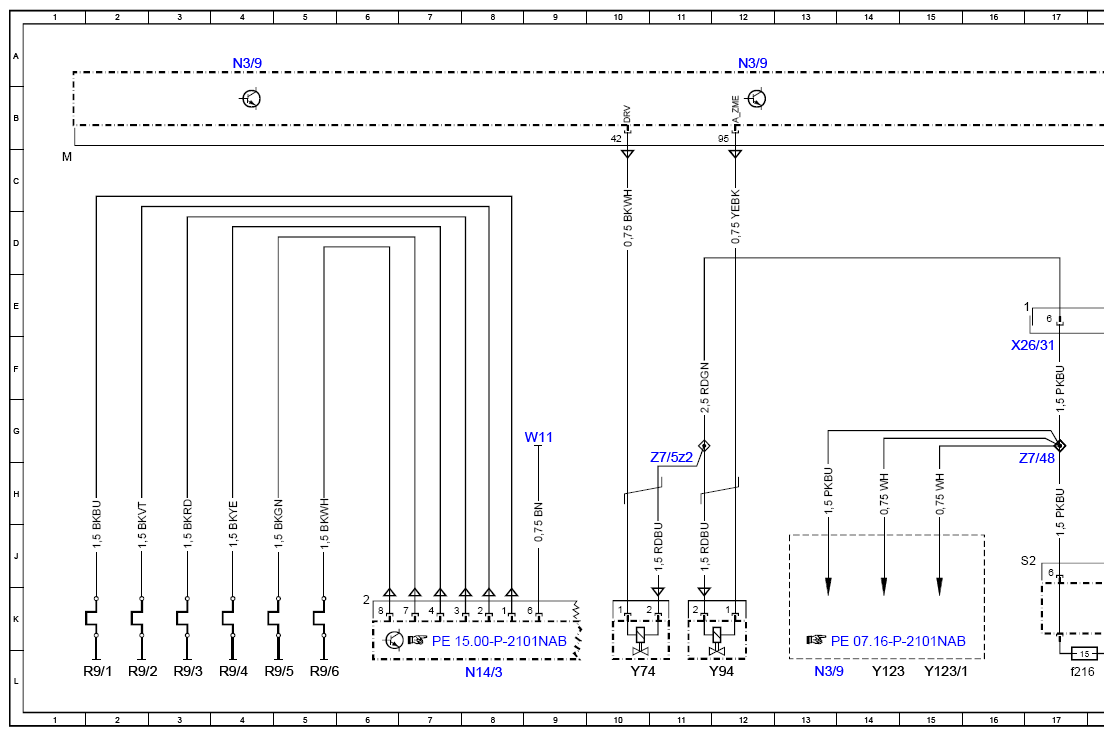

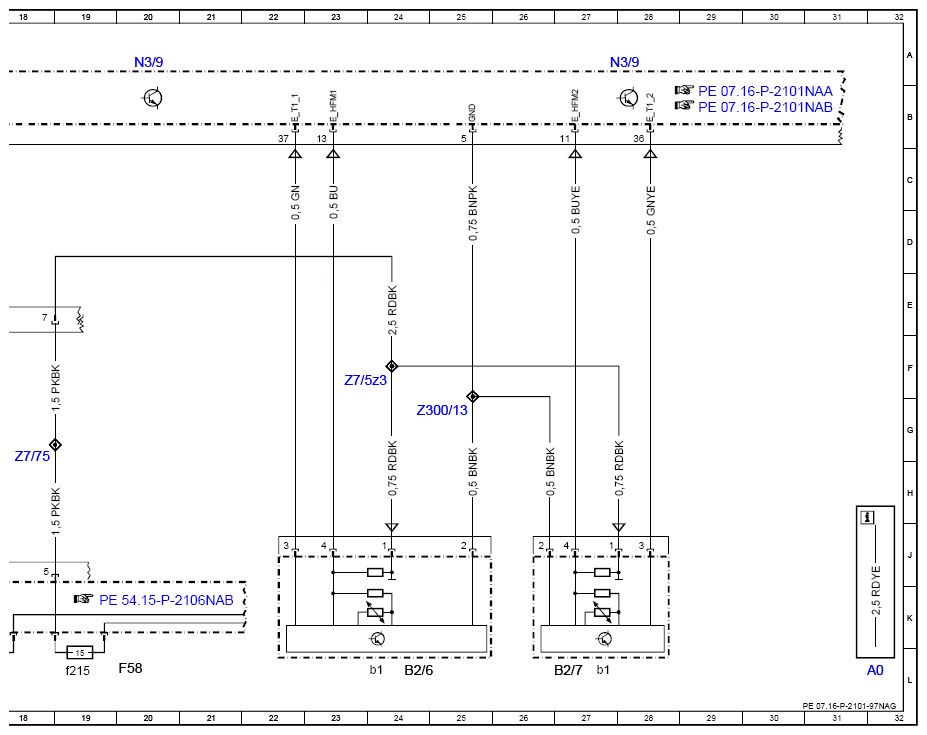

ENGINE 642.8 in MODEL 166 up to model year 2016 Control unit N3/9, engine connector, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B2/6 | Left hot film MAF sensor | 24L |
| B2/6b1 | Left intake air temperature sensor | 24L |
| B2/7 | Right hot film MAF sensor | 27L |
| B2/7b1 | Right intake air temperature sensor | 27L |
| F58 | Engine compartment fuse and relay module | 20L |
| F58f215 | Fuse 215 | 19L |
| F58f216 | Fuse 216 | 17L |
| N14/3 | Glow output stage | 8L |
| N3/9 | CDI control unit | 4A |
| N3/9 | CDI control unit | 12A |
| N3/9 | CDI control unit | 20A |
| N3/9 | CDI control unit | 28A |
| N3/9 | CDI control unit | 13L |
| R9/1 | Cylinder 1 glow plug | 2L |
| R9/2 | Cylinder 2 glow plug | 2L |
| R9/3 | Cylinder 3 glow plug | 3L |
| R9/4 | Cylinder 4 glow plug | 4L |
| R9/5 | Cylinder 5 glow plug | 4L |
| R9/6 | Cylinder 6 glow plug | 5L |
| W11 | Combustion engine ground point | 9G |
| X26/31 | Engine/engine compartment electrical connector | 17F |
| Y123 | Left switchable engine mount | 14L |
| Y123/1 | Right switchable engine mount | 15L |
| Y74 | Pressure regulator valve | 10L |
| Y94 | Quantity control valve | 12L |
| Z300/13 | Connector sleeve/sensors | 25G |
| Z7/48 | Circuit 87D2 connector sleeve | 17H |
| Z7/5z2 | Circuit 87 connector sleeve | 11G |
| Z7/5z3 | Circuit 87 connector sleeve | 23F |
| Z7/75 | Circuit 87 D3 connector sleeve | 18H |
