Remove/Install Vacuum Reservoir - AR07.09-P-0001CD
ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221
Shown on model 212.098
| Remove/install | |||
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| 1 | Remove cylinder head cover trim | ||
| 3 | Unhook coolant hose from holder | ||

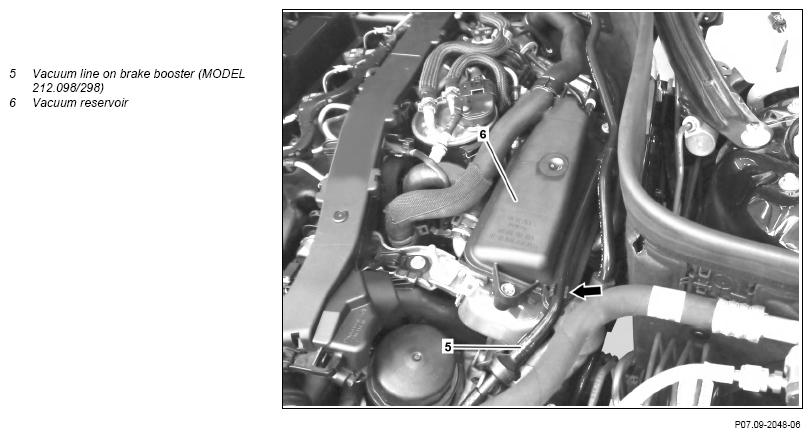

| 4 | Unhook vacuum line in brake booster (5) on vacuum reservoir (6) (arrow) | Engine 651 in model 212.098/298 | |

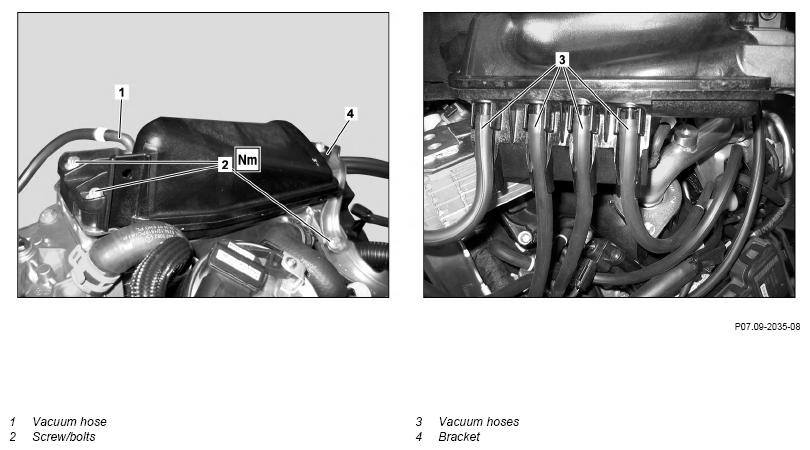

| 5 | Detach vacuum hose (1) | ||
| 6 | Mark vacuum hoses (3) | ||
| 7 | Mark vacuum hoses (3) and unclip at vacuum reservoir (6) and detach | ||
| 8 | Remove screw/bolts (2) and remove vacuum reservoir (6) | *BA14.20-P-1006-01K | |
| *BA14.20-P-1018-01K | |||
| 9 | Install in the reverse order |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA14.20-P-1006-01K | Bolt, support brace for vacuum reservoir and exhaust heat exchanger to Y-support brace | Nm | 9 |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA14.20-P-1018-01K | Bolt, vacuum reservoir to vacuum reservoir bracket or vacuum reservoir support brace and exhaust heat exchanger | Nm | 8 |
