Remove/Install Front Engine Mount And/Or Engine Support - AR22.10-P-1260GQ

ENGINE 276.9 in MODEL 166, 251

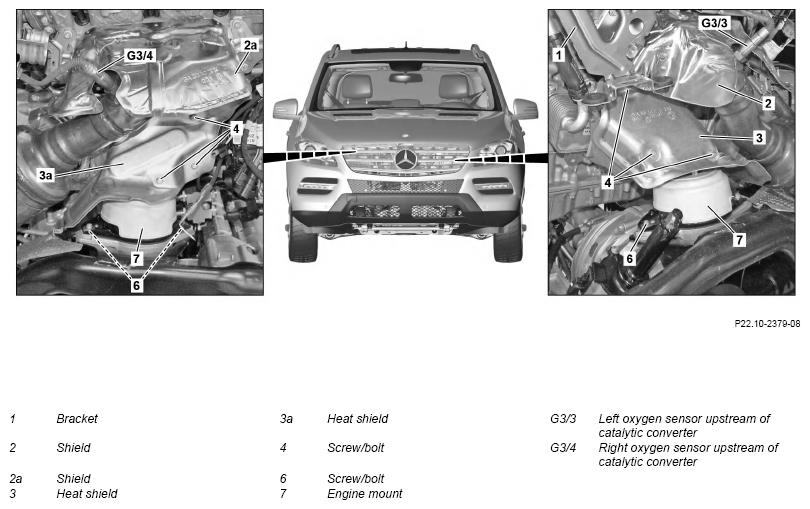

Illustrated on model 166.0

G12081533
REMOVINGINSTALLING Remove/install
  Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
1 Detach ground line from battery Engine 276.9 in model 251 AR54.10-P-0003RT
NOTES Notes on battery   AH54.10-P-0001-01A
Engine 276.9 in model 166
IMPORTANT For removing right-hand engine mount (7)		 AR54.10-P-0003GZ
2 Remove front engine cover
3.1 Remove air filter housing with engine air intake duct upstream of air filter For removing right-hand engine mount (7)
TORQUE SPECIFICATION Screw/bolt, air filter to cylinder head cover *BA09.10-P-1001-01M
TORQUE SPECIFICATION Screw/bolt, air filter to air intake pipe support brace *BA09.10-P-1002-01M
3.2 Remove ME-SFI [ME] control unit For removing left-hand engine mount (7) AR07.08-P-7008GQ
4 Remove section of the left, center and right partition wall
5.1 Unfasten shield (2a) For removing right-hand engine mount (7) AR14.10-P-4095GQ
5.2 Unfasten bracket (1) for ME-SFI [ME] control unit with shield (2) For removing left-hand engine mount (7) AR14.10-P-4095GQ
6.1 Remove right oxygen sensor upstream of catalytic converter (G3/4) For removing right-hand engine mount (7) AR07.52-P-5303GQ
6.2 Remove left oxygen sensor upstream of catalytic converter (G33) For removing left-hand engine mount (7) AR07.52-P-5303GQ
7.1 Remove shield (2a) For removing right-hand engine mount (7) AR14.10-P-4095GQ
7.2 Remove bracket (1) for ME-SFI [ME] control unit with shield (2) For removing left-hand engine mount (7) AR14.10-P-4095GQ
8.1 Remove heat shield (3a) over engine mount (7) at engine support For removing right-hand engine mount (7)
TORQUE SPECIFICATION Bolt, heat shield to engine support		 *BA22.10-P-1003-02A
8.2 Detach heat shield (3) over engine mount (7) at engine support and set aside or remove For removing left-hand engine mount (7)
IMPORTANT Model 166: the heat shield (3) and engine mount (7) can only be removed/installed together.
IMPORTANT Model 251: the heat shield (3) can removed individually.
TORQUE SPECIFICATION Bolt, heat shield to engine support		 *BA22.10-P-1003-02A
9 Mount engine hoist and raise engine slightly Engine 276.9 in model 251 AR33.10-P-0100-01RT
Engine 276.9 in model 166
IMPORTANT Only raise engine sufficiently that the engine mount (7) is not under tension.		 AR33.10-P-0105EW
TORQUE SPECIFICATION Engine 276.9 in model 251 Bolt, partition wall reinforcement between wheel well liners to fender *BA62.30-P-1008-01E
SPECIAL TOOL Engine lifting device Fig 1
10 Remove corresponding underfloor paneling Engine 276.9 in model 251 AR61.30-P-1001RT
Engine 276.9 in model 166 AR61.30-P-1001GQ
11 Unscrew screw/bolts (6) for engine mounts (7) on front axle carrier TORQUE SPECIFICATION Engine 276.9 in model 251 Bolt, front engine mount to front axle carrier *BA22.10-P-1001-03F
TORQUE SPECIFICATION Engine 276.9 in model 166 Bolt, front engine mount to front axle carrier *BA22.10-P-1001-03G
12 Remove screw/bolts for engine support on engine mounts (7) TORQUE SPECIFICATION Engine 276.9 in model 251 Bolt, front engine mount to engine support *BA22.10-P-1002-03F
TORQUE SPECIFICATION Engine 276.9 in model 166 Bolt, front engine mount to engine support *BA22.10-P-1002-03G
SPECIAL TOOL Engine mount wrench set Fig 2
13 Lift engine IMPORTANT Pay attention when lifting out engine that no cables and lines are damaged and that engine does not lean against the bulkhead.
14.1 Remove screw/bolt from A/C compressor at engine support For removing left-hand engine mount (7)
TORQUE SPECIFICATION Screw/bolt, refrigerant compressor to timing case/crankcase/engine support		 *BA83.55-P-1001-01M
14.2 Detach alternator and place to one side with the lines connected Only model 166 with 4MATIC, model 251 For removing right-hand engine mount (7)
TORQUE SPECIFICATION Bolt, alternator to timing case		 *BA15.40-P-1001-01F
15 Remove screw/bolt for ground line on engine support Vehicles without 4MATIC
For removing right-hand engine mount (7)
16 Take out engine mount (7) IMPORTANT Always replace engine mount (7) in pairs.
INSTALLATION IMPORTANT : Ensure that the correct installation position is obtained when assembling the engine mount (7).
IMPORTANT Pay attention to environmental protection regulations for disposal of engine mounts (7). Dispose of engine mounts (7) into mixed scrap.
17 Detach and remove engine support on cylinder crankcase TORQUE SPECIFICATION Bolt, engine support to crankcase *BA22.10-P-1001-02A
18 Install in the reverse order
AIR FILTER

Number Designation Engine 276.9
BA09.10-P-1001-01M Screw/bolt, air filter to cylinder head cover Nm 9
AIR FILTER

Number Designation Engine 276.9
BA09.10-P-1002-01M Screw/bolt, air filter to air intake pipe support brace Nm 9
ALTERNATOR

Number Designation Engine 276
BA15.40-P-1001-01F Bolt, alternator to timing case Stage 1 Nm 20
Stage 2 Nm -
ENGINE SUPPORT (ENGINE SIDE)

Number Designation Engine 276
BA22.10-P-1001-02A Bolt, engine support to crankcase Stage 1 Nm 20
Stage 2 ∠° 90
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 251
BA22.10-P-1001-03F Bolt, front engine mount to front axle carrier Nm 53
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 166 with engine 276, 642, 651
BA22.10-P-1001-03G Bolt, front engine mount to front axle carrier Nm 53
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 251
BA22.10-P-1002-03F Bolt, front engine mount to engine support Nm 53
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 166 with engine 276, 642, 651
BA22.10-P-1002-03G Bolt, front engine mount to engine support Stage 1 Nm 53
Stage 2 ∠° -
ENGINE SUPPORT (ENGINE SIDE)

Number Designation Engine 276
BA22.10-P-1003-02A Bolt, heat shield to engine support Nm 13
CROSSMEMBER AND FRONT REINFORCEMENT

Number Designation Model 251
BA62.30-P-1008-01E Bolt, partition wall reinforcement between wheel well liners to fender Nm 10
REFRIGERANT COMPRESSOR

Number Designation Engine 276
BA83.55-P-1001-01M Screw/bolt, refrigerant compressor to timing case/crankcase/engine support Nm 20
Fig 1: Identifying Engine Lifting Device (240 589 00 61 00)
G07279162Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G07333153Courtesy of MERCEDES-BENZ USA
