Remove/Install Flywheel/Drive Plate - AR03.30-P-8001CD

ENGINE 651 in MODEL 166, 172, 204, 207, 212 (except 212.098/298), 218, 221

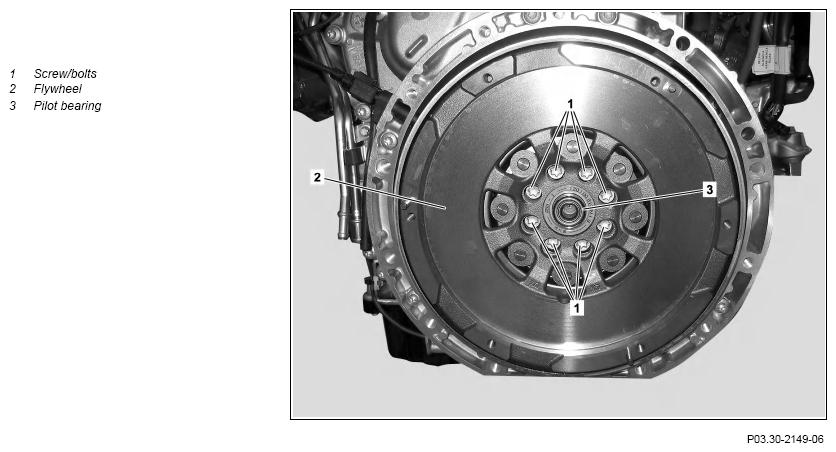

Shown on TRANSMISSION 711

G11972702
REMOVINGINSTALLING Remove/install
1.1 Remove clutch Engine 651 in model 172, 204, 207, 212 (except 212.098/298) with transmission 711.6
Engine 651 in model 204, 207, 212 (except 212.098/298) with transmission 716.6
Engine 651 in model 172, 204 with transmission 711.6		 AR25.10-P-0050CW
    Engine 651 in model 204 with transmission 716.6
Engine 651 in model 207 with transmission 711.6
Engine 651 in model 207 with transmission 716.6		 AR25.10-P-0050CWA
    Engine 651 in model 212 (except 212.098/298) with transmission 711.6
Engine 651 in model 212 (except 212.098/298) with transmission 716.6		 AR25.10-P-0050EW
1.2 Remove transmission with torque converter Engine 651 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 with transmission 722
Engine 651 in model 166, 172, 207, 212, 218 with transmission 725.0
    Engine 651 in model 172 with transmission 725.0 AR27.10-P-0500MRE
    Engine 651 in model 166 with transmission 725.0 AR27.10-P-0500GN
    Engine 651 in model 166 with transmission 722.9 AR27.10-P-0500GQ
    Engine 651 in model 172 with transmission 722.9 AR27.10-P-0500W
    Engine 651 in model 204.0/2/3 with transmission 722.6 up to model year 2012
Engine 651 in model 207 with transmission 722.6		 AR27.10-P-0500CW
    Engine 651 in model 204 with transmission 722.9 (except 722.96/997)
Engine 651 in model 207 with transmission 722.9 (except 722.96)		 AR27.10-P-0500CV
    Engine 651 in model 204, 212, 218 with transmission 722.96 AR27.10-P-0500CWX
    Engine 651 in model 212 with transmission 722.6 AR27.10-P-0500EW
    Engine 651 in model 212 with transmission 722.9 (except 722.96)
Engine 651 in model 218 with transmission 722.9 (except 722.96)		 AR27.10-P-0500EV
    Engine 651 in model 221.0/1 with transmission 722.9 (except 722.96) AR27.10-P-0500SX
2 Remove crankshaft position sensor   AR15.12-P-2133CD
3.1 Remove screw/bolts (1) on flywheel Engine 651 in model 172, 204, 207, 212 (except 212.098/298) with transmission 711.6
Engine 651 in model 204, 207, 212 (except 212.098/298) with transmission 716.6
IMPORTANT Counterhold the crankshaft.
TORQUE SPECIFICATION Bolt, flywheel or two-mass flywheel to crankshaft		 *BA03.30-P-1002-01R
    SPECIAL TOOL Engine 651 in model 172, 204, 207, 212 (except 212.098/298) with transmission 711.6 with code B03 (ECO start/stop function)
Engine 651 in model 204, 207, 212 (except 212.098/298) with transmission 716.6 with code B03 (ECO start/stop function) Counterholder		 Figure
3.2 Remove screw/bolts (1) on drive plate Engine 651 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 with transmission 722
Engine 651 in model 166, 172, 207, 212 (except 212.098/298), 218 with transmission 725.0
NOTES
Engine 651 as of 7/15/11 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 with transmission 722
Use screw/bolts (1) with a 21.2 mm thick bolt head.
Otherwise strain cracks can arise on the Flex-plate.
NOTES
Engine 651 up to 7/14/11 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 with transmission 722
For both screw/bolts (1) next to the cylinder pin.
15.5 mm thick bolt heads, otherwise use
21.2 mm thick bolt heads.
Otherwise strain cracks can arise on the Flex-plate.
INSTALLATION IMPORTANT Replace screw/bolts (1) and perforated disc.
IMPORTANT Counterhold crankshaft.
TORQUE SPECIFICATION Bolt, flywheel or two-mass flywheel to crankshaft		 *BA03.30-P-1002-01R
    SPECIAL TOOL Engine 651 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 with transmission 722
with code B03 (ECO start/stop function)
Engine 651 in model 166, 172, 207, 212 (except 212.098/298), 218 with transmission 725.0
with code B03 (ECO start/stop function) Counterholder		 Figure
4.1 Take off flywheel (2) Engine 651 in model 172, 204, 207, 212 (except 212.098/298) with transmission 711.6
Engine 651 in model 204, 207, 212 (except 212.098/298) with transmission 716.6
INSTALLATION IMPORTANT The cylinder pin dictates the installation position of the flywheel (2).
4.2 Remove drive plate Engine 651 in model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 with transmission 722
Engine 651 in model 166, 172, 207, 212 (except 212.098/298), 218 with transmission 725.0
IMPORTANT Installation: The cylinder pin dictates the installation position of the drive plate.
INSPECT Check
5 Check pilot bearing (3) in the flywheel (2) Engine 651 in model 172, 204, 207, 212 (except 212.098/298) with transmission 711.6
Engine 651 in model 204, 207, 212 (except 212.098/298) with transmission 716.6
In a case of noisy or rough running and wear
↓
install new flywheel (2).
6 Check rear crankshaft radial shaft sealing ring If damage is present:
↓
Replace crankshaft radial shaft sealing ring.		 AR03.20-P-3063CD
7 Install in the reverse order
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 651
BA03.30-P-1002-01R Bolt, flywheel or two-mass - flywheel to crankshaft Stage 1 Nm 45
Stage 2 ∠° 90
Fig 1: Identifying Counterholder (651 589 00 40 00)
G12078777Courtesy of MERCEDES-BENZ USA
