Remove/Install Poly-V Belt - AR13.22-P-1202MLJ
ENGINE 157, 278 in MODEL 166
ENGINE 157, 278 in MODEL 292

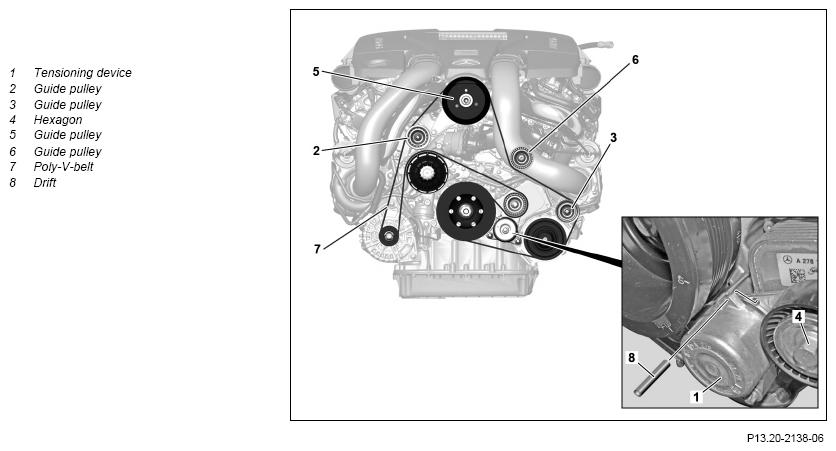

Shown on engine 157
| Remove/install | |||
| 1 | Remove upper engine covers | ||
| 2 | Remove both intake air ducts | ||
| 3 | Detach oil lines at oil filter housing | Engine 157 in model 166 Engine 157 in model 292 |
|
| 4 | Swivel clamping device (1) at hexagon (4) counterclockwise | ||
| 5 | Remove poly-V-belt (7) | Routing diagram for poly-V belt Do not use belt wax or similar products. This leads to slipping of the poly-V-belt. |
AR13.22-P-3902-02MM |
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Check poly-V-belt (7) and belt pulley profile, clamping device (1) and guide pulleys (2, 3, 5, 6) for damage, wear and soiling | ||
| If damage and wear present: ↓ Replace affected components on the poly-V-belt drive. |
AP13.22-P-1352CW |
