Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997GR
MODEL 166 up to model year 2016 with CODE 218 (Rear view camera)
MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC)
MODEL 166 up to model year 2016 with CODE 235 (Active Parking Assist with PARKTRONIC)
MODEL 166 up to model year 2016 with CODE 501 (360° camera)

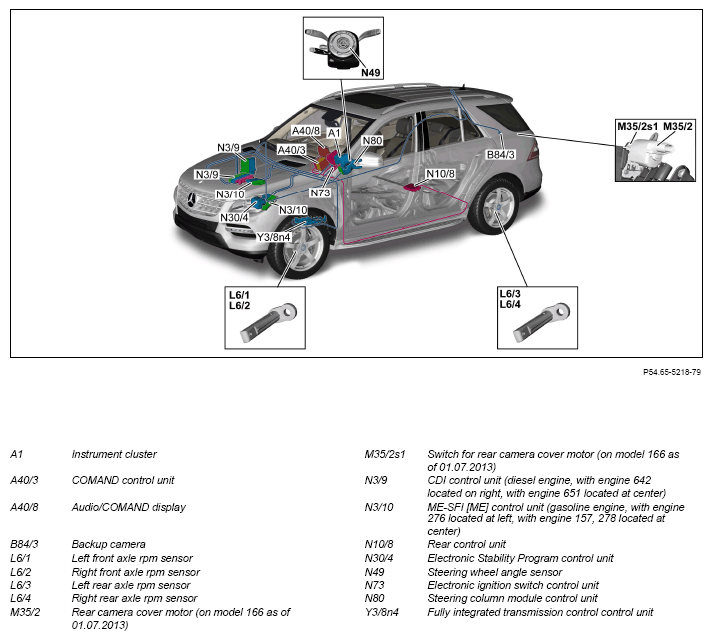

Reversing camera (RFK) (with CODE 218 (Reversing camera) and except CODE 498 (Japan version)), shown on model 166.0

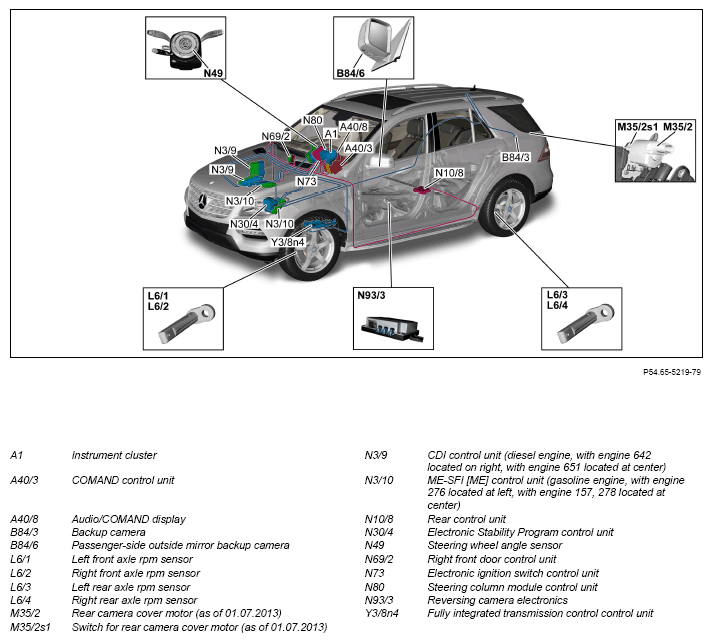

Reversing camera (RFK) (with CODE 218 (Reversing camera) and CODE 498 (Japan version)), shown on model 166.0

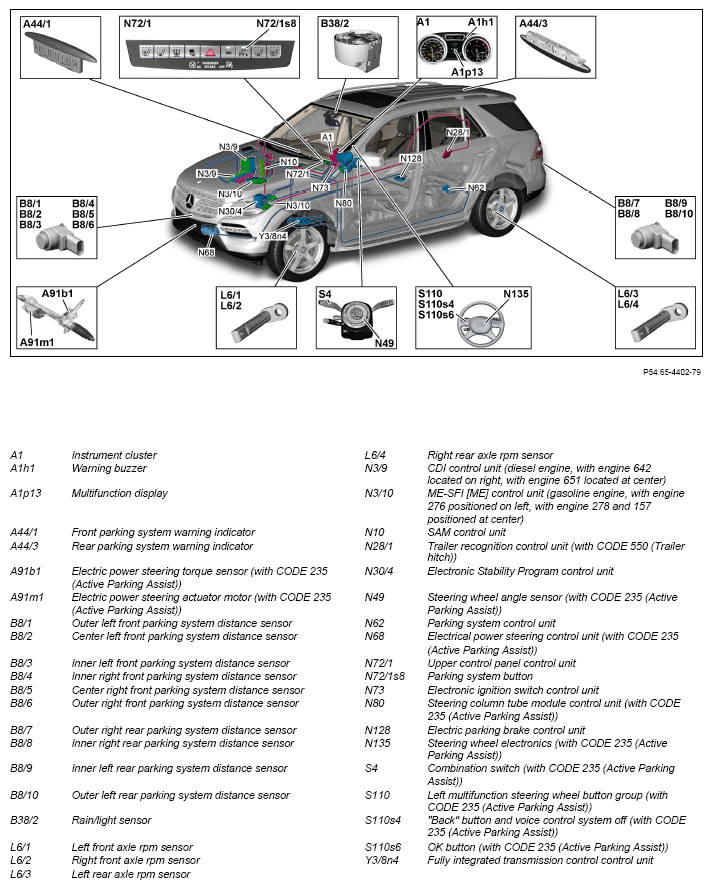

Parking system (with CODE 220 (PARKTRONIC) or CODE 235 (Active Parking Assist)), shown on model 166.0

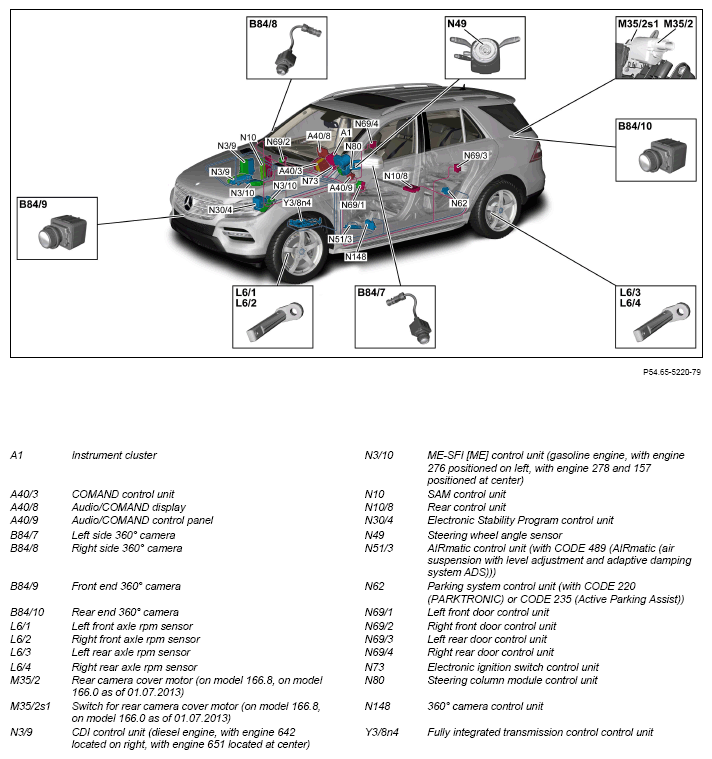

360° camera (with CODE 501 (360 degree camera)), shown on model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for COMAND controller unit | Model 166 up to model year 2016 with code 220 (PARKTRONIC) with code 512 (COMAND APS with DVD changer) Model 166 up to model year 2016 with code 220 (PARKTRONIC) with code 527 (COMAND APS with single DVD drive (with navigation)) Model 166 up to model year 2016 with code 220 (PARKTRONIC) with code 528 (COMAND with DVD changer) Model 166 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) with code 512 (COMAND APS with DVD changer) Model 166 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) with code 527 (COMAND APS with single DVD drive (with navigation)) Model 166 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) with code 528 (COMAND with DVD changer) Model 166 up to model year 2016 with code 501 (360° camera) with code 512 (COMAND APS with DVD changer) Model 166 up to model year 2016 with code 501 (360° camera) with code 527 (COMAND APS with single DVD drive (with navigation)) Model 166 up to model year 2016 with code 501 (360° camera) with code 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136GR | |
| Component description for Audio/COMAND display | Model 166 up to model year 2016 with code 218 (Rear view camera) Model 166 up to model year 2016 with code 501 (360° camera) A40/8 |
GF54.30-P-6150GR | |
| Component description for Audio/COMAND control panel | Model 166 up to model year 2016 with code 218 (Rear view camera) Model 166 up to model year 2016 with code 501 (360° camera) A40/9 | GF54.21-P-4501GR | |
| Reversing camera component description | Model 166 up to model year 2016 with code 218 (Rear view camera) B84/3 | GF54.65-P-5040GR | |
| Component description for CDI control unit | Model 166 with engine 642.8 up to model year 2016 with code 218 (Rear view camera) Model 166 with engine 642.8 up to model year 2016 with code 220 (PARKTRONIC) Model 166 with engine 642.8 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 642.8 up to model year 2016 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OGR | |
| Model 166 with engine 651.9 up to 2/28/13 up to model year 2014 with code 218 (Rear view camera) Model 166 with engine 651.9 up to 2/28/13 up to model year 2014 with code 220 (PARKTRONIC) Model 166 with engine 651.9 up to 2/28/13 up to model year 2014 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 651.9 up to 2/28/13 up to model year 2014 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OLG | ||
| Model 166 with engine 651.9 as of 3/1/13 up to model year 2016 with code 218 (Rear view camera) Model 166 with engine 651.9 as of 3/1/13 up to model year 2016 with code 220 (PARKTRONIC) Model 166 with engine 651.9 as of 3/1/13 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 651.9 as of 3/1/13 up to model year 2016 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | Model 166 with engine 276.8 up to model year 2016 with code 218 (Rear view camera) Model 166 with engine 276.8 up to model year 2016 with code 220 (PARKTRONIC) Model 166 with engine 276.8 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) |
GF07.61-P-6000MMU | |
| Model 166 with engine 276.8 up to model year 2016 with code 501 (360° camera) N3/10 Model 166 with engine 276.9 up to model year 2016 with code 218 (Rear view camera) Model 166 with engine 276.9 up to model year 2016 with code 220 (PARKTRONIC) Model 166 with engine 276.9 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 276.9 up to model year 2016 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MMG | ||
| Model 166 with engine 157.9, 278.9 up to model year 2016 with code 218 (Rear view camera) Model 166 with engine 157.9, 278.9 up to model year 2016 with code 220 (PARKTRONIC) Model 166 with engine 157.9, 278.9 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 157.9, 278.9 up to model year 2016 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| Component description for trailer recognition control unit | Model 166 up to model year 2016 with code 218 (Rear view camera) with code 550 (Trailer coupling) Model 166 up to model year 2016 with code 220 (PARKTRONIC) with code 550 (Trailer coupling) Model 166 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) with code 550 (Trailer coupling) Model 166 up to model year 2016 with code 501 (360° camera) with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| AIRmatic control unit, component description | Model 166 up to model year 2016 with code 218 (Rear view camera) with code 489 (AIRMATIC) Model 166 up to model year 2016 with code 220 (PARKTRONIC) with code 489 (AIRMATIC) Model 166 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) with code 489 (AIRMATIC) Model 166 up to model year 2016 with code 489 (AIRMATIC) with code 501 (360° camera) N51/3 |
GF32.22-P-5109GR | |
| Parking system control unit component description | Model 166 up to model year 2016 with code 220 (PARKTRONIC) Model 166 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5002GR | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GR | |
| Component description for 360 degree viewing system control unit | Model 166 up to model year 2016 with code 501 (360° camera) N148 | GF54.65-P-5003GR | |
| Component description for fully integrated transmission control unit | Model 166 with transmission 722.9 up to model year 2016 with code 218 (Rear view camera) Model 166 with transmission 722.9 up to model year 2016 with code 220 (PARKTRONIC) Model 166 with transmission 722.9 up to model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with transmission 722.9 up to model year 2016 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165AHA | |
| Table of contents for function description of parking assistance systems | GF54.00-P-0997GR |
