Separate Outer Rear Center Section - AR64.20-P-1000-01GQS
MODEL 166.0 with CODE Z04 (Light armoring)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint | A 000 986 34 42 |

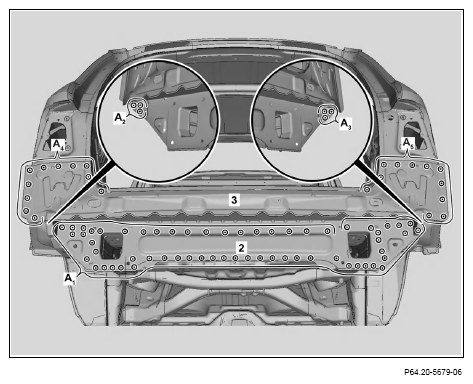

- Expose spot welds on center rear center section (2) and inner rear center section (3) and cut out (areas A1
, A2
, A3
, A4
, A5
).

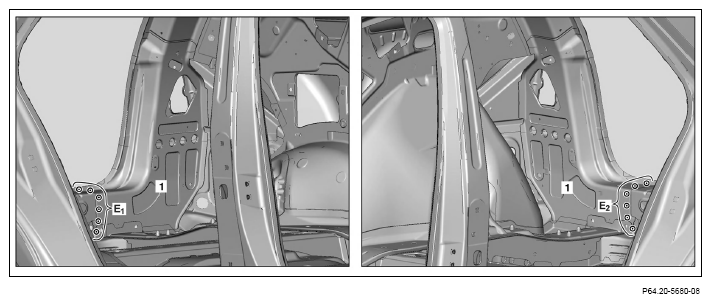

- Expose spot welds on inner rear center section (1) and cut out (areas E1 , E2 ).

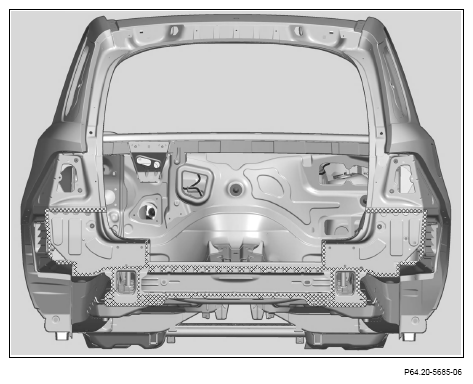

- Grind mating surfaces on body down to bare metal in cross-hatched areas.
Grind flange down to bare metal on both sides.
- Remove shavings and drill chips.
- Coat insides of flange with zinc dust paint.
