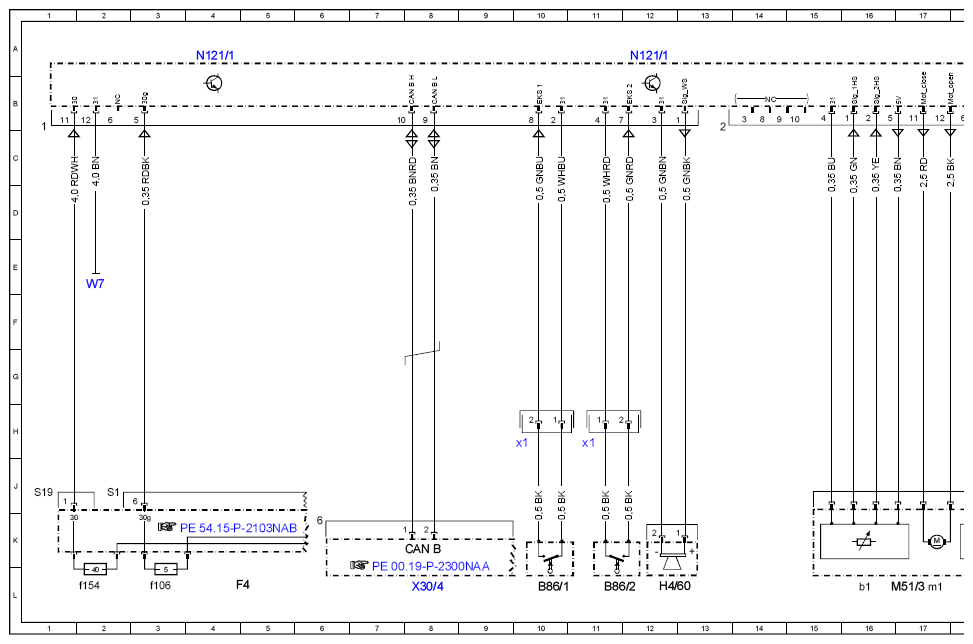

Wiring Diagram For Remote Trunk Closing Control Unit - PE72.30-P-2101-97NAA
MODEL 166 up to model year 2016 with CODE 890 (EASY-PACK liftgate) Control unit N121/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| B86/1 | Left EASY-PACK liftgate anti-pinch protection contact bar | 10L |
| B86/1x1 | Left EASY-PACK liftgate anti-pinch protection contact bar electrical connector | 10H |
| B86/2 | Right EASY-PACK liftgate anti-pinch protection contact bar | 11L |
| B86/2x1 | Right EASY-PACK liftgate anti-pinch protection contact bar electrical connector | 11H |
| CAN B | Interior CAN | 8K |
| F4 | Rear fuse box | 4L |
| F4f106 | Fuse 106 | 3L |
| F4f154 | Fuse 154 | 2L |
| H4/60 | Tailgate control warning buzzer | 12L |
| M51/3 | Tailgate control drive unit | 17L |
| M51/3b1 | Tailgate control Hall sensor | 16L |
| M51/3b2 | Tailgate control position sensor | 18L |
| M51/3m1 | Tailgate control electric motor | 17L |
| N121/1 | Tailgate control unit | 4A |
| N121/1 | Tailgate control unit | 12A |
| W7 | Right rear center section ground point | 2E |
| X30/4 | Right potential distributor electrical connector (CAN) | 8L |
