Remove/Install Accelerator Pedal - AR30.12-P-1321GZ
MODEL 164, 166, 292

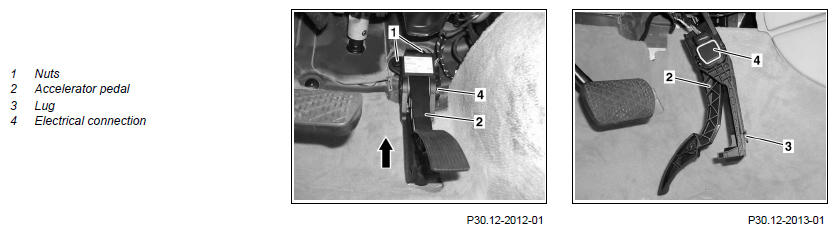

Shown on model 164
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove cover under the instrument panel on the driver-side | Model 166, 292 | AR68.10-P-1500GQ |
| Model 164 | AR68.10-P-1500GZ | ||
| 3 | Unscrew nuts (1) | ||
| 4 | Pull out the accelerator pedal (2) in the upper part slightly and then push upwards in order to loosen the lug (3) | ||
| 5 | Remove accelerator pedal (2) | ||
| 6 | Disconnect electrical connection (4) | ||
| 7 | Install in the reverse order |
