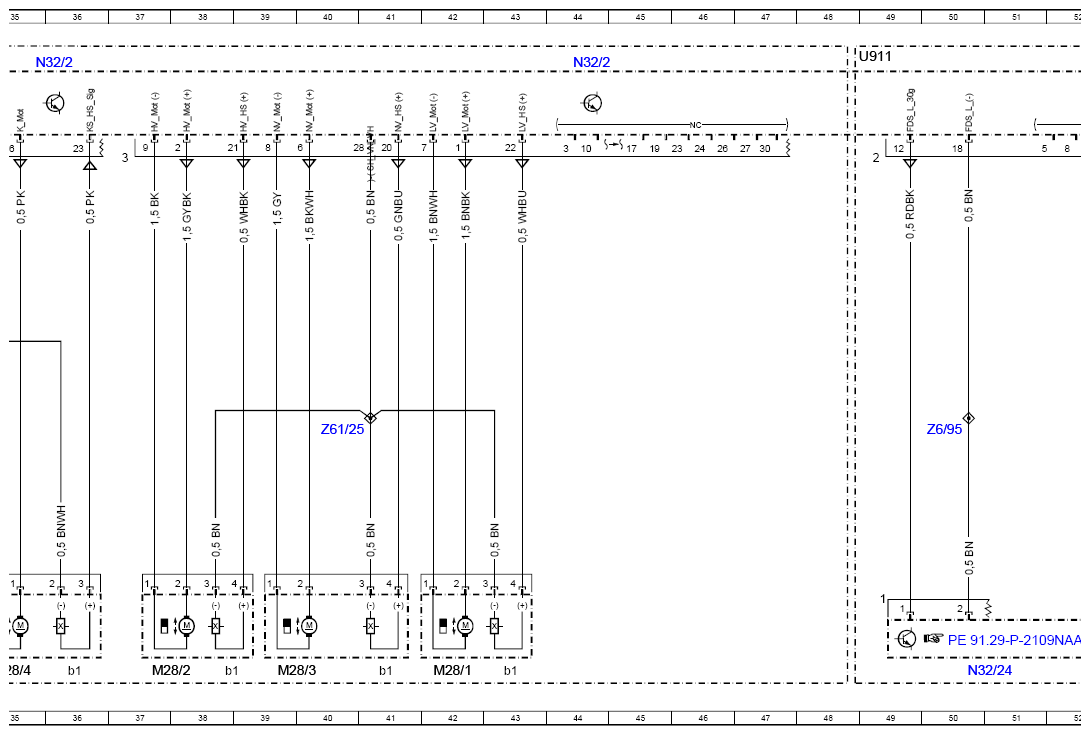

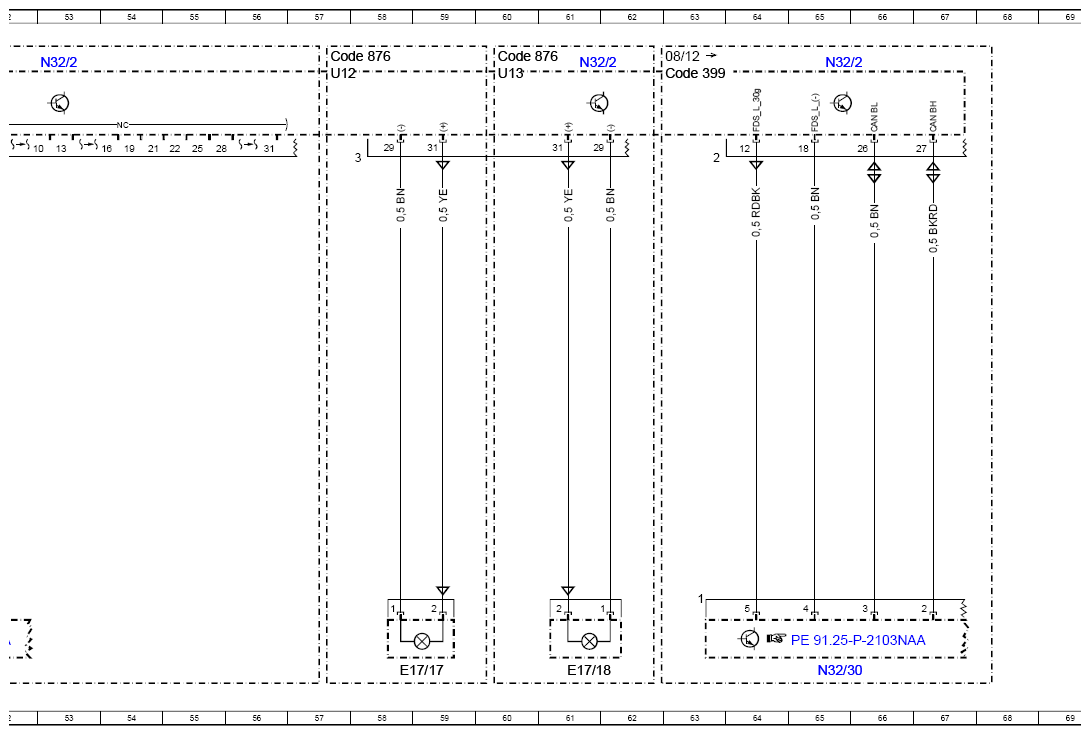

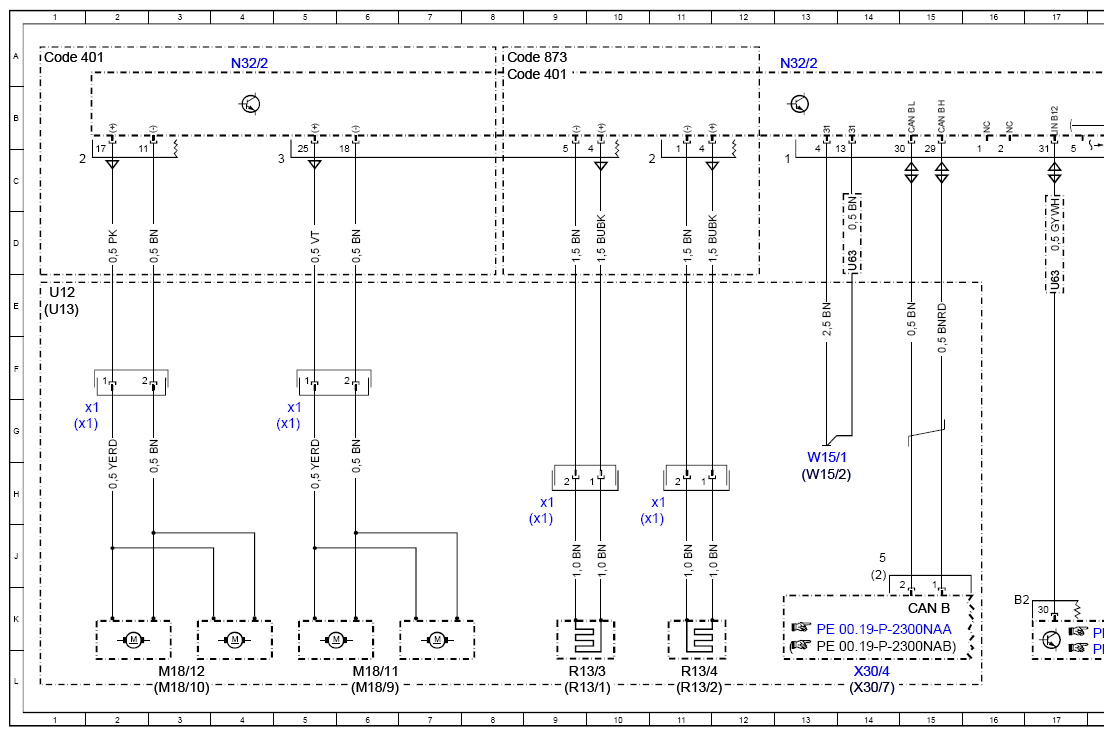

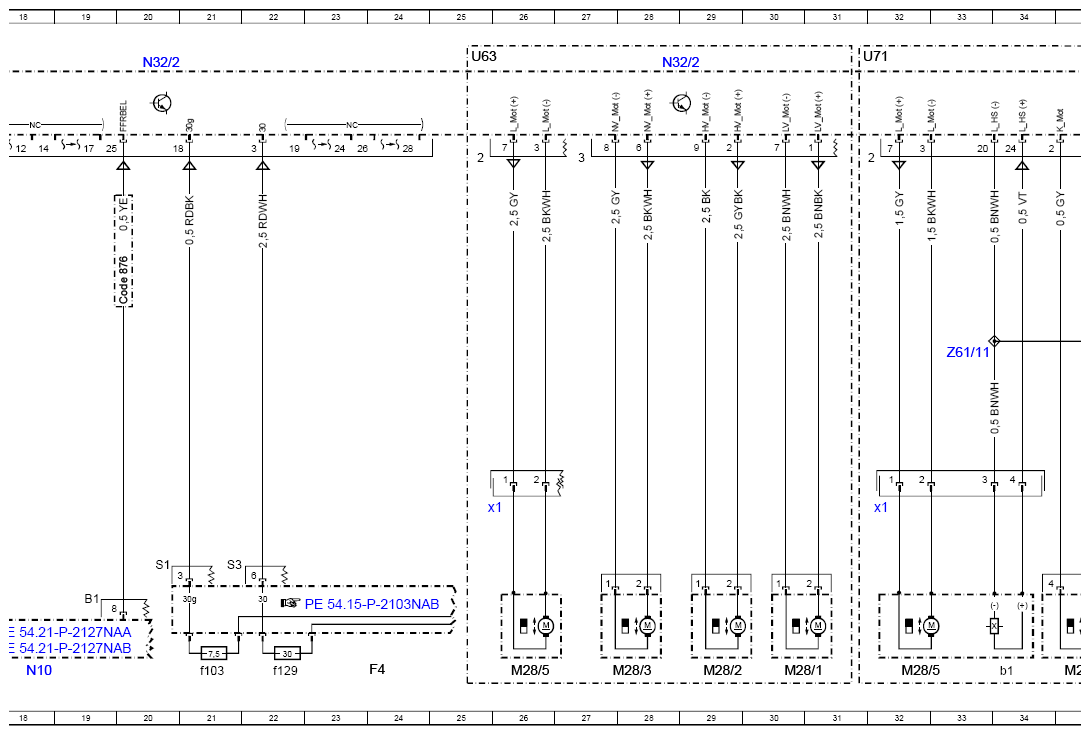

Wiring Diagram Of Front Passenger-Side Seat Control Module - PE91.29-P-2105-97NAA
MODEL 166 up to model year 2016 Control unit N32/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| CAN B | Interior CAN | 15K |
| Code 399 | Front multicontour seats with massage function | 63A |
| Code 401 | Front comfort seats, incl. seat heating and seat ventilation | 8A |
| Code 401 | Front comfort seats, incl. seat heating and seat ventilation | 1A |
| Code 873 | Heated seats for driver and front passenger seat | 8A |
| Code 876 | Interior lights package | 57A |
| Code 876 | Interior lights package | 60A |
| Code 876 | Interior lights package | 20E |
| E17/17 | Left rear footwell lamp | 58L |
| E17/18 | Right rear footwell lamp | 61L |
| F4 | Rear fuse box | 24L |
| F4f103 | Fuse 103 | 21L |
| F4f129 | Fuse 129 | 22L |
| M18/10 | Left front backrest seat ventilation motors | 3L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 1G |
| M18/11 | Right front seat cushion seat ventilation motors | 6L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 5G |
| M18/12 | Right front backrest seat ventilation motors | 3L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 2G |
| M18/9 | Left front seat cushion seat ventilation motors | 6L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 5G |
| M28/1 | Front passenger seat fore/aft adjustment motor | 30L |
| M28/1 | Front passenger seat fore/aft adjustment motor | 42L |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 43L |
| M28/2 | Front passenger seat height adjustment motor | 29L |
| M28/2 | Front passenger seat height adjustment motor | 37L |
| M28/2b1 | Height adjustment Hall sensor, front passenger seat | 38L |
| M28/3 | Front passenger seat inclination adjustment motor | 28L |
| M28/3 | Front passenger seat inclination adjustment motor | 39L |
| M28/3b1 | Inclination adjustment Hall sensor, front passenger seat | 41L |
| M28/4 | Front passenger seat head restraint adjustment motor | 35L |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 36L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 32L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 26L |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 34L |
| M28/5x1 | Seat backrest inclination adjustment motor electrical connector, front passenger seat | 32H |
| M28/5x1 | Seat backrest inclination adjustment motor electrical connector, front passenger seat | 26H |
| N10 | SAM control unit | 18L |
| N32/2 | Front passenger seat control unit | 65A |
| N32/2 | Front passenger seat control unit | 20A |
| N32/2 | Front passenger seat control unit | 28A |
| N32/2 | Front passenger seat control unit | 44A |
| N32/2 | Front passenger seat control unit | 53A |
| N32/2 | Front passenger seat control unit | 61A |
| N32/2 | Front passenger seat control unit | 4A |
| N32/2 | Front passenger seat control unit | 13A |
| N32/2 | Front passenger seat control unit | 35A |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 50L |
| N32/30 | Front passenger multicontour seat control unit | 65L |
| R13/1 | Left front seat sitting surface heated cushion | 9L |
| R13/2 | Left front backrest heated cushion | 11L |
| R13/2x1 | Left front backrest heater pad electrical connector | 9H |
| R13/3 | Right front seat sitting surface heated cushion | 9L |
| R13/3x1 | Right front seat sitting surface heater pad electrical connector | 9H |
| R13/3x1 | Right front seat sitting surface heater pad electrical connector | 11H |
| R13/4 | Right front backrest heated cushion | 11L |
| R13/4x1 | Right front backrest heater pad electrical connector | 11H |
| U12 | Valid for left-hand drive vehicles | 57A |
| U12 | Valid for left-hand drive vehicles | 1E |
| U13 | Valid for right-hand drive vehicles | 60A |
| U13 | Valid for right-hand drive vehicles | 1E |
| U63 | Valid for seat adjustment without memory function | 25A |
| U63 | Valid for seat adjustment without memory function | 17E |
| U63 | Valid for seat adjustment without memory function | 14D |
| U71 | Valid for fully electric seat adjustment with memory function | 31A |
| U911 | Valid for lumbar support | 48A |
| W15/1 | Right footwell ground point | 13H |
| W15/2 | Left footwell ground point | 13H |
| X30/4 | Right potential distributor electrical connector (CAN) | 14L |
| X30/7 | Left potential distributor electrical connector (CAN) | 14L |
| Z6/95 | Front passenger seat circuit 31 connector sleeve | 50G |
| Z61/11 | Front passenger seat backrest and head restraint adjustment motor connector sleeve | 33F |
| Z61/25 | Front passenger Hall sensor ground connector sleeve | 40G |
