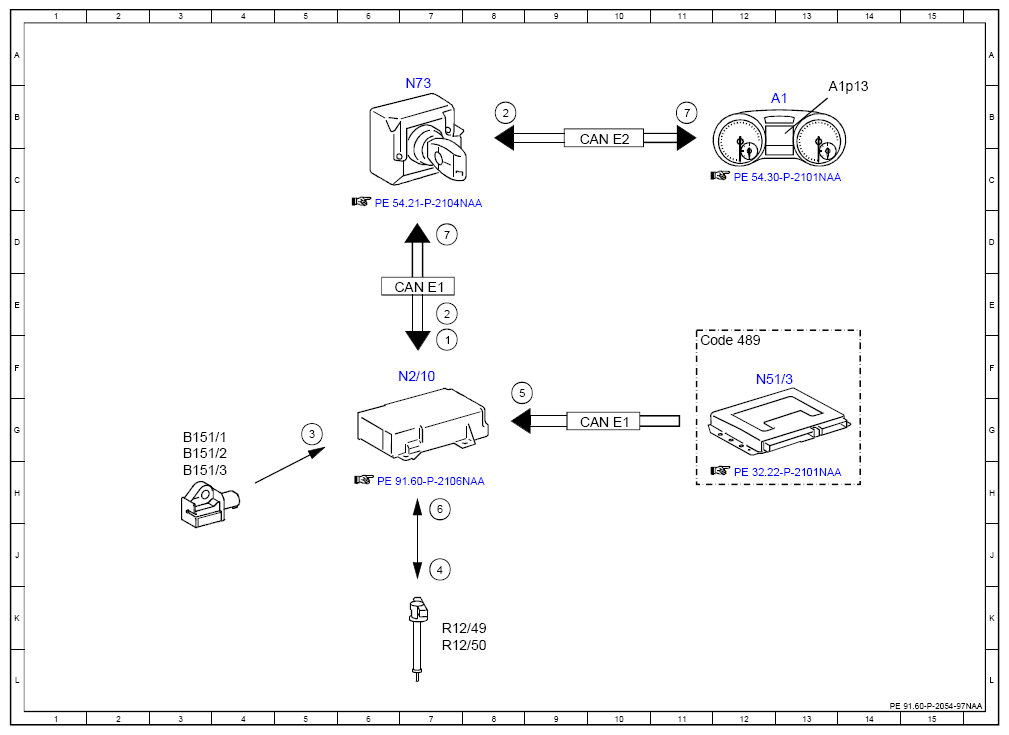

Function Schematic For Electric Pedestrian Protection - PE91.60-P-2054-97NAA
MODEL 166 up to model year 2016 with CODE U60 (Pedestrian protection)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7F |
| 2 | Vehicle speed, signal | 7E |
| 2 | Vehicle speed, signal | 8B |
| 3 | Pedestrian protection sensor, status | 5G |
| 4 | Squib, actuation | 7J |
| 5 | Vehicle level, status | 8F |
| 6 | Active engine hood squib, status | 7H |
| 7 | Instrument cluster message, request | 7D |
| 7 | Instrument cluster message, request | 11B |
| A1 | Instrument cluster | 12B |
| A1p13 | Multifunction display | 14B |
| B151/1 | Left front bumper pedestrian protection sensor | 3G |
| B151/2 | Center front bumper pedestrian protection sensor | 3G |
| B151/3 | Right front bumper pedestrian protection sensor | 3H |
| CAN E1 | Chassis CAN 1 | 7E |
| CAN E1 | Chassis CAN 1 | 10G |
| CAN E2 | Chassis CAN 2 | 10B |
| Code 489 | AIRMATIC (air suspension with level adjustment and adaptive damping system ADS) | 11F |
| N2/10 | Supplemental restraint system control unit | 6F |
| N51/3 | AIRMATIC control unit | 12F |
| N73 | Electronic ignition switch control unit | 7B |
| R12/49 | Left rear active engine hood squib | 7K |
| R12/50 | Right rear active engine hood squib | 7L |
