Wiring Diagram For Driver-Side Instrument Panel Button Group - PE54.25-P-2145-97FCA

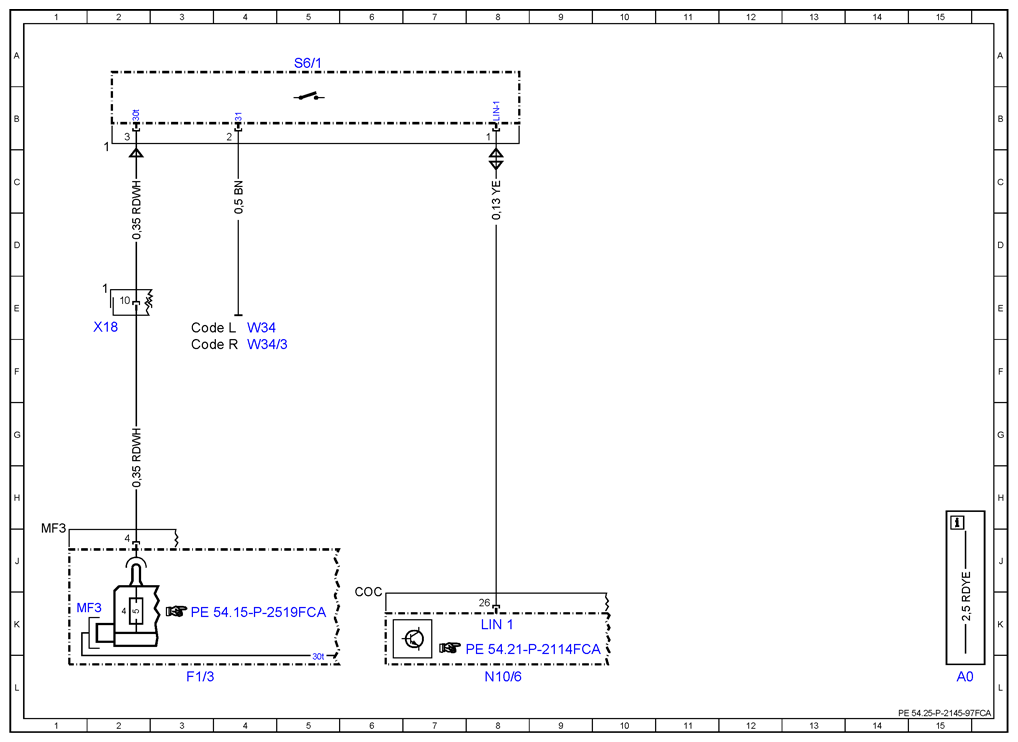

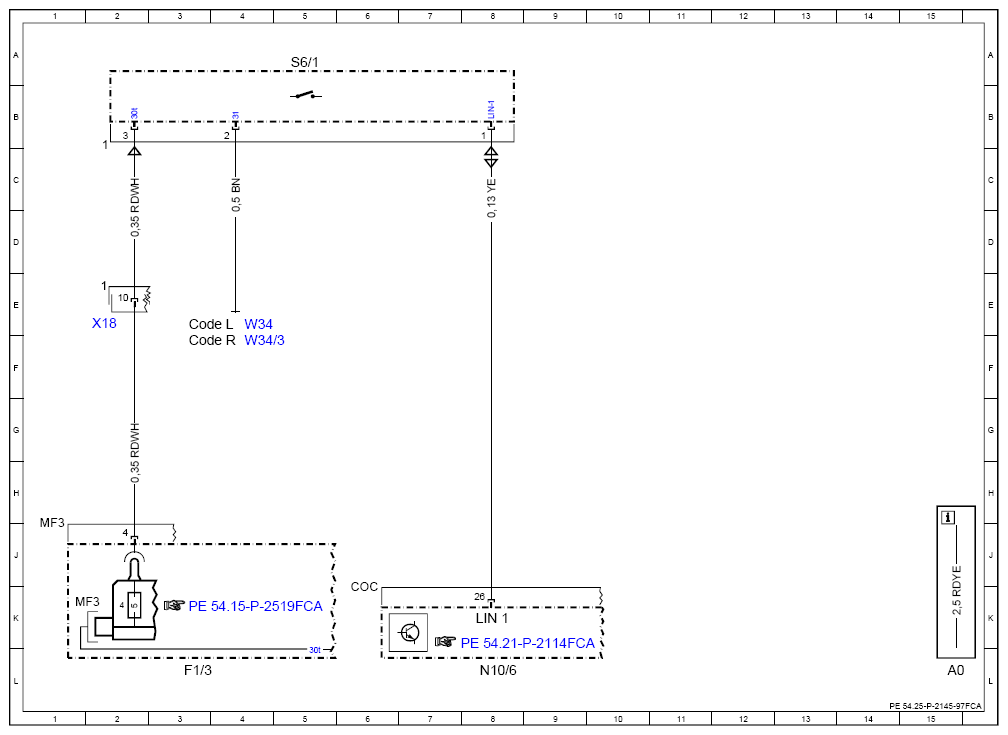

Model 253 (except 253.99) as of model year 2020 Switch S6/1 Model 253.99 as of model year 2019 with code 9O1 (Fuel cell pre-installation) Switch S6/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code L | LEFT-HAND DRIVE | 3E |
| Code R | RIGHT-HAND DRIVE | 3F |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF3 | Multiple fuse 3 | 2K |
| LIN 1 | Instrument panel LIN | 8K |
| N10/6 | Front SAM control unit | 8L |
| S6/1 | Driver-side instrument panel button group | 5A |
| W34 | Left footwell ground point | 4E |
| W34/3 | Right footwell ground point | 4F |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 2E |
