Remove/Install Outer Rear Wheel Well - Ar63.10-P-0665LF

Model 205.0/1/2/3

Model 217.3

Model 222 except code Z07 (B7 armoring on special protection version)

Model 253

Model 293

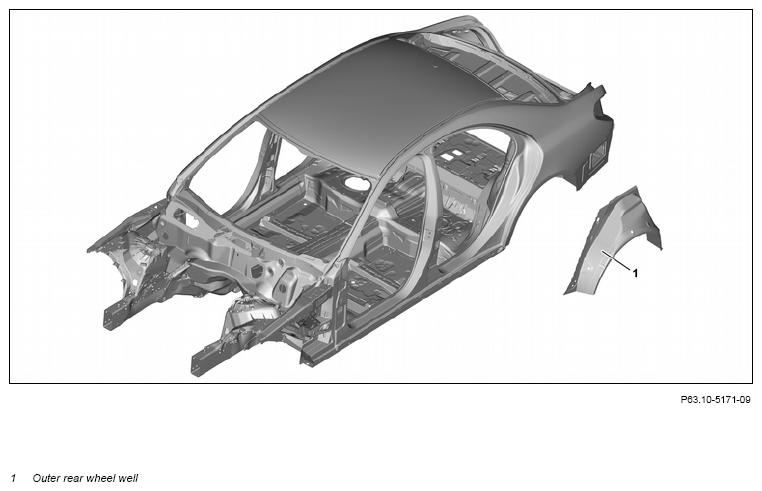

G12939159Courtesy of MERCEDES-BENZ USA

Shown on model 222

CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
See AS00.00-Z-0017-01A .
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. See AS00.00-Z-0010-01A .
  Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 205.0/1/2 Model 222
except code Z07 (B7 armoring on special protection version) Model 253
Model 293
AS00.00-Z-0035-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
See AS47.00-Z-0001-01A .
  General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   See AH00.00-Z-0300-01A .
  Information on preventing damage to electronic components due to electrostatic discharge   See AH54.00-P-0001-01A .
  Notes on battery   See AH54.10-P-0001-01A .
  General information on body repair   See AH60.00-N-0001-01A .
  Pretreatment of bonding surfaces   See AH60.00-P-0008-01SX .
  Notes on acoustic foam and structural foam in the vehicle Model 217.3
Model 222
except code Z07 (B7 armoring on special protection version)
AH60.00-P-0039-01A
  Notes on acoustic foam and structural foam in the vehicle Model 205.0/1/2/3 AH60.00-P-0039-01LW
  Notes on acoustic foam and structural foam in the vehicle Model 253
Model 293
See AH60.00-P-0039-01LWG .
  General information on MB materials   See AH98.00-P-9409-03A .
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blankets.
3 Remove rear fender. Model 253.3 See AR63.50-P-1401LWX .
    Model 205.0/1 AR63.50-P-1400LW
    Model 205.2, 253.9 See AR63.50-P-1400LWS .
    Model 293 AR63.50-P-1400CLW
    Model 205.3 AR63.50-P-1400LC
    Model 217.3
    Model 222
except code Z07 (B7 armoring on special protection version)
AR63.50-P-1400LF
4 Cut off outer rear wheel well (1).   See AR63.10-P-0660-01LF .
REFER TO SPECIAL TOOLS 000 588 00 84 00 Heat gun   See WS54.00-P-0049B .
    IMPORTANTCommercially available devices/tools
Round wire brush
Spot weld milling machine
Body power jigsaw
Wet/dry vacuum cleaner
1K-zinc dust paint
See *BR00.45-Z-1056-07A .
5 Prepare outer rear wheel well (1).   See AR63.10-P-0670-05LF .
    IMPORTANTCommercially available devices/tools
Round wire brush Body power jigsaw 1K-zinc dust paint
See *BR00.45-Z-1056-07A .
INSTALLING Install
  The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. See AS00.00-Z-0007-01A .
  Measures for preventing damage to components when performing electric welding and soldering work   See AH60.00-P-0001-02A .
  General information on riveting   See AH60.00-P-0003-01N .
6 Install and weld in outer rear wheel well (1).   See AR63.10-P-0670-06LF .
    Gap dimensions on hoods, doors and lids Model
205.0/1/2/3
Model 253
Model 293
See AR60.00-P-0700-01LW .
    Gap dimensions on hoods, doors and lids Model 217.3 AR60.00-P-0700-01LC
    Gap dimensions on hoods, doors and lids Model 222
except code Z07 (B7 armoring on special protection version)
AR60.00-P-0700-01LF
REFER TO SPECIAL TOOLS 000 588 01 84 00 Welder   See WS60.00-P-0021K .
REFER TO SPECIAL TOOLS 000 588 02 84 00 Welder   See WS60.00-P-0022K .
    IMPORTANTCommercially available devices/tools
Round wire brush
Manual temporary fastener 6.35 mm
Blind rivet gun (minimum pull-off force 19 kN)
Wet/dry vacuum cleaner
Model 293 Side piece to rear spoiler/liftgate
See *BE60.00-P-1015-01OA .
    Model 253.1/9 Sidewall to liftgate See *BE60.00-P-1013-01FA .
    1K-zinc dust paint See *BR00.45-Z-1056-07A .
    Model 205.2 Rear door to side section, bottom See *BE60.00-P-1010-01BB .
    Model 205.2 Sidewall to liftgate See *BE60.00-P-1021-01BB .
    Model 205.2 Outside of tail lamp to inside of tail lamp See *BE60.00-P-1022-01BB .
    Model 205.3 Front door to sidewall See *BE60.00-P-1007-01BB .
    Model 205.3 Trunk lid to fender at rear, top See *BE60.00-P-1012-01BB .
    Model 205.3 Rear fender to tail lamp See *BE60.00-P-1015-01BB .
    Model 253 Rear door to side piece See *BE60.00-P-1008-01FA .
    Model 293 Rear door to side piece See *BE60.00-P-1010-01OA .
    Model 253 Outside of tail lamp to inside of tail lamp See *BE60.00-P-1014-01FA .
    Model 293 Outside of tail lamp to inside of tail lamp See *BE60.00-P-1021-01OA .
    Model 217.3 Rear fender to tail lamp See *BE60.00-P-1008-01DA .
    Model 217.3 Front door to sidewall See *BE60.00-P-1005-01DA .
    Model 205.0/1 Rear door to side section, bottom See *BE60.00-P-1010-01BB .
    Model 205.0/1 Trunk lid to fender at rear, top See *BE60.00-P-1012-01BB .
    Model 222
except code Z07 (B7 armoring on special protection version) Rear door to side section, bottom
See *BE60.00-P-1012-01BA .
    Model 222
except code Z07 (B7 armoring on special protection version) Trunk lid to rear fender at top
See *BE60.00-P-1014-01BA .
    Parts kit for 2-component adhesive for body See *BR00.45-Z-1162-02A .
    White sealing compound, 310 ml, DBL 6069.20 See *BR00.45-Z-1003-01A .
    Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) See *BR00.45-Z-1035-13A .
    Repair solution for broken or missing weld studs See *BR00.45-Z-1037-13A .
    SPECIAL TOOL Feeler gauge See Fig 1.
7 Clean weld joints and sheet metal flange. IMPORTANTCommercially available devices/tools
Round wire brush

8 Install rear fender. Model 253.3 See AR63.50-P-1401LWX .
    Model 205.0/1 AR63.50-P-1400LW
    Model 205.2, 253.9
Model 293
See AR63.50-P-1400LWS .
    Model 205.3 AR63.50-P-1400CLW
    Model 217.3 AR63.50-P-1400LC
    Model 222
except code Z07 (B7 armoring on special protection version)
AR63.50-P-1400LF
9 Install detachable parts in the area of the repair point.
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3
BE60.00-P-1005-01DA Front door to sidewall Dimension "F6" mm 3, 5 (±1, 0)
- AR60.00-P-0700-01LC
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3
BE60.00-P-1007-01BB Front door to sidewall Dimension "H1" mm 3, 5 (±0, 5)
For picture, See AR60.00-P-0700-01LW .
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 217.3
BE60.00-P-1008-01DA Rear fender to tail lamp Dimension "F9C" mm 1, 0 (±0, 5)
- AR60.00-P-0700-01LC
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3 Model 253.1/9
BE60.00-P-1008-01FA Rear door to side piece Dimension "I" mm 3, 5 (± 0, 5) 3, 5 (±0, 5)
For picture, See AR60.00-P-0700-01LW . See AR60.00-P-0700-01LW .
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1010-01BB Rear door to side section, bottom Dimension "I" mm 3, 5 (± 0, 5) 3, 5 (± 0, 5)
For picture, See AR60.00-P-0700-01LW . See AR60.00-P-0700-01LW .
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1010-01OA Rear door to side piece Dimension "G" mm 3, 5 (±0, 5)
- -
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1012-01BA Rear door to side section, bottom Dimension "I" mm 4 (±0, 5)
- AR60.00-P-0700-01LF
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.3
BE60.00-P-1012-01BB Trunk lid to fender at rear, top Dimension "K" mm 3, 5 (+0, 5/-1) 3, 5 (±1)
Dimension "K1" mm - 4 (+1, 5/-1)
For picture, See AR60.00-P-0700-01LW . See AR60.00-P-0700-01LW .
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.1/9
BE60.00-P-1013-01FA Sidewall to liftgate Dimension "S" mm 4, 0 (±1, 5)
For picture, See AR60.00-P-0700-01LW .
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 222
BE60.00-P-1014-01BA Trunk lid to rear fender at top Dimension "K" mm 3, 5 (±1)
- AR60.00-P-0700-01LF
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3 Model 253.1/9
BE60.00-P-1014-01FA Outside of tail lamp to inside of tail lamp Dimension "T" mm 3, 5 (+1, 5/-1) 3, 5 (+1, 5/-1)
For picture, See AR60.00-P-0700-01LW . See AR60.00-P-0700-01LW .
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3
BE60.00-P-1015-01BB Rear fender to tail lamp Dimension "N" mm 1 (±1)
For picture, See AR60.00-P-0700-01LW .
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1015-01OA Side piece to rear spoiler/liftgate Dimension "L1" mm 3, 5 (-0, 5/+1)
Dimension "L2" mm 3, 5 (± 1)
- -
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1021-01BB Sidewall to liftgate Dimension "S" mm 3, 5 (± 0, 8)
For picture, See AR60.00-P-0700-01LW .
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1021-01OA Outside of tail lamp to inside of tail lamp Dimension "O" mm 4, 5 (-1/+1, 5)
- -
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.2
BE60.00-P-1022-01BB Outside of tail lamp to inside of tail lamp Dimension "T" mm 3, 8 (±1, 0)
For picture, See AR60.00-P-0700-01LW .
Fig 1: Feeler Gauge (129 589 03 21 00)
G11129153Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1035-13A Blind rivet 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1037-13A Repair solution for broken or missing weld studs A 000 990 12 10
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
