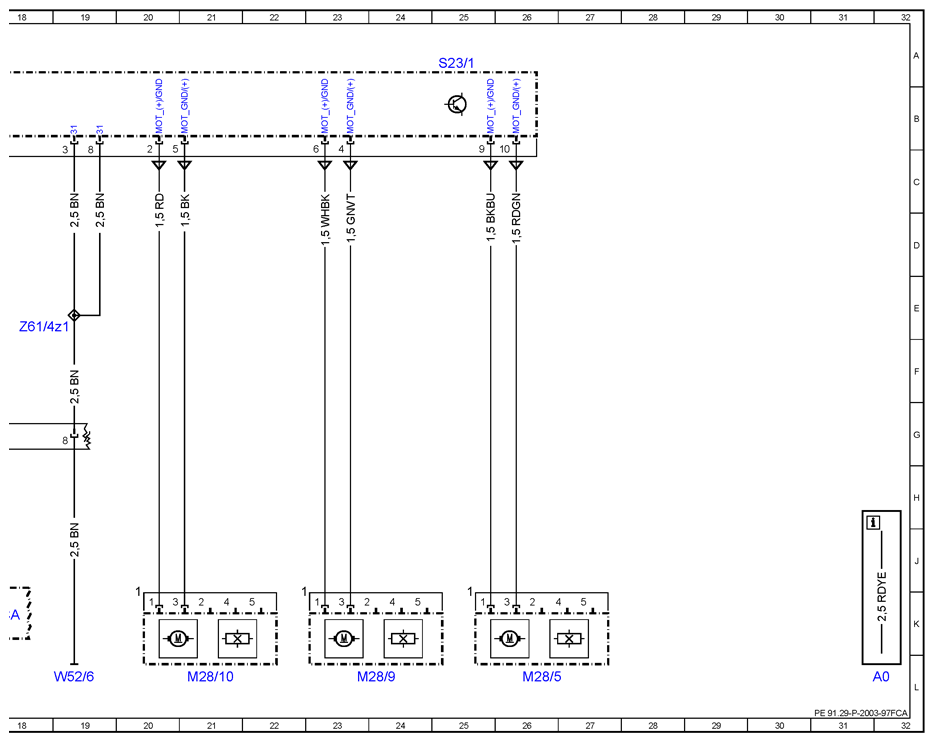

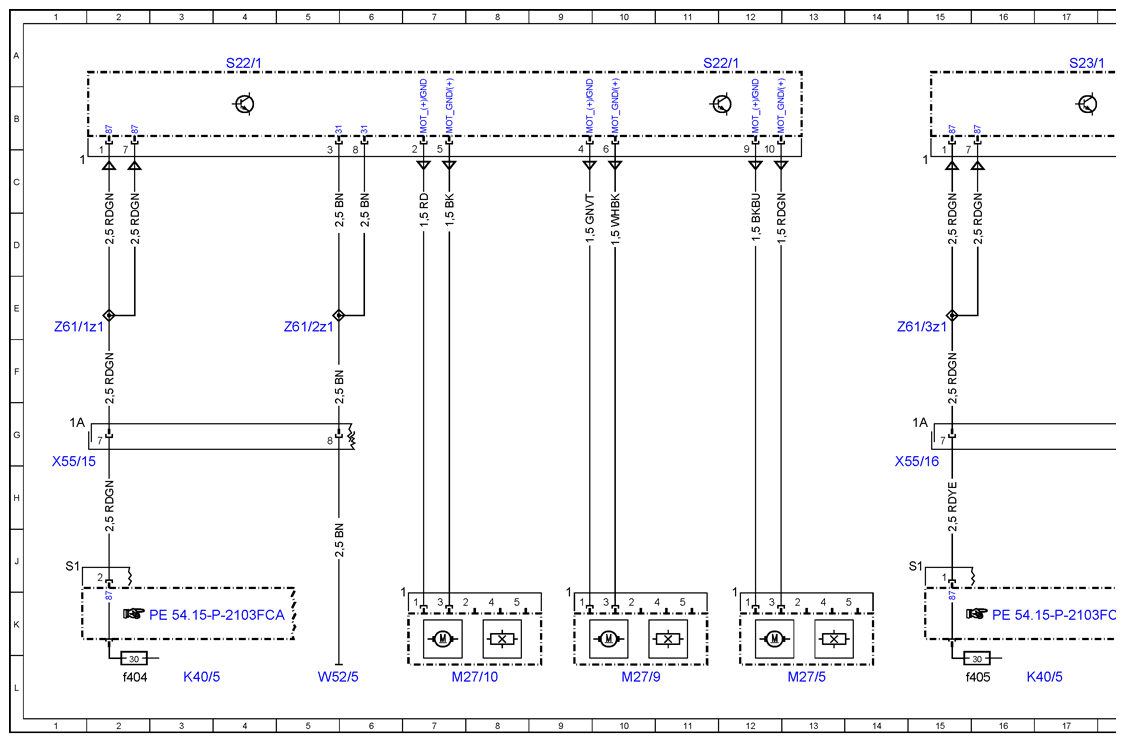

Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97FCA
Model 253 (except 253.99) as of model year 2020 with code P65 (Seat comfort package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| K40/5 | Rear fuse and relay module | 17L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f404 | Fuse 404 | 2L |
| K40/5f405 | Fuse 405 | 15L |
| M27/10 | Driver seat height adjustment motor | 7L |
| M27/5 | Driver seat backrest inclination adjustment motor | 13L |
| M27/9 | Seat inclination adjustment motor, driver seat | 10L |
| M28/10 | Front passenger seat height adjustment motor | 21L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 26L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 23L |
| S22/1 | Driver seat partially electric seat adjustment switch | 4A |
| S22/1 | Driver seat partially electric seat adjustment switch | 11A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 17A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 25A |
| W52/5 | Left center longitudinal member ground point | 5L |
| W52/6 | Right center longitudinal member ground point | 19L |
| X55/15 | Driver seat electrical connector | 1H |
| X55/16 | Front passenger seat electrical connector | 15H |
| Z61/1z1 | Left front seat circuit 30 connector sleeve | 1E |
| Z61/2z1 | Left front seat circuit 31 connector sleeve | 5E |
| Z61/3z1 | Right front seat circuit 30 connector sleeve | 15E |
| Z61/4z1 | Right front seat circuit 31 connector sleeve | 18E |
