Automatically Regulated All-Wheel Drive (4Matic) Torque Distribution - GF28.00-P-0001-02AVJ

Model 253 with transmission 725.096

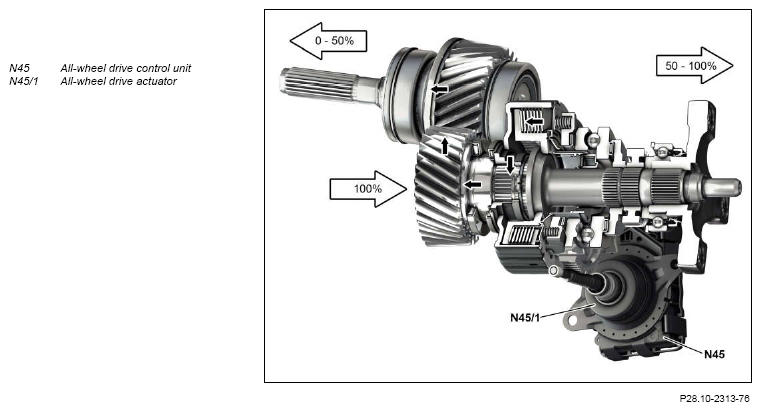

Torque distribution in transfer case

Courtesy of MERCEDES-BENZ USA

Closing the multi-disk clutch causes up to 50 % of the drive torque to be distributed to the front axle transmission output.
