Drain/Fill Rear Axle Gear Oil - AR35.31-P-0523LW

Model 205 (except 205.387/486/487), 253 (except 253.388/389/988/989/992/993)

G12819618Courtesy of MERCEDES-BENZ USA
G12819619Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Drain
1 Raise vehicle   AR00.60-P-1002LWG

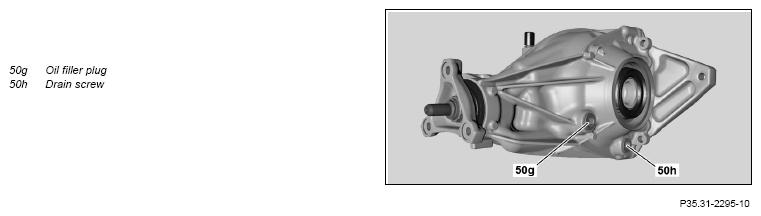

2 Clean area surrounding oil filler screw (50g) and drain plug (50h) Assembly cleaner *BR00.45-Z-1028-04A
3 Remove oil filler screw (50g)
4 Unscrew drain plug (50h) and collect rear axle gear oil in a suitable container
CLEANING Clean
5 Clean new oil filler screw (50g) and new drain plug (50h) with cleaning spray Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
6 Clean threaded holes of oil filler screw (50g) and drain screw (50h) in rear axle differential using cleaning spray Loctite 7063 cleaning spray (150 ml) *BR00.45-Z-1046-04A
  Fill

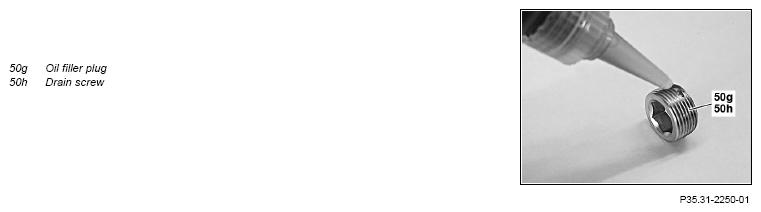

7 Apply one drop of sealant to the lower third of the thread on the drain plug (50h) Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
8 Screw in and tighten drain plug (50h) TORQUE SPECIFICATION Drain screw to rear axle differential *BA35.31-P-1003-02H
9 Pour rear axle differential oil into rear axle differential using hand pump FLUID SPECIFICATION Model 253 (except 253.388/389/988/989/992/993) except code 700 (Technology Local Content China) Filling capacity *BF35.31-P-1001-02B
    FLUID SPECIFICATION Model 253 (except 253.388/389/988/989/992/993) with code 700 (Technology Local Content China) Filling capacity *BF35.31-P-1002-02B
    FLUID SPECIFICATION Model 205 (except 205.086/087/286/287/386/387/486/487) FE rear axle differential filling capacity BF35.31-P-1001-01U
    FLUID SPECIFICATION Model 205 (except 205.086/087/286/287/386/387/486/487) ALU rear axle differential filling capacity BF35.31-P-1002-01U
    FLUID SPECIFICATION Model 205.086/087/286/287 Filling capacity for rear axle differential with differential lock BF35.31-P-1003-01U
    FLUID SPECIFICATION Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China) Filling capacity BF35.31-P-1004-01U
    SPECIAL TOOL Hand pump Fig 1
10 Apply one drop of sealant to the lower third of the thread on the oil filler screw (50g) Sealant, Omnifit 100H (50 g) *BR00.45-Z-1061-01A
11 Screw in and tighten oil filler screw (50g) TORQUE SPECIFICATION Oil filler screw of rear axle differential *BA35.31-P-1002-02H
12 Check rear axle differential for leak tightness
13 Lower vehicle   AR00.60-P-1002LWG
REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 205 Model 253
BA35.31-P-1002-02H Oil filler screw of rear axle differential Nm 50 50
REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 205 Model 253
BA35.31-P-1003-02H Drain screw to rear axle differential Nm 50 50
REAR AXLE GEAR

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Technology Local Content China) Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China)
BF35.31-P-1001-01U FE rear axle differential filling capacity FE HAG187 Liter 0, 85 -
Specification BB00.40-P-0235-07A -
FE HAG200 Liter 1, 0 -
Specification BB00.40-P-0235-07A -
FE HAG215 Liter 1, 1 -
Specification BB00.40-P-0235-07A -
FE HAG225 Liter 1, 3 -
Specification BB00.40-P-0235-07A -
REAR AXLE GEAR

Number Designation Model 253 (except253.388/389/988/989/992/993) except code 700 (Technology Local Content China)
BF35.31-P-1001-02B Filling capacity ALU rear axle differential 183   Liter 0, 8
Specification BB00.40-P-0239-71A
ALU rear axle differential 197   Liter 0, 9
Specification BB00.40-P-0239-71A
ALU HAG205   Liter 1, 0
Specification BB00.40-P-0239-71A
REAR AXLE GEAR

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Technology Local Content China) Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China)
BF35.31-P-1002-01U ALU rear axle differential filling capacity ALU HAG183 0, 8 -
Specification BB00.40-P-0239-71A -
REAR AXLE GEAR

Number Designation Model 253 (except253.388/389/988/989/992/993) with code 700 (Technology Local Content China)
BF35.31-P-1002-02B Filling capacity Rear axle differential 200 C   Liter 1, 0
Specification BB00.40-P-0235-07A
REAR AXLE GEAR

Number Designation Model 205.086/087/286/287/386/387/486/487
BF35.31-P-1003-01U Filling capacity for rear axle differential with differential lock Liter 1, 2
Specification BB00.40-P-0235-61A
REAR AXLE GEAR

Number Designation Model 205 (except 205.086/087/286/287/386/387/486/487) with code 700 (Technology Local Content China)
BF35.31-P-1004-01U Filling capacity Rear axle differential 200 C 1, 0
Overview of specified transmission oils BB00.40-P-0231-01A
References, approved axle gear oils BB00.40-P-0235A
Fig 1: Identifying Hand Pump (210 589 00 71 00)
G07742725Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner Adolf Wurth GmbH & Co. KG
BR00.45-Z-1046-04A Loctite 7063 cleaning spray (150 ml) A 001 986 71 71 10
BR00.45-Z-1061-01A Sealant, Omnifit 100H (50 g) A 002 989 23 71
