Remove/Install Steering Wheel - AR46.10-P-0100LW

Model 205

Model 213

Model 238

Model 253, 293

Courtesy of MERCEDES-BENZ USA

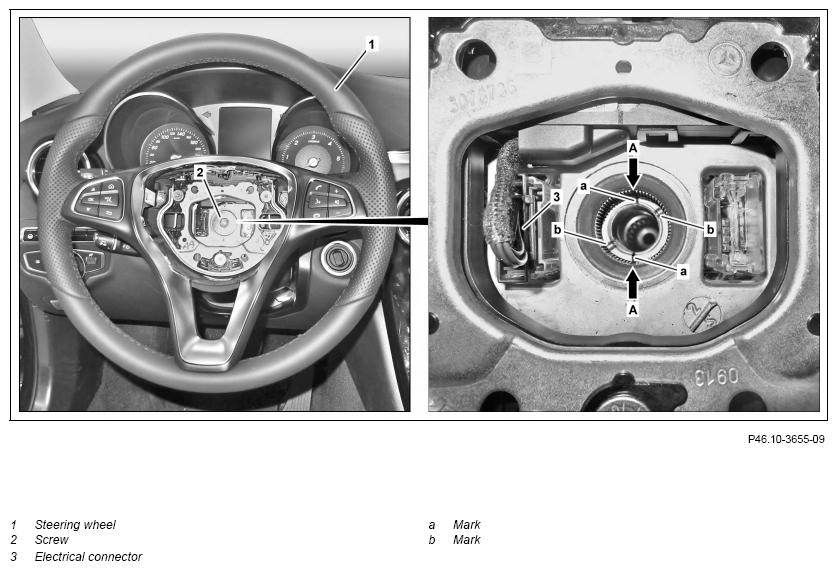

Shown on model 205

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Turn steering wheel (1) to center position.	The front wheels must be in the straight-ahead position.
2	Remove airbag unit from steering wheel (1).		AR91.60-P-0660LW
3	Counterhold steering wheel (1) and remove bolt (2).	: Reuse screw (2) and mark with a non-water-soluble pen (color dot).
		Screw/bolt, steering wheel to steering shaft If the bolt (2) already bears a marking (color dot) ↓ replace the bolt (2).	*BA46.10-P-1001-02J
4	Release and disconnect electrical connection (3).
5	Remove steering wheel (1).	Model 205-### 1# Model 213-### 1# Model 238-### 1# Model 253-### 1#, 293-### 1# Installation:  Align recesses of the splines (arrows A) in steering wheel (1) with the markings (a) on the steering shaft. Model 205-### 2# Model 213-### 2# Model 238-### 2# Model 253-### 2#, 293-### 2# Installation:  Align recesses of the splines (arrows A) in steering wheel (1) with the markings (b) on the steering shaft.
6	Install in the reverse order.
